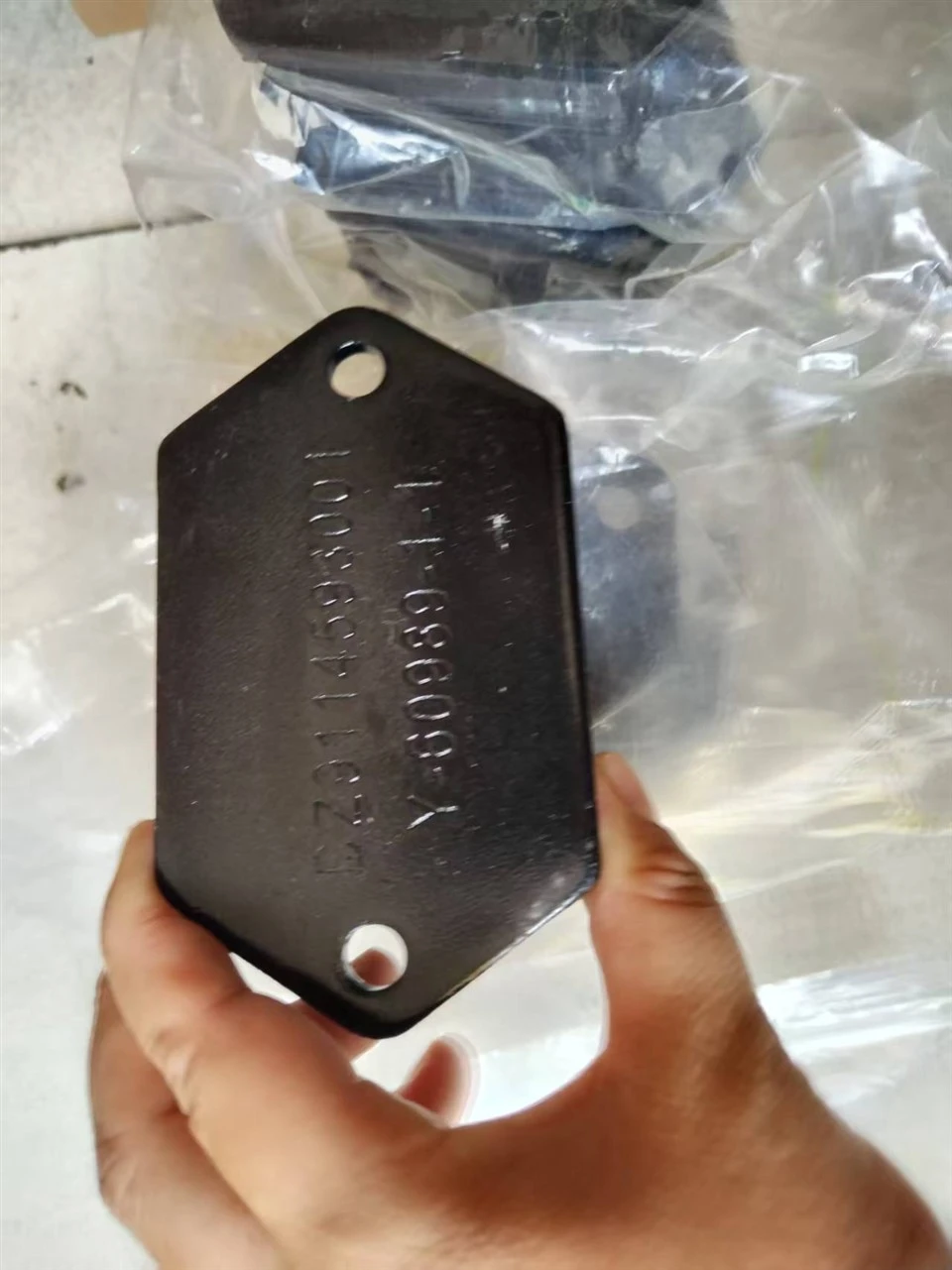

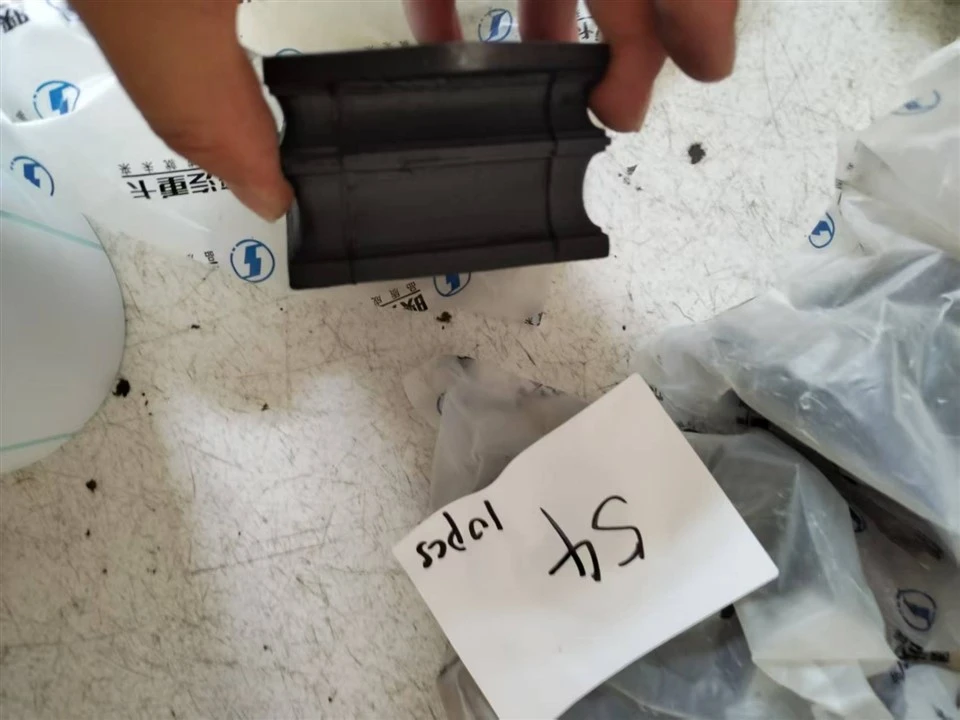

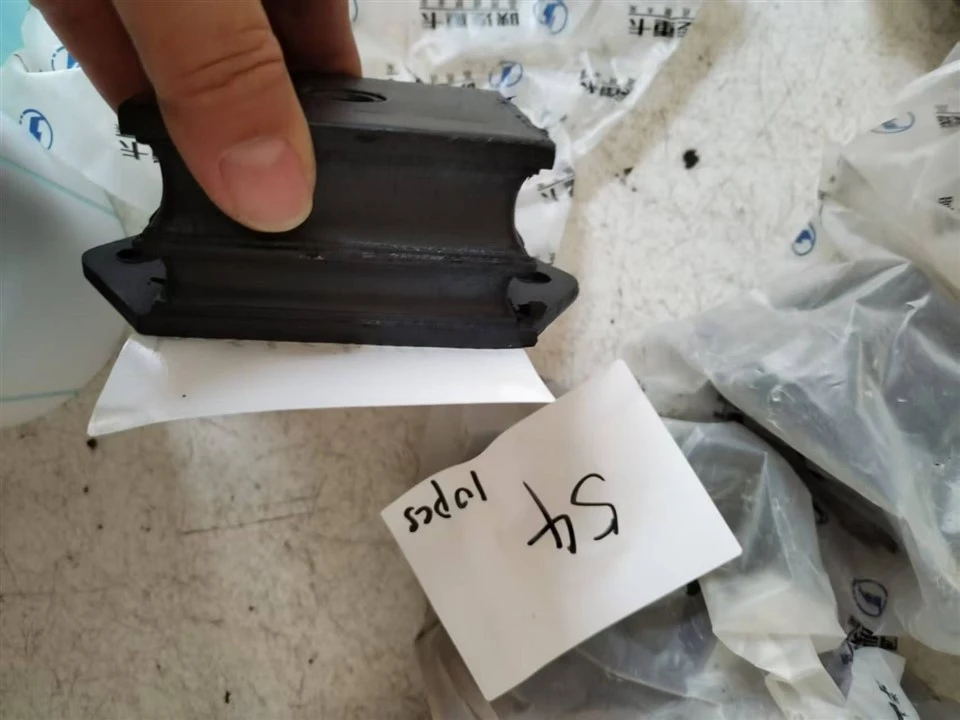

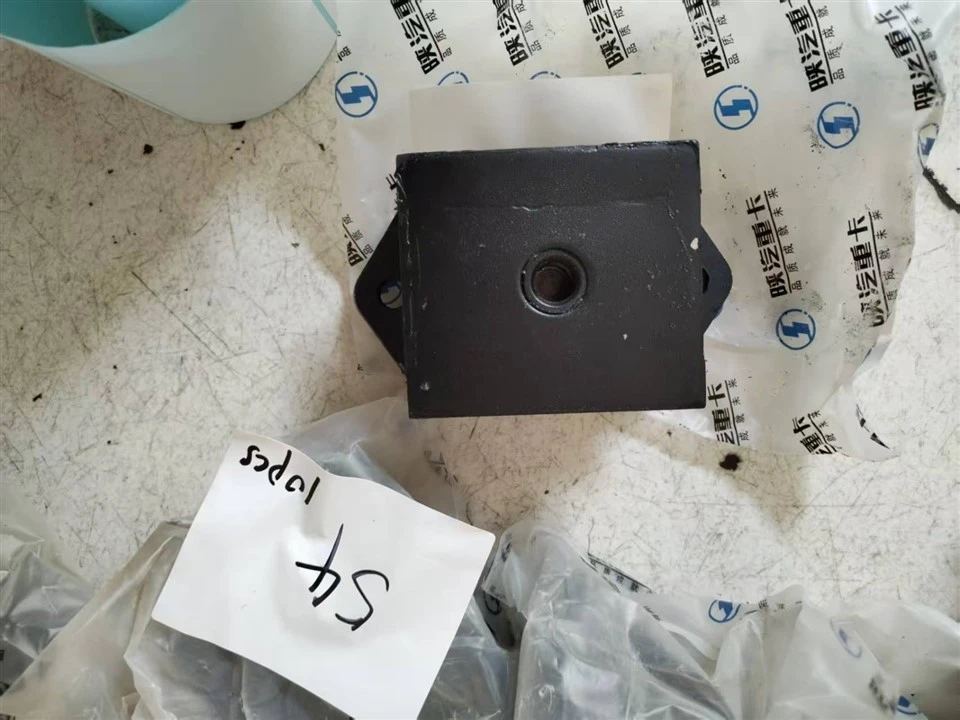

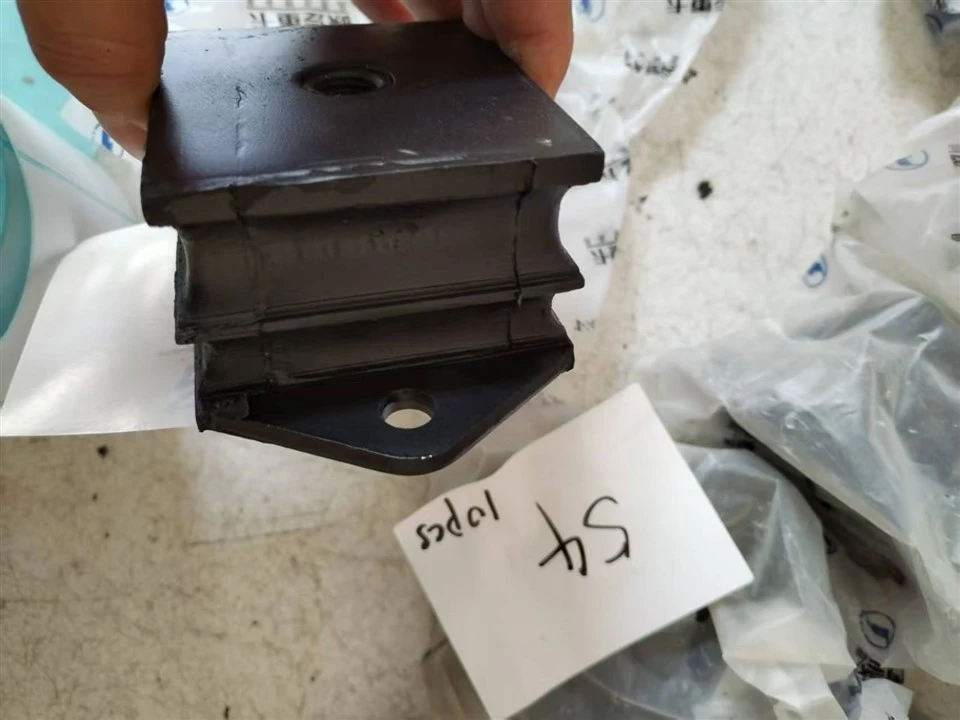

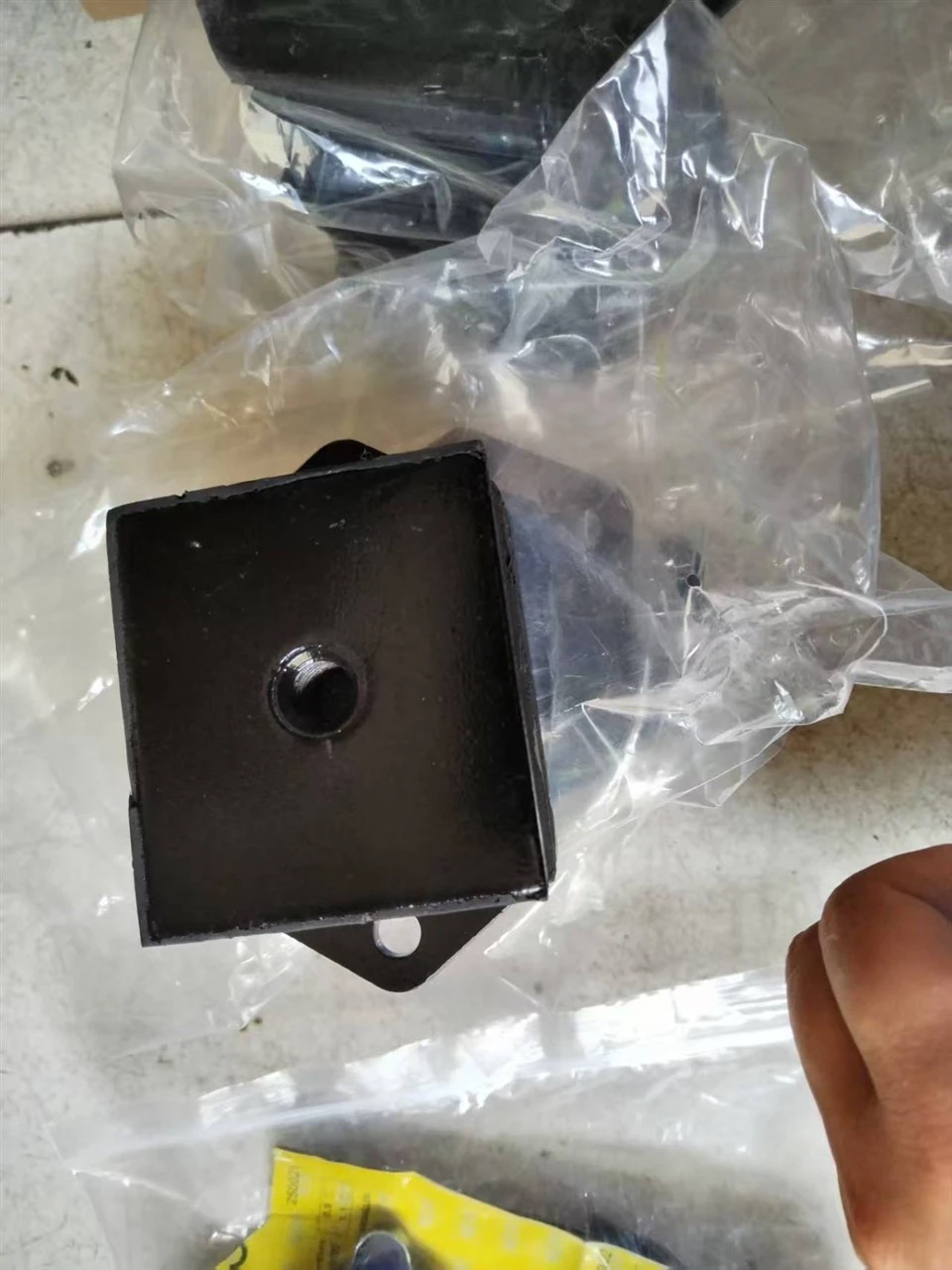

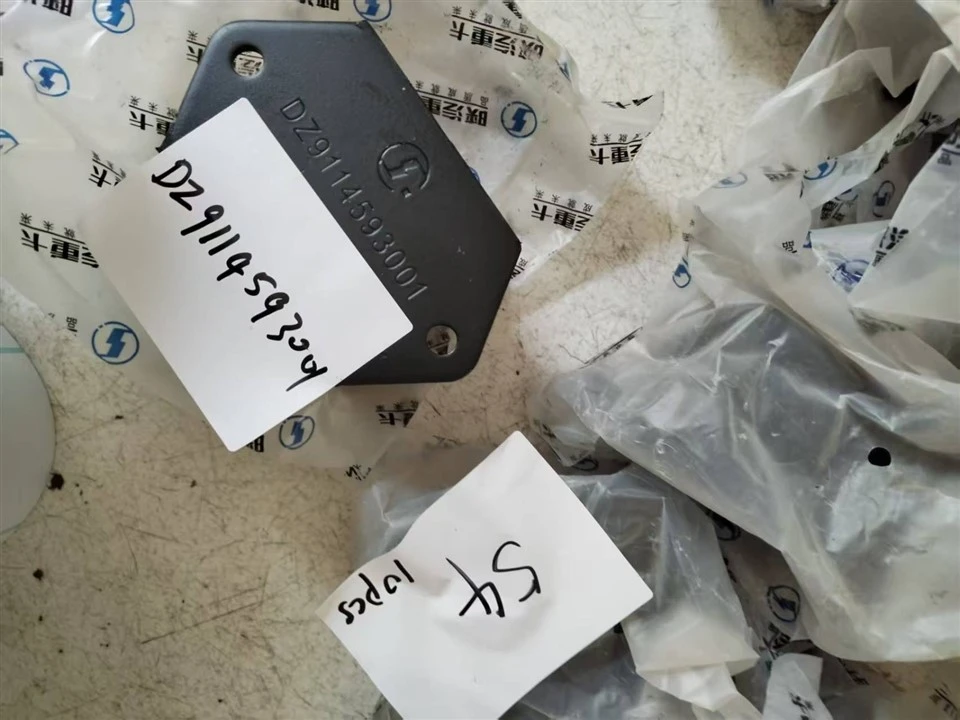

Part Number: DZ9114593001 (Engine Front Mounting Cushion)
Product Name: Engine Front Support, Front Claw Pad, Front Mounting Shock Absorber Cushion
Compatible Vehicles: Shaanxi Auto DeLong F3000, Older Model M3000 Tractors, Dump Trucks, Concrete Mixers; Compatible with Weichai WP10 / WP12 Engines
Structure: Cast iron base + multi-layer corrugated natural rubber integrated vulcanization; The base has 2 fixed bolt holes and a threaded hole inside the center, which can be directly installed at the front end of the engine.
Net weight: Approximately 4.2kg; The center distance of the installation holes is 94mm, and the hole diameter is 12mm.
Metal-rubber high-temperature vulcanization integrated unit, bearing the weight of the engine's front end, isolating the vibrations generated during engine idling and acceleration;
Multi-layer corrugated rubber structure, balancing the bearing stiffness and shock absorption, reducing the shaking of the cab.
Limit the forward and backward, as well as left and right movements of the engine to prevent it from jerking violently and pulling the pipelines and wiring harnesses.
FAQ
Q: Which truck does this mount cushion fit?
A: It is front engine mount for SHACMAN F3000 and old M3000 heavy‑duty truck. NOT compatible with X3000 / H3000 / X5000. For X3000 series, front mount OE number is DZ97259590207. One truck needs 2 pcs front mount DZ9114593001 plus 2 pcs rear mount DZ9114598319.
Q: What is the product structure?
A: Integral vulcanized cast iron base and multi‑fold high‑strength natural rubber. Two mounting holes on base, inner threaded hole at center for engine installation.
Q: What are typical failure symptoms?
A: Severe cab and steering wheel shaking at idle (rubber aging, inner crack or delamination).
Rubber crack, bulge or metal‑rubber debonding caused by overload, high temperature or oil contamination.
Metal collision noise due to broken cushion and engine offset.
Engine oil / diesel fuel will accelerate rubber aging and swelling
Q: Any interchangeable OE part number?
A: DZ9114593001 is unique OE number. Reinforced upgraded version keeps the same part number.
