1. Fine filtration of diesel: Remove tiny impurities, fine particles and gums from the diesel; filtration accuracy is 30μm.
2. Protect the injector and high-pressure common rail oil pump: The precision components of the common rail system are easily scratched by tiny particles, and once worn, it will cause insufficient power, excessive fuel consumption, damage to the injector nozzle, and the maintenance cost is very high.
3. Assist in retaining a small amount of residual moisture (note: it is a fine filter, not an oil-water separator, and cannot replace the coarse filter / water separation filter element).
4. Maintain the cleanliness of diesel, stabilize engine power, and reduce the risk of exceeding emission standards.

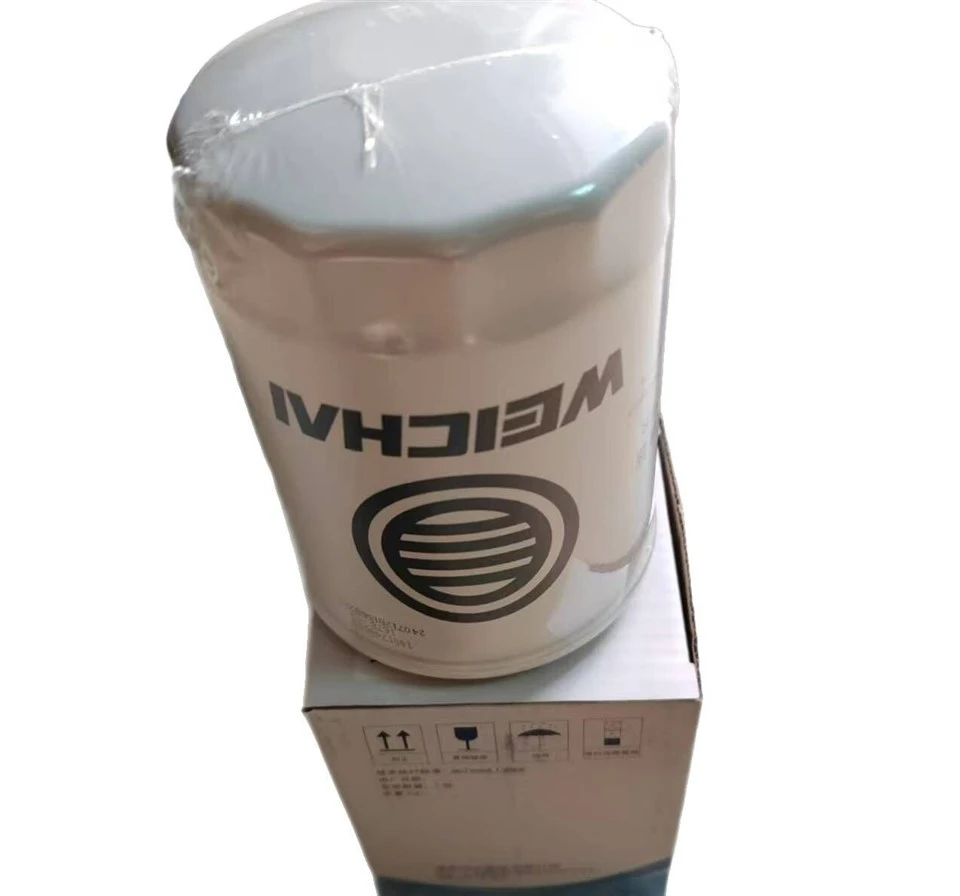

Model: BY1000442956 (CLX-602A, equivalent to 1000442956 / 1000442956A)
Structure: Screw-on disposable filter element, **threaded base installation**, simply screw in for replacement, no need to disassemble the housing
Shell: Cold-rolled steel, inner core composite filter paper
Dimensions: Outer diameter 95mm, height approximately 188mm
Weight: Approximately 0.85 - 1.0kg
Operating temperature: -40℃ ~ +120℃
Regular: 20,000 kilometers. In harsh construction sites / in environments with poor-quality fuel, it is shortened to 10,000 kilometers.
FAQ
Q: Which engines & trucks fit?
A: For Weichai WP10, WP12, WD615 engines.
Fit Shacman Delong New M3000, F3000, X3000, H3000; also suitable for HOWO, wheel loaders with same Weichai engines.
Q:Where to install?
A: Installed on fuel pipeline, after fuel water separator and before high pressure fuel pump, secondary fine filtration of diesel fuel.
Q: What is its function?
A:1.Filter fine solid particles and colloid in diesel, filtration precision 30 micron.
2. Protect high pressure common rail pump and fuel injectors from scratch and damage.
3. Stabilize engine power, reduce fuel consumption and exhaust emission risk.
Note: It is fine filter, NOT water separator, cannot replace primary water separating filter.
Q: Common failure & replacement cycle
A: Clogging will cause weak power, hard starting. Broken filter paper leads to costly damage of injector and fuel pump.
Normal replacement cycle: 20,000km; shorten to 10,000km under poor fuel / dusty site condition.
