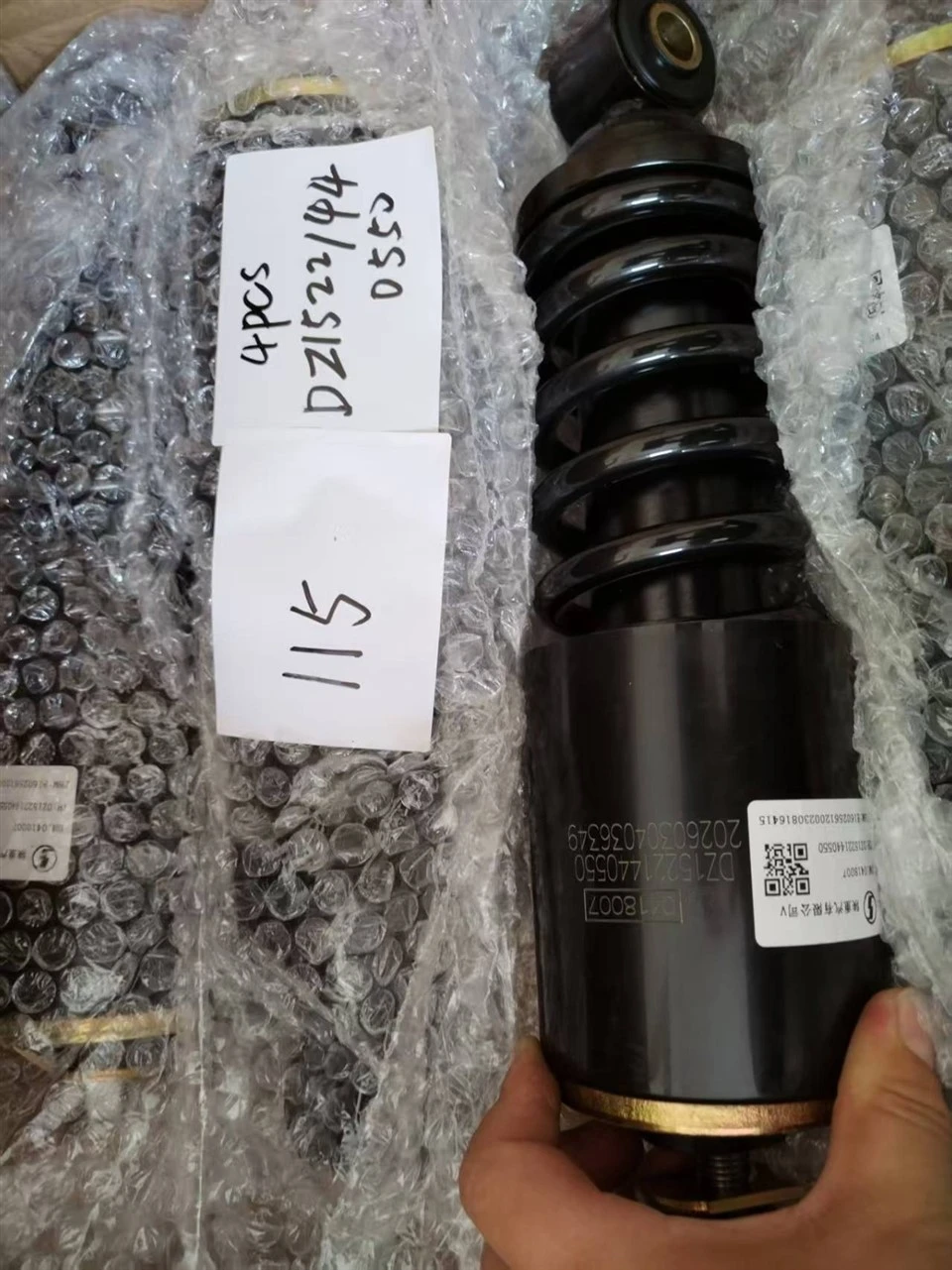

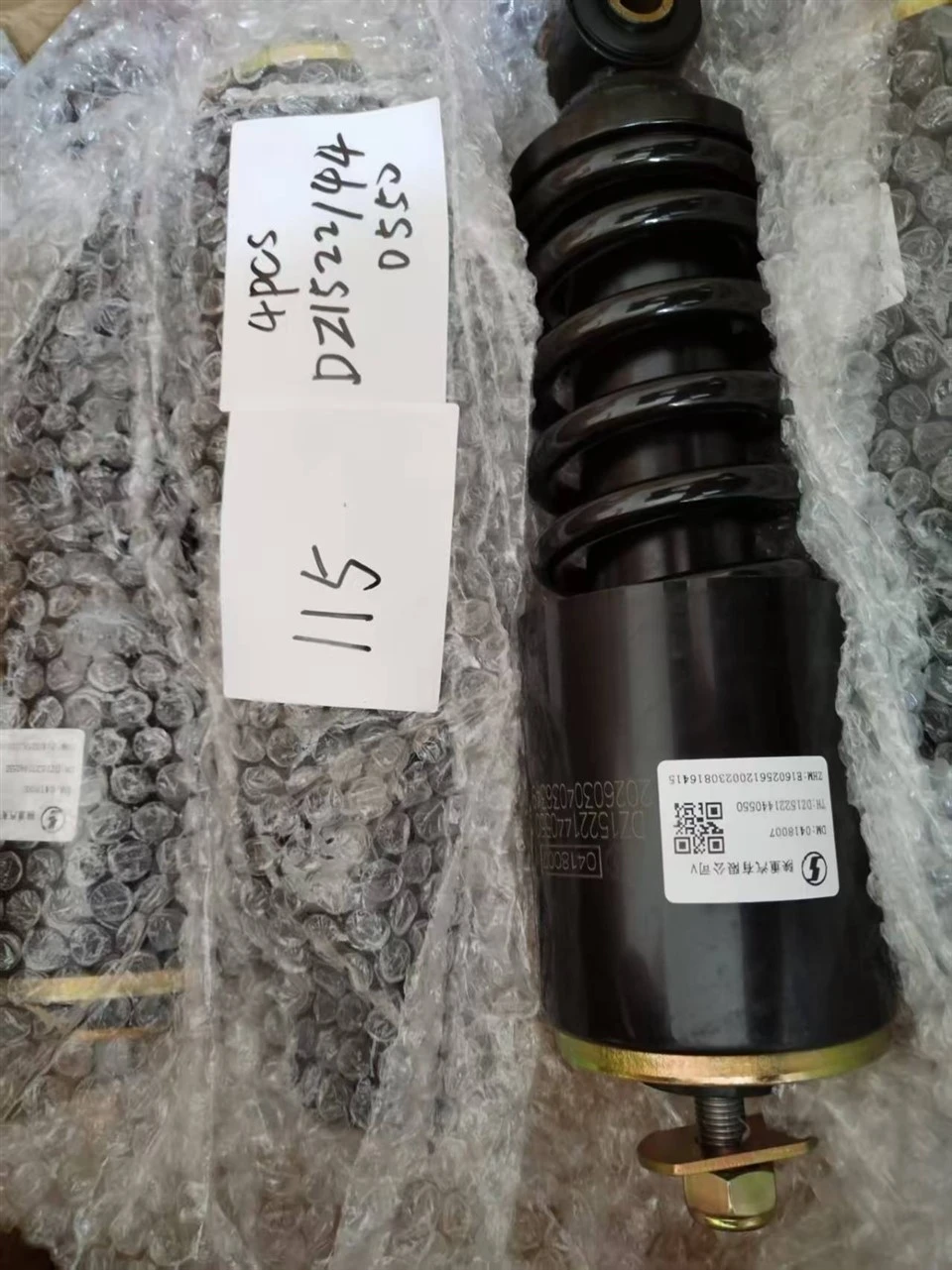

Shacman L3000 Cab rear shock absorber assembly DZ15221440550
Hydraulic damping cylinder core: Oil pressure shock absorption core, reducing bouncing;
External spiral compression spring: Bearing the weight of the cab, providing rebound support;
Two-ended hinged bushing: Upper end bolt hole hanger; Lower end rubber bushing eyelet hole, directly fixed by bolt, complete set replacement, not sold separately as spring / core
Key installation parameters
• Type: Spring-hydraulic integrated shock absorber (without airbag)
• Installation method: Hinged support at both ends, fixed with through-hole bolts on top and bottom
• Installation holes: Threaded hanger at the top; Rubber bushing hole at the bottom
Work itinerary: L3000 driver's cabin-specific itinerary,
• Weight: Approximately 6.2 - 6.5 kg per unit
• Number of units for single installation: 2 units per driver's cabin (1 on each side)
product key technologies
Replacement Tutorial
Part: Hydraulic integrated shock absorber assembly for rear suspension of cab (universal for both left and right sides, the spring and damping cylinder cannot be separated, the entire set needs to be replaced, no spring compressor required)
Installation location: Rear of the cab, cab - rear suspension bracket of the frame, 1 unit each on the left and right; not chassis wheel shock absorber, but cab suspension shock absorber
Tool List
17/19/22 Socket, Torque Wrench, Ratchet Wrench, Rust Remover, Copper-Based Lubricant, Safety Bracket (Required)
Precautions for Pre-Operation Safety
1. Park the vehicle on a flat and hard surface, and engage the handbrake;
2. Do not lift and flip the cab; keep it in its normal position;
3. Before operation: Check for any cracks or deformations in the rear suspension limit block, buffer rubber block, and bracket; If the bracket is deformed, repair it first and then replace the shock absorber;
4. If the bolts are rusted and stuck: Spray rust remover and let it stand for a while. Do not forcefully twist them; Prevent the bolts from breaking inside the bracket hole.
Shacman L3000 Cab rear shock absorber assembly DZ15221440550
Disassembly steps (single side)
1. Drill into the rear of the frame and the rear of the cab to find the shock absorber assembly: the upper end is fixed to the rear suspension bracket of the cab, and the lower end is fixed to the rear suspension bracket of the frame.
2. Remove the lower end connecting bolts and nuts first: loosen the lower end through bolts and nuts, and withdraw the bolts.
3. Then remove the upper end hanger fixing bolts and nuts, and withdraw the upper end bolts.
4. The old shock absorber can be directly removed outward.
Installation steps (reverse assembly)
1. Verify the part number of the new component: DZ15221440550; Check that the rubber sleeves at both ends of the new shock absorber are intact and free from scratches or cracks.
2. Apply a thin layer of copper-based lubricating grease on the threaded part of the bolts to prevent rust and seizing in the future.
3. First, position the shock absorber assembly, then attach the upper bolts and put on the nuts (do not tighten them yet).
4. Align the lower bracket holes, insert the lower through bolts, and put on the nuts.
Key point: Bolt insertion direction: The bolt is inserted from the inside out, with the nut on the outside, maintaining the same direction as the original vehicle.
