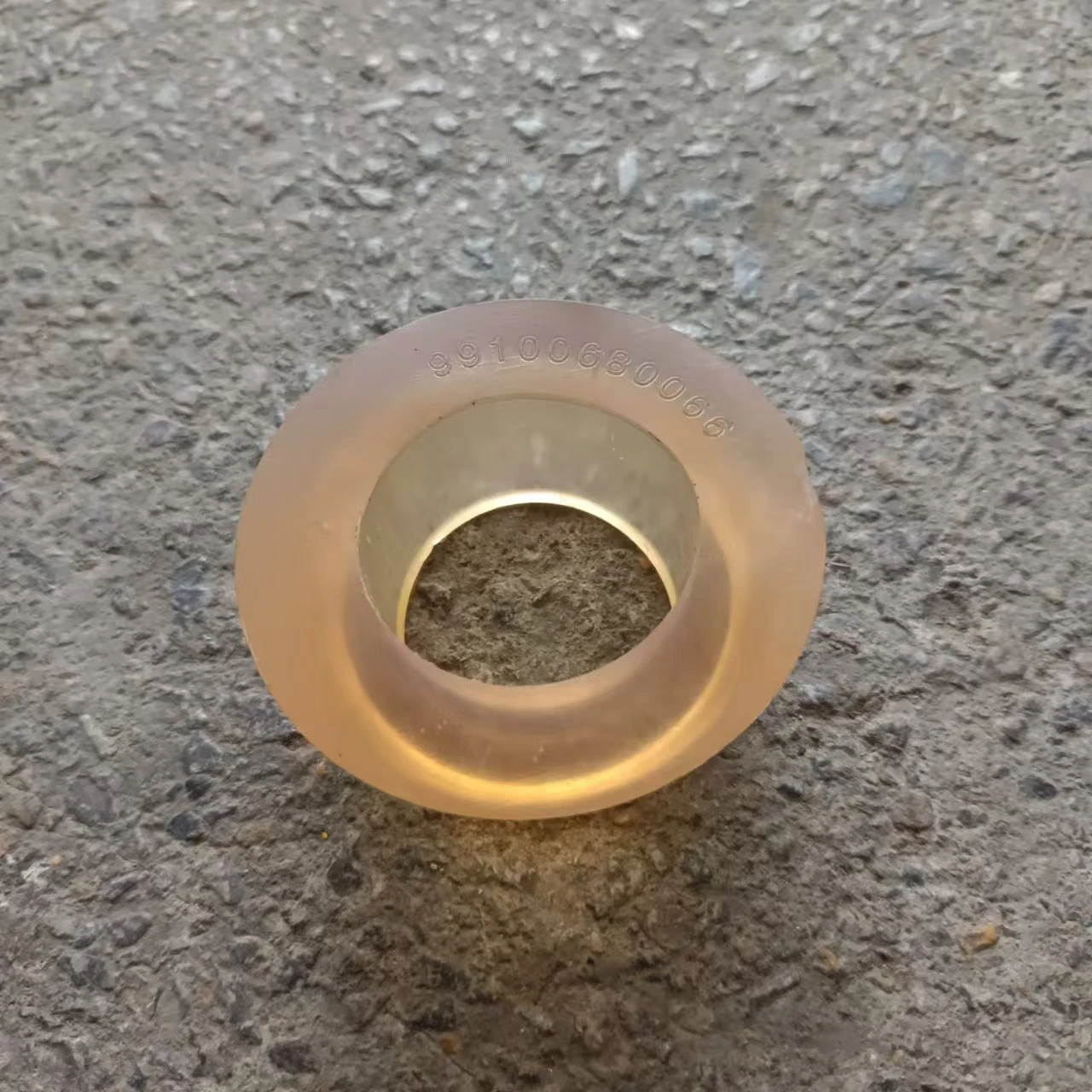

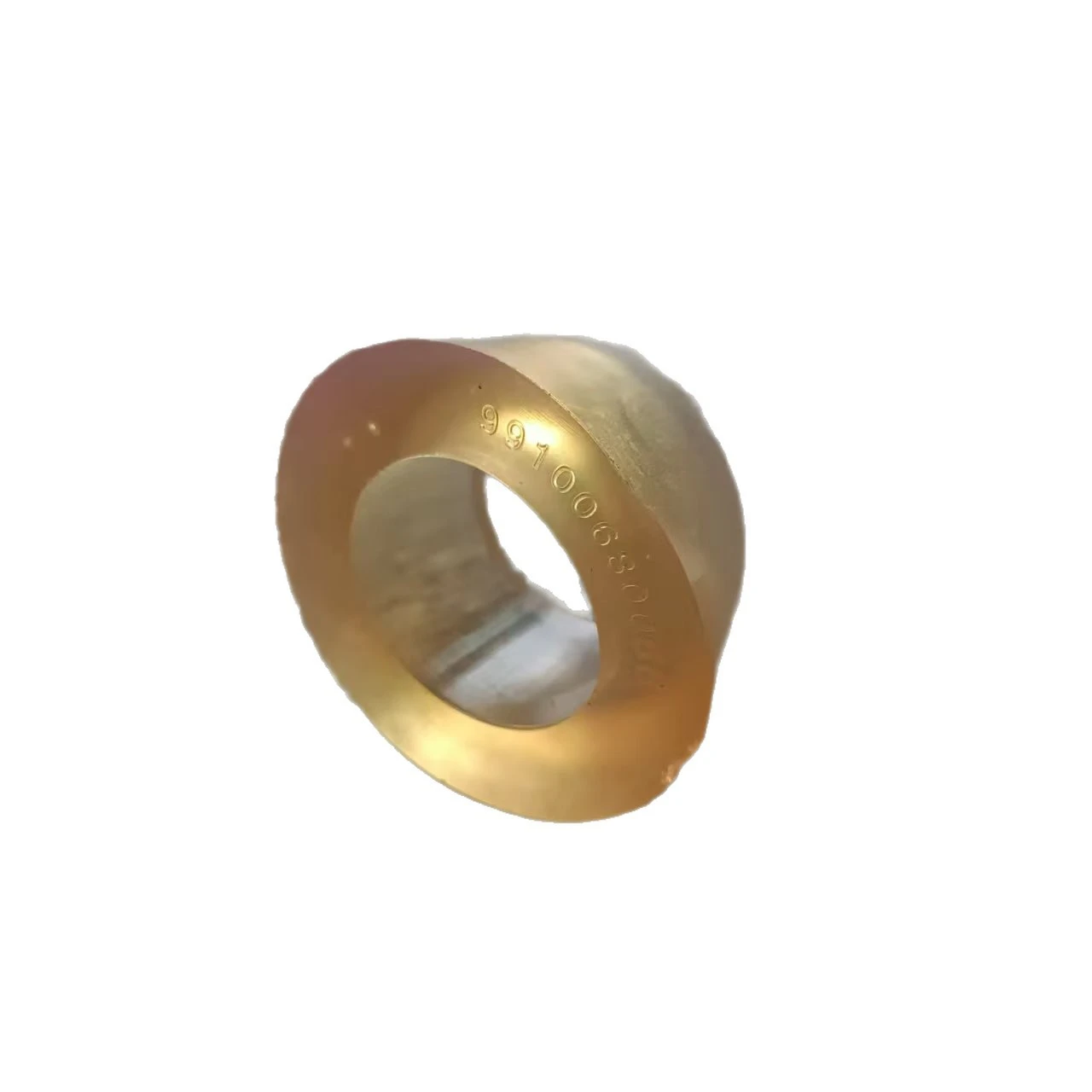

Sinotruck A7 rear stabilizer spring bushing 99100680066 balance rod bushing
1. Flexible hinge: As an elastic connecting component between the rear stabilizer bar and the bracket, it allows the stabilizer bar to rotate slightly while restricting excessive displacement.
2. Suppressing roll: In combination with the stabilizer bar, it reduces the vehicle's body roll during, enhancing driving stability.
3. Shock absorption and noise reduction: Absorbing road impacts and vibrations, isolating hard collisions between metal parts, and eliminating abnormal noises such as "creaking" and "clattering" from the chassis.
4. Protecting chassis components： Buffering loads, reducing wear and fatigue damage to the stabilizer bar, bracket, and frame.
Characteristics
1. Conical structure: Conical shape, well-secured during assembly, evenly distributed force, and unlikely to come off.
2. Suitable for heavy-duty conditions: Specifically designed for Haowo A7 6×2 rear lifting axle tractor, capable of withstanding heavy loads.
3. Elastic buffering: Rubber material has inherent elasticity, balancing support force and buffering performance.
4. Direct replacement: OEM standard size, easy to disassemble and assemble, no modification required.
5. Distinction indication: 99100680066 and 199100680066 have similar appearances but different hole diameters, and cannot be interchanged.
One-stop To Factory in China
High elasticity and anti-aging natural rubber composite material (main body of rubber), some versions with metal inner framework; resistant to high and low temperatures, resistant to oil stains.
What is the function of part 99100680066?
This rear stabilizer bar bushing acts as a flexible connection between the stabilizer bar and the vehicle bracket. It effectively reduces body roll during turning, absorbs road vibration and impact, eliminates metal-to-metal friction, suppresses chassis clunking and squeaking noise, and protects the entire suspension system to ensure stable driving performance.
What are the product features of this bushing?
1. OEM standard size, perfect fit for original vehicle without modification; 2. Conical structural design for precise positioning, uniform stress and anti-drop performance; 3. High load resistance, specially developed for heavy-duty truck working conditions; 4. Balance flexibility and support strength, durable and not easy to deform; 5. Strictly distinguished from similar part 199100680066, non-interchangeable.
What materials are available for this part?
We provide three mainstream materials for selection: 1. Original rubber material: high elasticity, aging resistance, shock absorption and noise reduction, comfortable driving experience; 2. PU polyurethane material: higher hardness, super wear resistance, longer service life, suitable for heavy-load frequent operation; 3. Nylon material: low cost, strong wear resistance, cost-effective for replacement.
What are the failure symptoms of worn bushing?
When the bushing is aging or damaged, obvious symptoms will appear: chassis squeaking or clunking noise when passing speed bumps and rough roads; enlarged gap of stabilizer bar; increased vehicle body roll during turning; reduced driving stability.
