Part Name: Transmission Neutral Switch (Neutral Pressure Switch)
Original Factory Model: 0041-3, Compatible with FATESTER FAST Transmission
Compatible Vehicles: Sinotruk, Shaanxi Auto Delong, Jiefang J6, Dongfeng Tianlong, OMMAN, Hongyan, etc. Mainstream domestic heavy trucks / buses
Corresponding Original Factory Part Number: 99012710041
Main material: Fully forged from brass, corrosion-resistant, resistant to transmission oil erosion

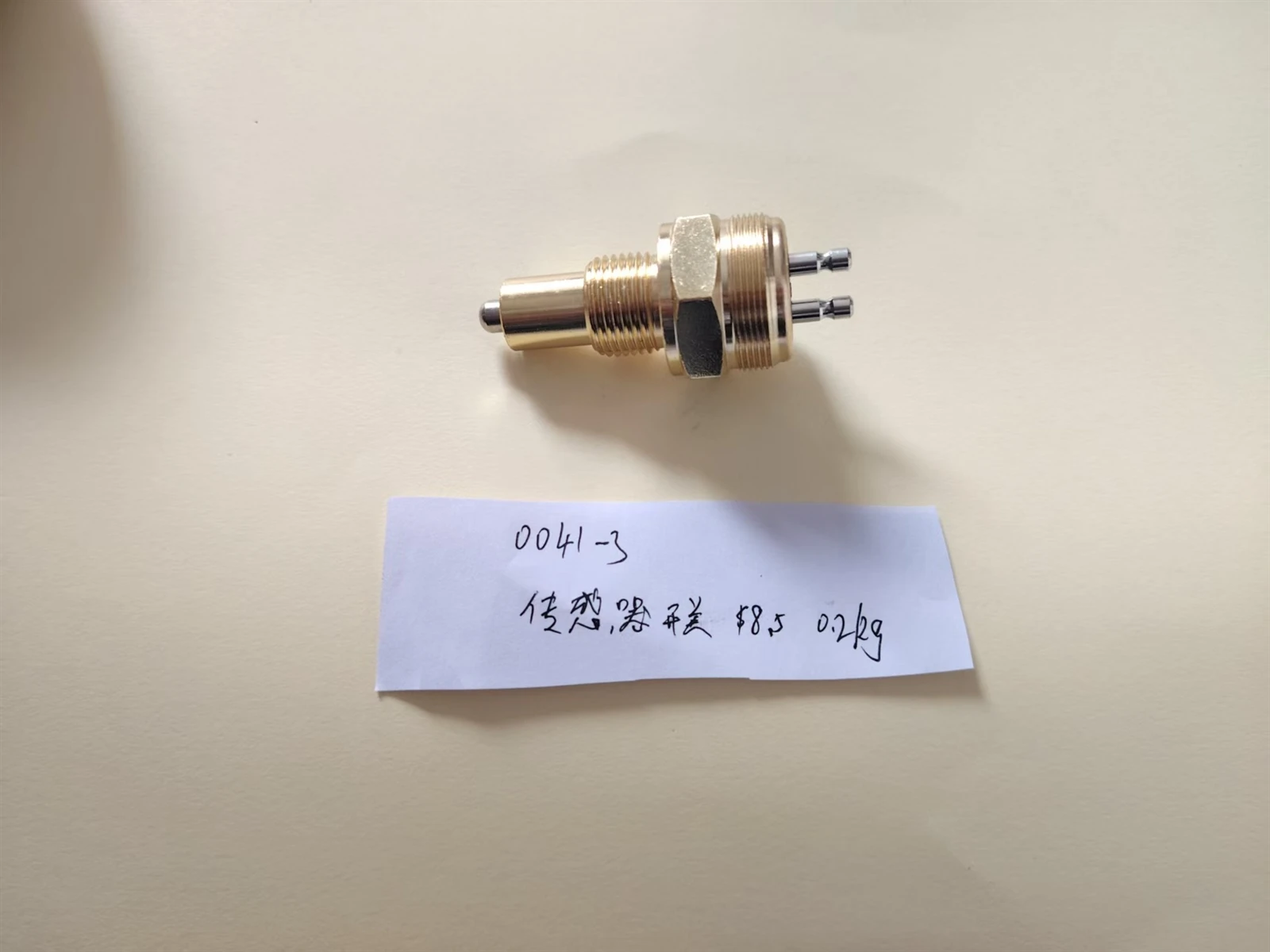

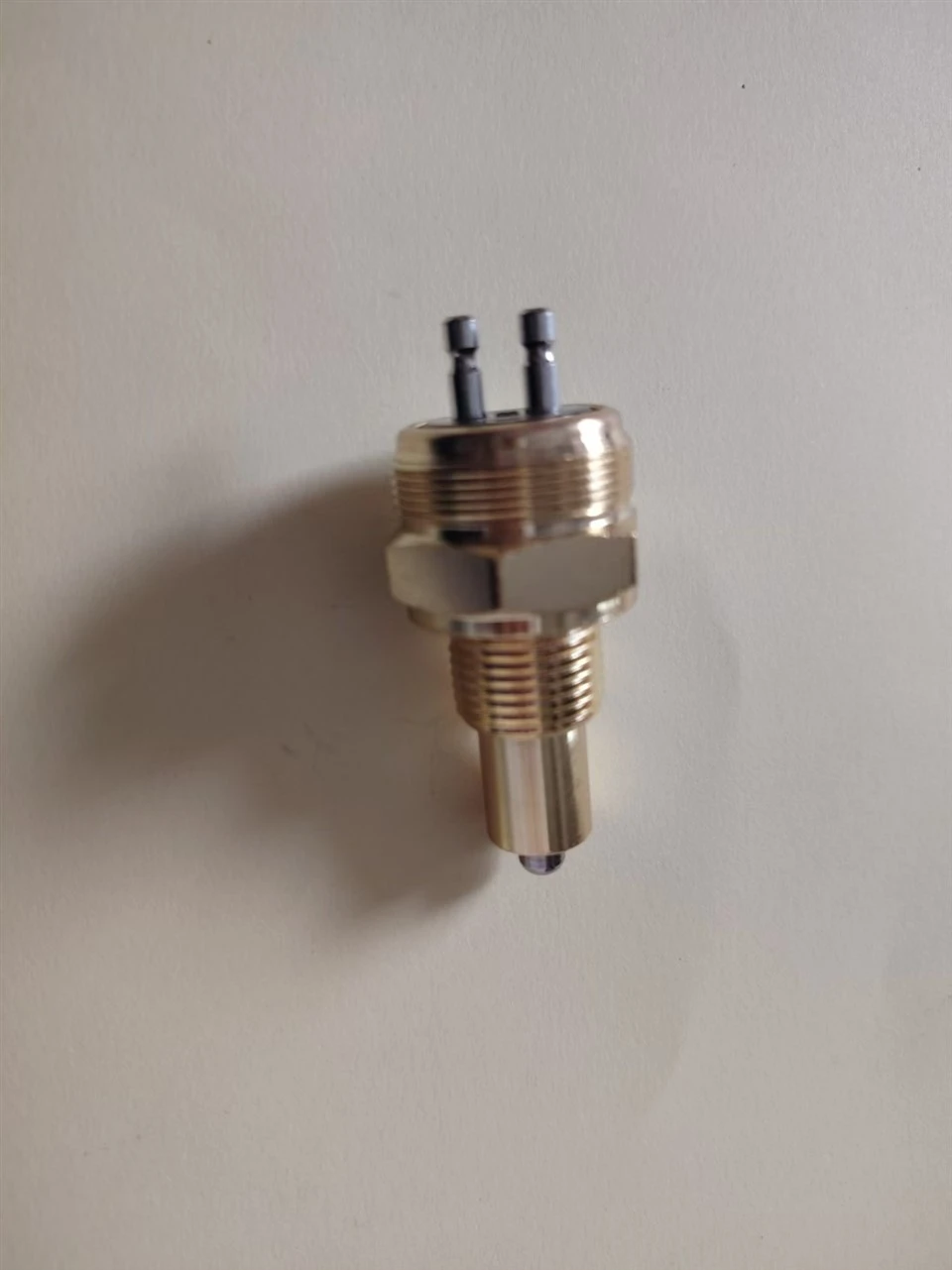

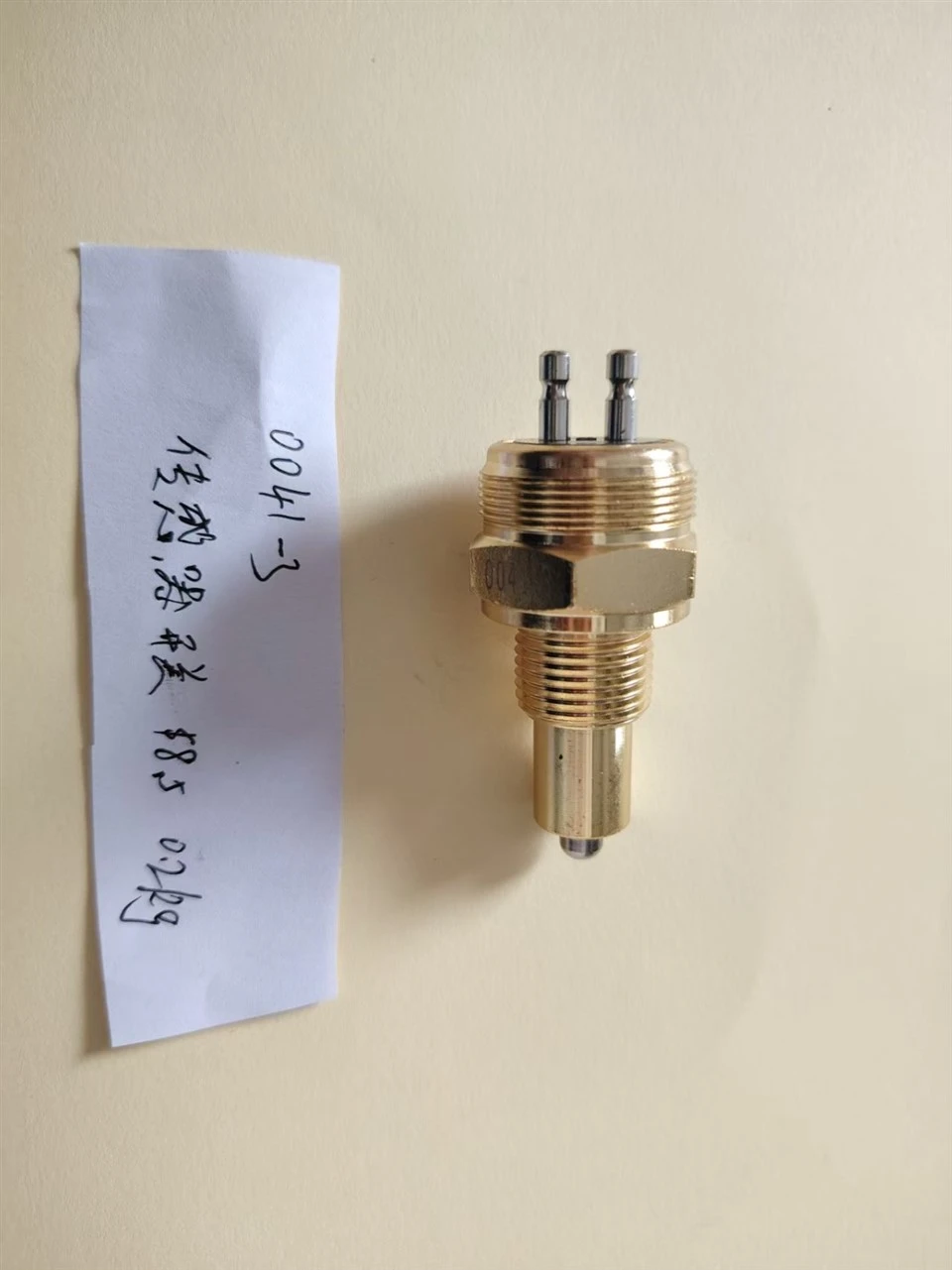

External structure:

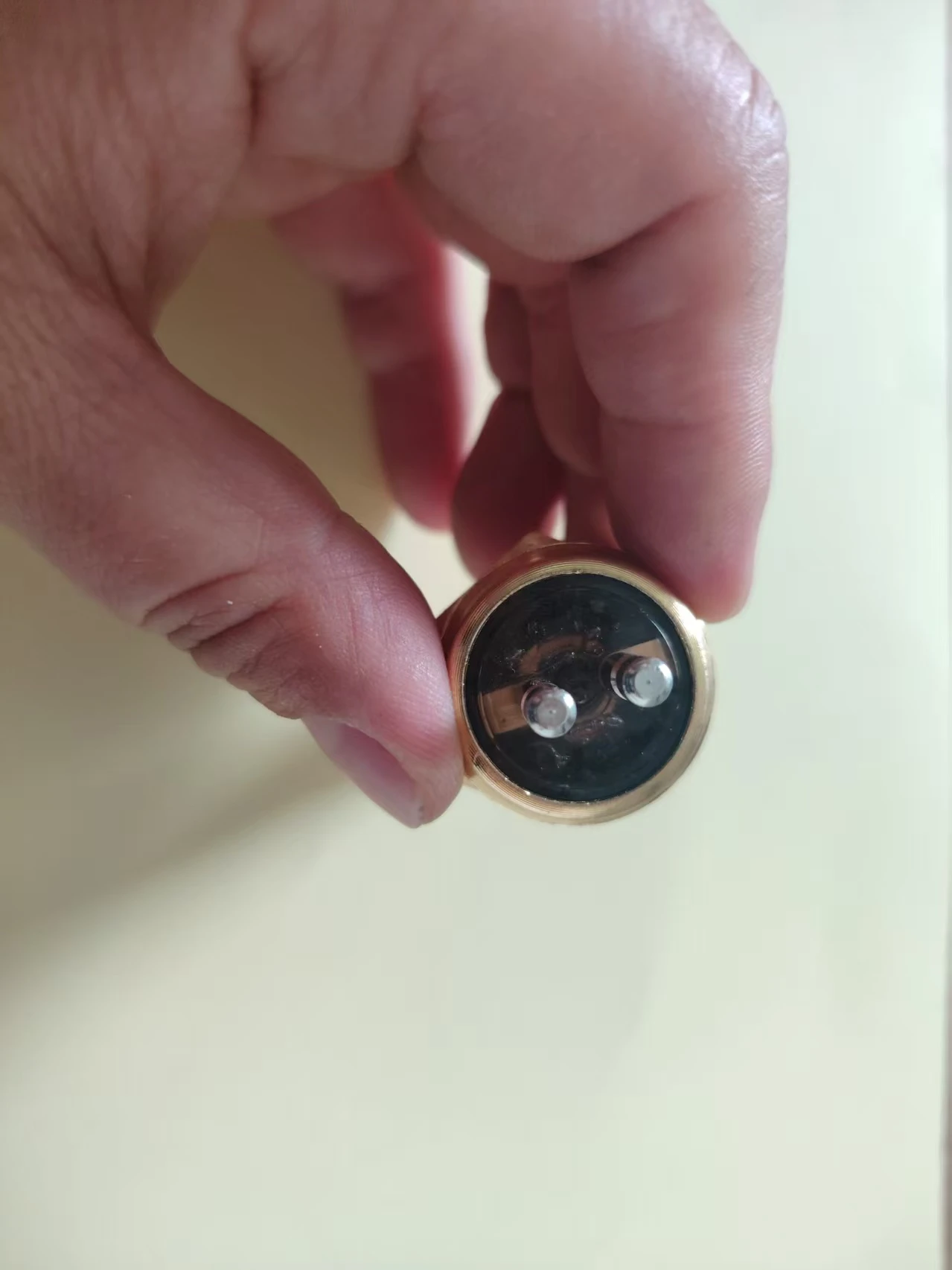

Upper part: Two parallel metal pins, direct insertion type wiring plug, 24V circuit contacts

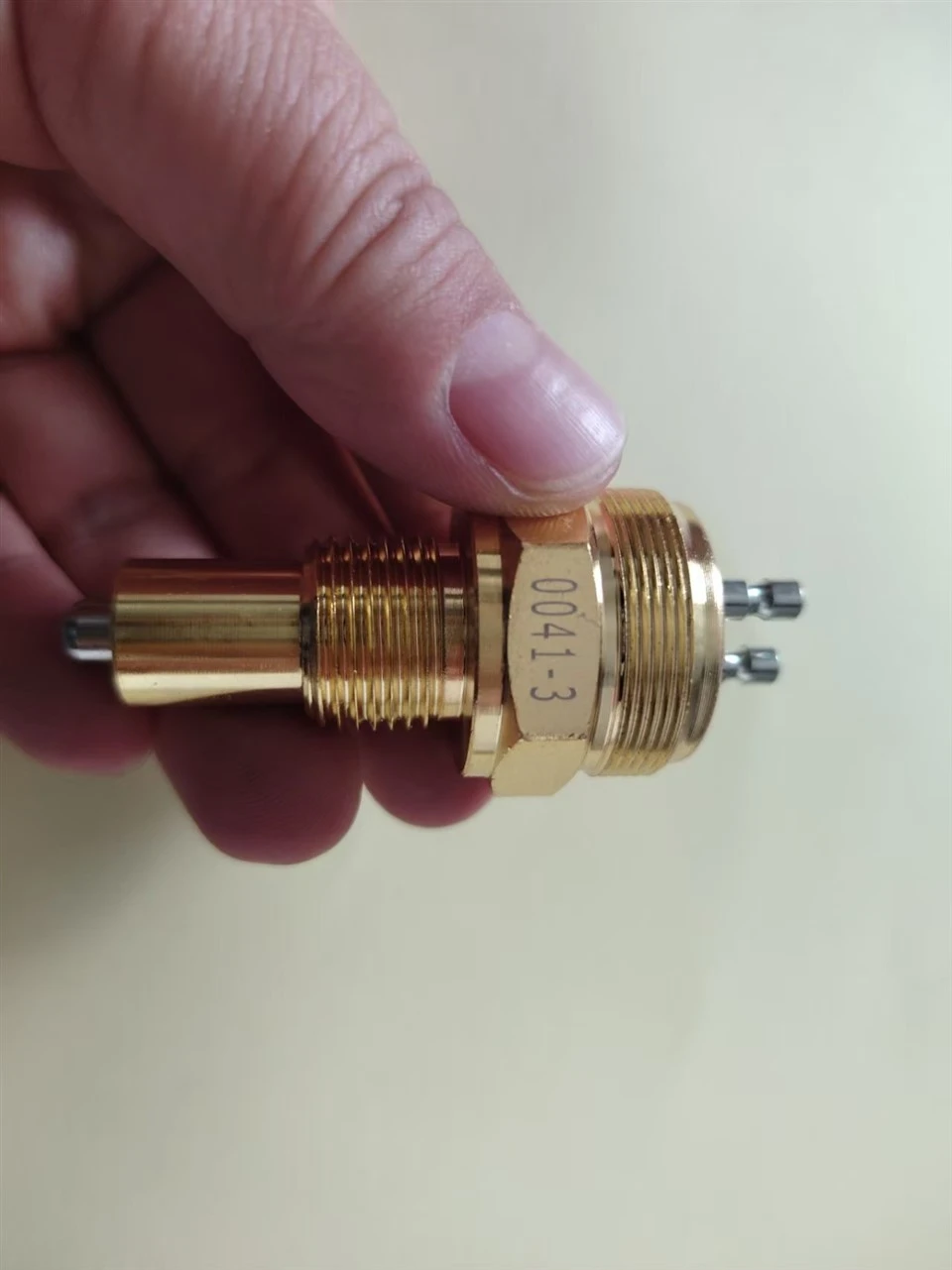

Middle part: Hexagonal installation fastening position, side engraved with model 0041-3; threaded section wrapped with red oil-resistant tape, factory pre-sealed to prevent oil leakage

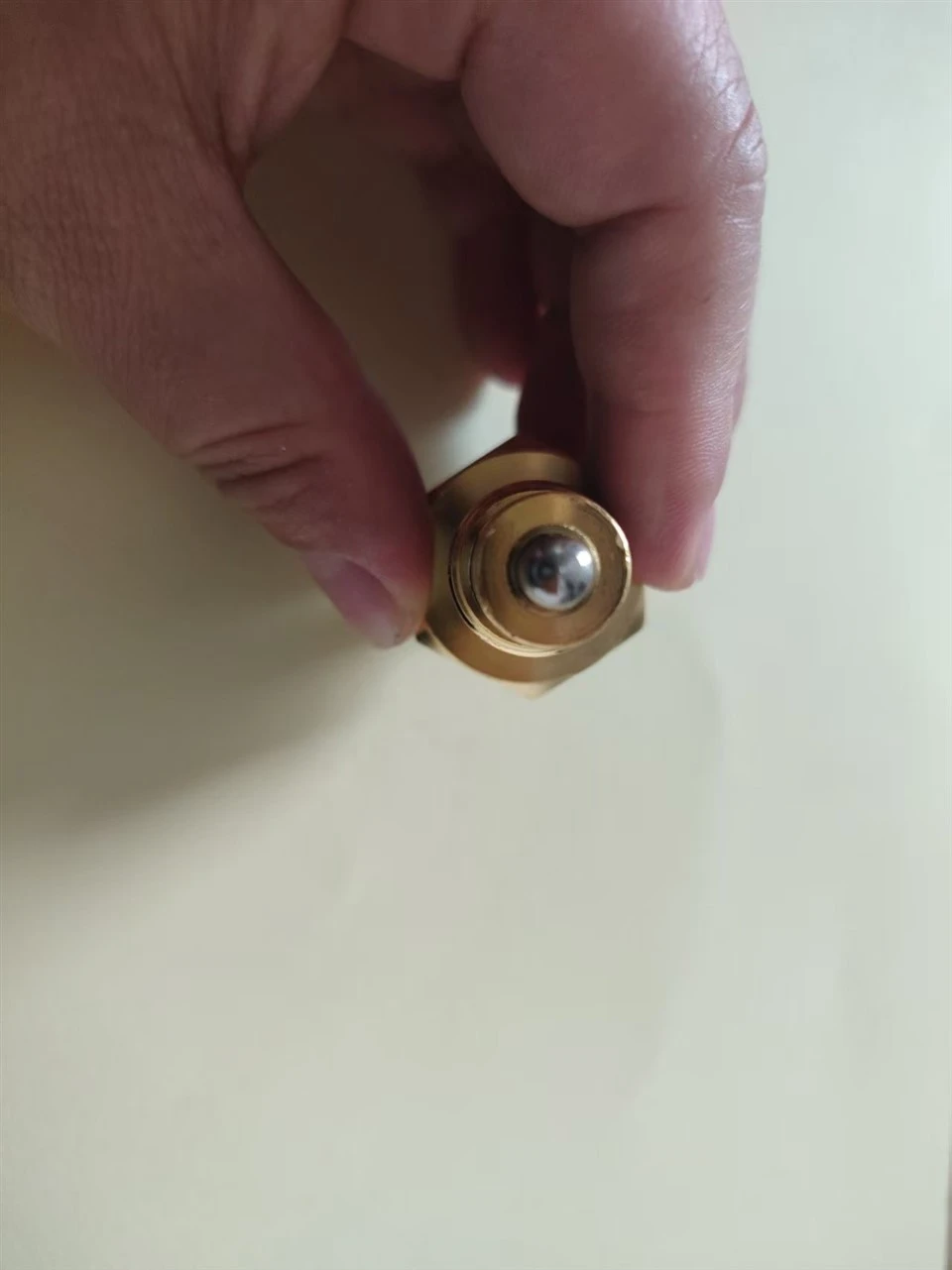

Lower part: Extension pin sensing head, the pin is triggered to switch on or off by the transmission shift fork squeezing it
Installation method: Threaded insertion into the side of the transmission housing, standard two-pin direct insertion interface, no external wiring harness
Mechanical contact pressure switch:
When the gearbox is in neutral position, the shift fork releases the pin, and the internal circuit conducts, sending a neutral signal to the ECU;
When any forward or reverse gear is engaged, the shift fork presses the pin, and the circuit is disconnected;
Vehicle functions
Neutral start protection： The vehicle can only be started by detecting neutral position, to prevent runaway when starting with the gear engaged;
The indicator light for neutral position on the instrument panel lights up;
Auxiliary clutch, cruise control, and power take-off (PTO) logic control;
Cooperates with the reverse gear switch 0068-1 to distinguish neutral position / reverse gear signals.
One-stop Cosmetic Tube Factory in China
Neutral Position Switch, Model 0041-3, For FAST Gearbox, Heavy Duty Truck Transmission Parts, Brass Material, 2 Pin Connector, Used for Sinotruk Howo, Shacman, Jiefang, Dongfeng Trucks.
