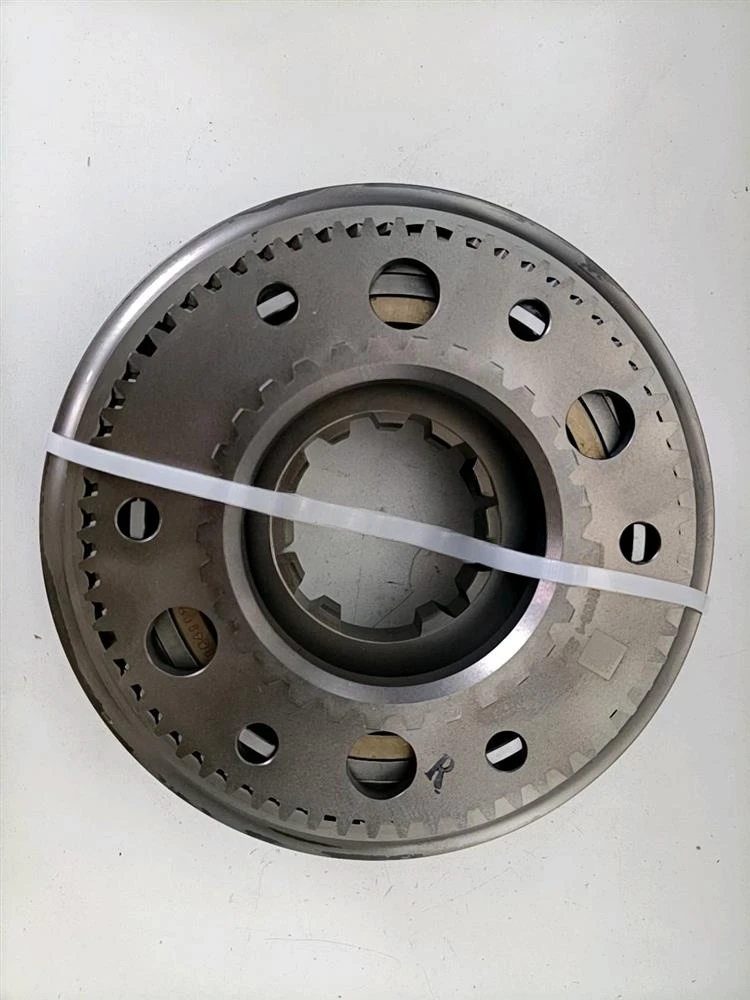

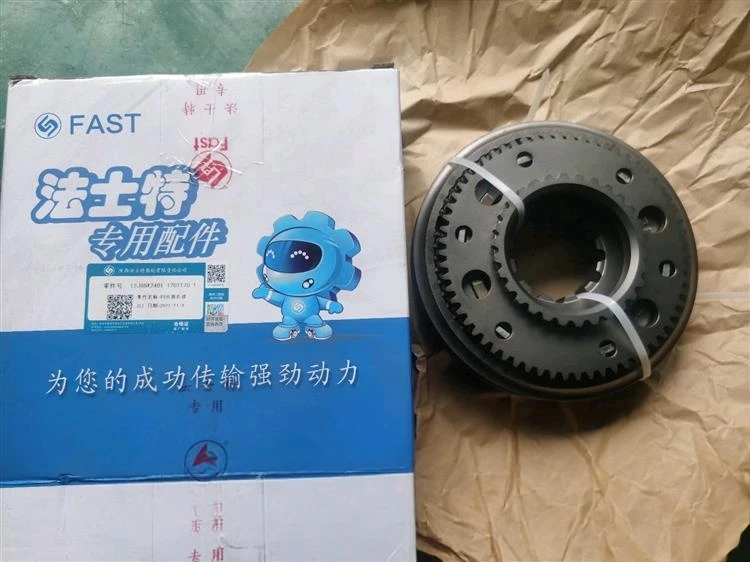

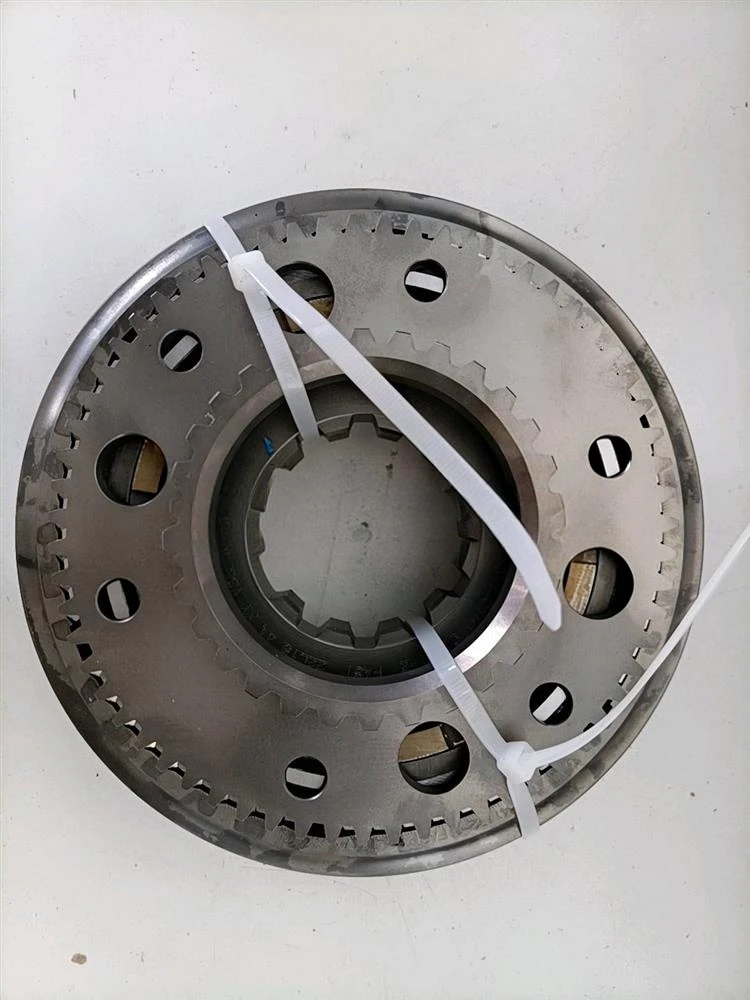

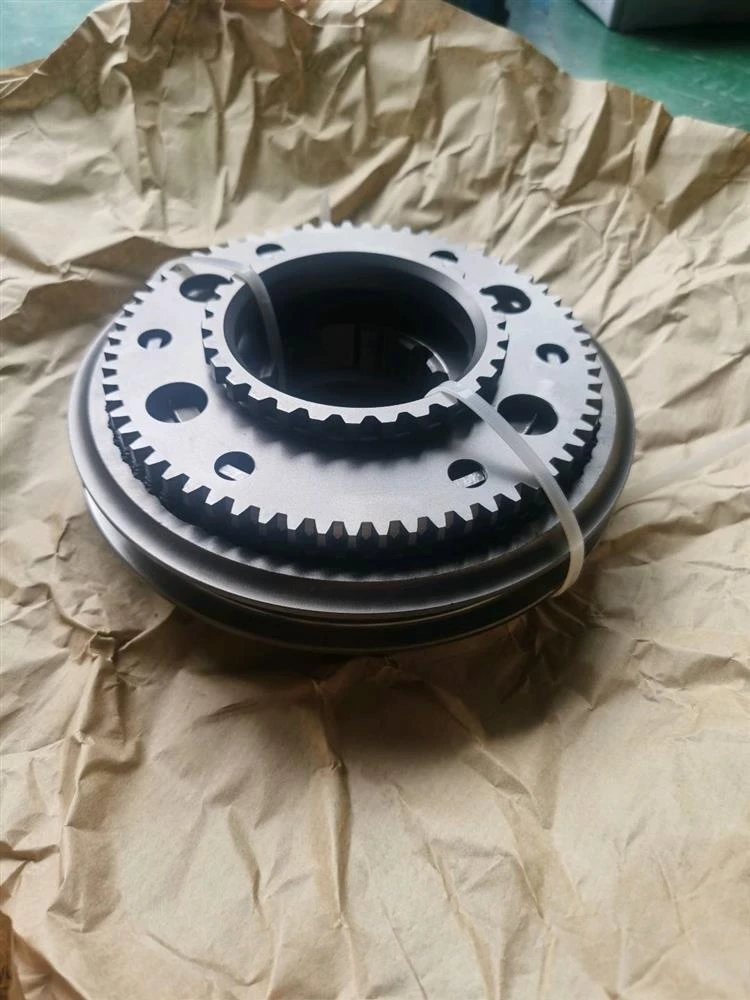

FAST 1/2 Gear Synchronizer 12JSDX240T-1701170

Complete OE part number: 12JSDX240T-1701170
Standard name: Faserte 12JSDX240T main box 1/2 gear synchronizer assembly (including sliding sleeve, synchronizer ring, and entire gear hub set)
Brand affiliation: Shaanxi Faserte FAST, original factory core components of 12-speed heavy-duty fully synchronized transmission
Compatible transmission
12JSDX240T, 12JSDX240TA (aluminum shell lightweight 12-speed transmission, input torque 2400N·m)
Compatible vehicles
Haowo, Haohan, Shaanqi Delong, Jiefang, Dongfeng 6×4/8×4 dump trucks, trailers, cargo trucks, equipped with Wuxi WP10/WP12 high-power engines, standard load / heavy load long-distance trunk roads, construction waste and mining vehicles

When starting at low speed, the shift lever pusher moves the sliding sleeve towards the 1st gear side. The sliding sleeve then presses the 1st gear copper synchronous ring tightly.
The conical surface of the synchronous ring rubs against the 1st gear, quickly balancing the speed difference between the main shaft and the gear.
After achieving synchronous speed, the sliding sleeve engages the teeth of the 1st gear smoothly, completing the power connection of the 1st gear.
When shifting to the 2nd gear, the lever pushes the sliding sleeve in the opposite direction. Similarly, the 2nd gear synchronous engagement is completed.
When in neutral, the sliding sleeve is centered and does not engage any gears, thus cutting off the power supply.
Key function: Eliminating the speed difference during gear shifting, ensuring smooth gear engagement, avoiding gear impact and tooth damage. It is the core wear-prone component for gear shifting at low speeds.
