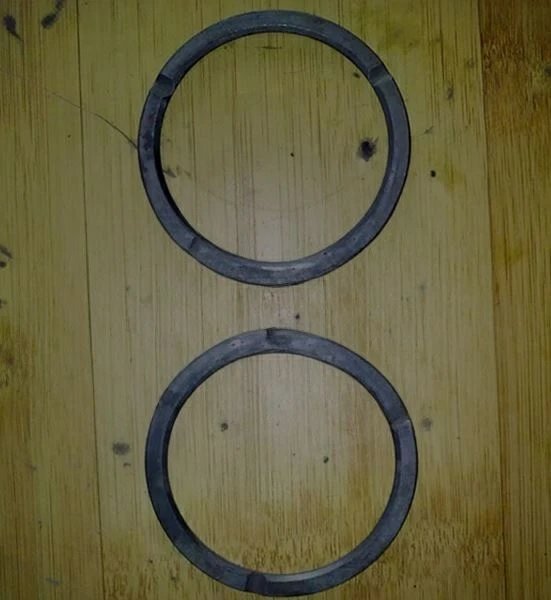

Transmission Gasket AZ2229100326

The gearbox, one of the automotive components, is a device that changes the speed ratio and direction of movement. It is used in cars, tractors, ships, machine tools, and various machines to change the torque, speed, and direction of movement transmitted from the driving shaft to the driven shaft according to different working conditions. The gear-driven gearbox is generally composed of a housing and several gear pairs. For mechanical gearboxes, in order to ensure the appropriate axial clearance between the first and second shafts after the housing assembly, the assembly clearance is measured according to the dimensions of the housing and shaft parts, and then a qualified thickness of gasket is selected to ensure that the internal part clearance is reasonable, neither too large nor too small, without generating noise or abnormal wear.

The transmission system refers to the power transmission device between the engine and the wheels of a vehicle. It should ensure that the vehicle has the traction force and speed required under various driving conditions, as well as the functions of coordinated changes between them, so as to enable the vehicle to have good power performance and fuel economy. It should also ensure that the vehicle can reverse, and that the left and right driving wheels can adapt to the differential requirements, and that the power transmission can smoothly engage or completely and rapidly disengage as needed.

The spline gasket on the sub-box shaft is a combined gasket. The two parts are assembled together. It not only has a direction but also should have a gap. It also includes the assembly direction and gap with the large black gasket at the back. So, assemble the sub-box assembly at the bottom, tighten the rear nut, then rotate the reduction gear. It's best to lift it up and down a little to see if you can determine if the gasket you bought is faulty.
