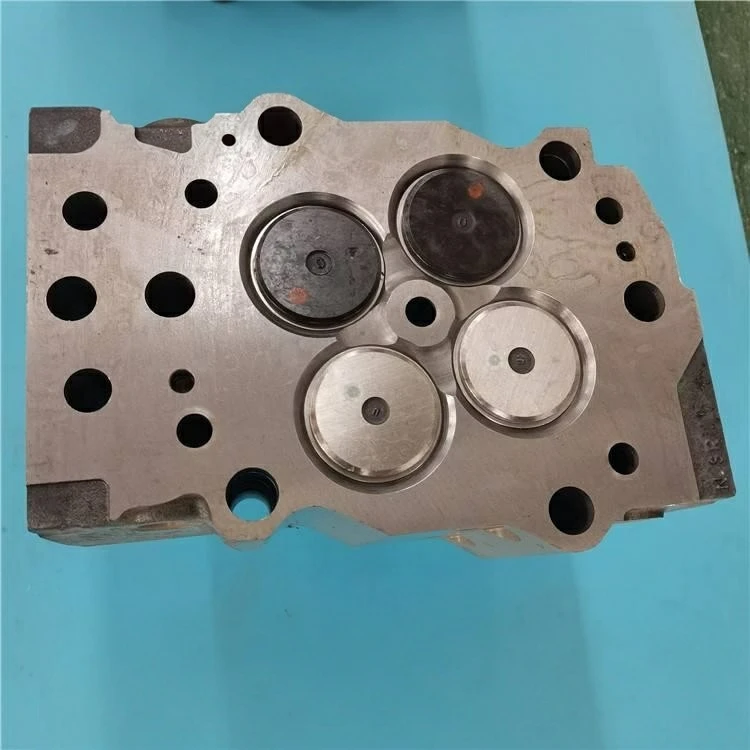

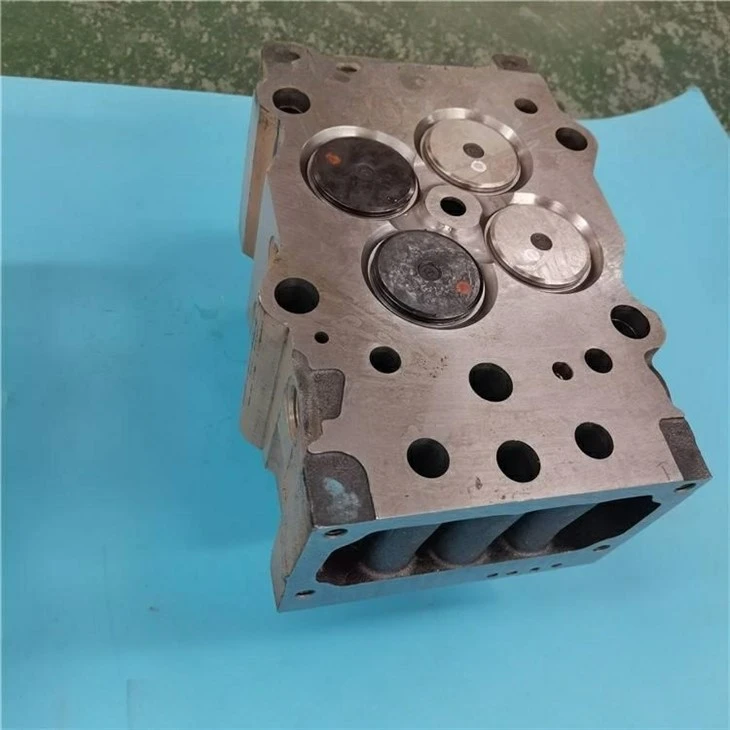

Cummins Cylinder Head Assembly 3811985 3646323

The cylinder head of a Cummins engine is installed on the top of the cylinder block and serves as an important component for sealing the upper part of the cylinder, forming the combustion chamber and bearing thermal loads and mechanical stresses. It is like the "guardian" of the engine, not only ensuring the sealing of the combustion chamber and effectively converting combustion pressure into power, but also featuring numerous key components and channels. Inside, there is a cooling water jacket to assist in heat dissipation. Different types of engines have cylinder heads with various specific features, such as spark plug holes and fuel injector holes. The material is mostly gray cast iron, alloy cast iron, and aluminum alloy is also gradually becoming more widespread.

The construction of the cylinder head of a Cummins engine is extremely sophisticated. It typically consists of components such as the cylinder head itself, valves, spark plugs, intake and exhaust passages, and the camshaft. The valves are responsible for precisely controlling the intake and exhaust, ensuring that air and fuel enter and exit the combustion chamber at the right time, just like a meticulous guard controlling the "breathing" rhythm of the engine; the spark plug plays a crucial role in igniting the mixture in a gasoline engine, providing the initial energy for combustion; the intake and exhaust passages are like a precise piping system, efficiently guiding the gas to flow in an orderly manner, ensuring smooth breathing for the engine; the camshaft uses precise mechanical movements to control the opening and closing of the valves, coordinating the working cycle of the engine.

From the perspective of manufacturing techniques, the precision requirements for the cylinder head of Cummins engines are extremely high. For instance, the processing of valve seat rings and guide hole needs to meet specific precision standards, and these requirements vary for different engine models. This is because the design and manufacturing precision of these components are directly related to the performance and reliability of the engine. If the precision is insufficient, it may lead to problems such as poor valve sealing and abnormal intake and exhaust, thereby affecting the engine's power output and fuel economy.

In practical applications, the cylinder heads of Cummins engines vary due to the differences in combustion methods between gasoline engines and diesel engines. The combustion chambers of gasoline engines are mainly located within the cylinder heads, which requires the cylinder heads to be designed to fully consider the formation and combustion process of the mixture; for diesel engines, the combustion chambers are mainly in the recesses on the top of the pistons, and the structure and functions of the cylinder heads are optimized around this feature.

In conclusion, although the cylinder head of a Cummins engine may seem like just a component, it actually holds numerous secrets and key technologies. Every design detail and every component coordination of it plays an indispensable role in the overall performance of the engine, and is an important guarantee for the engine to operate normally and work efficiently.
