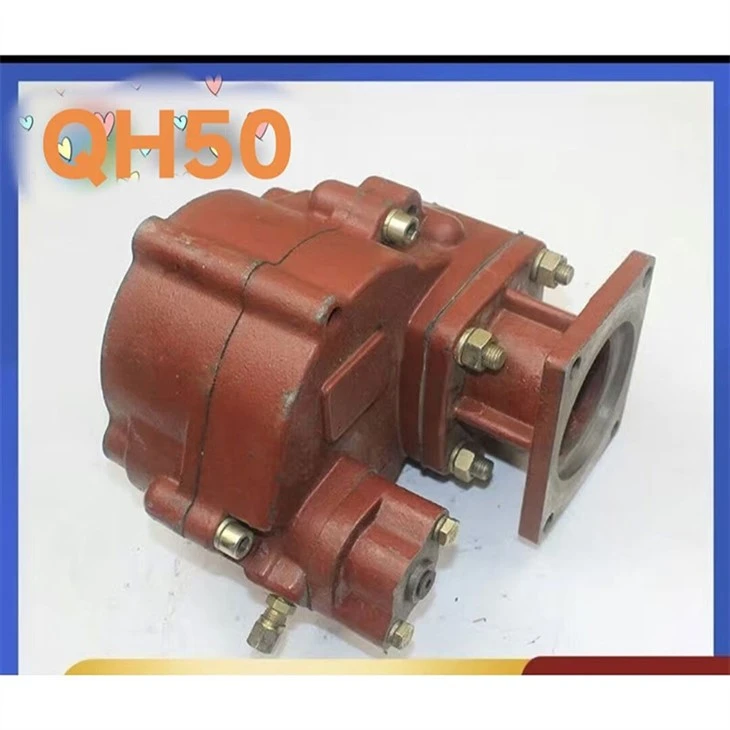

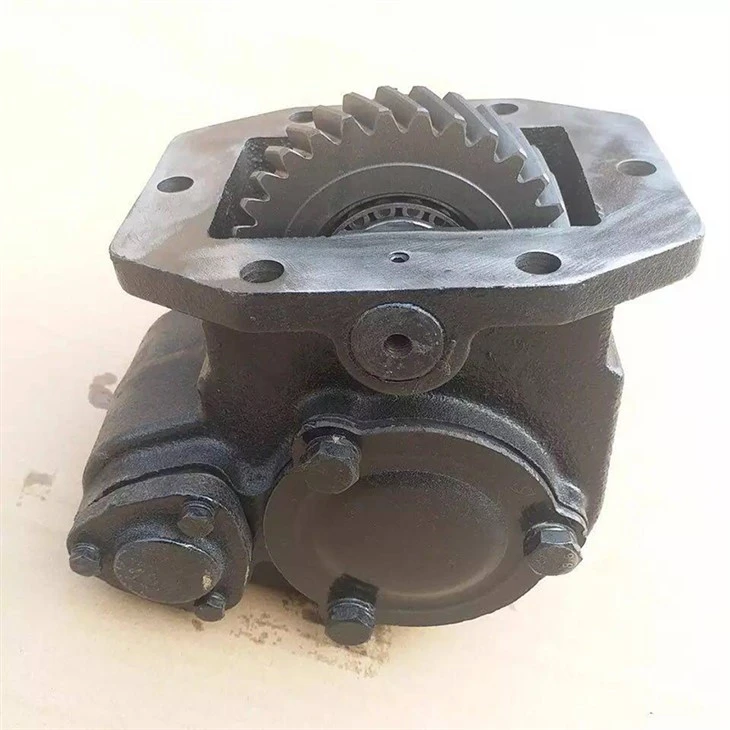

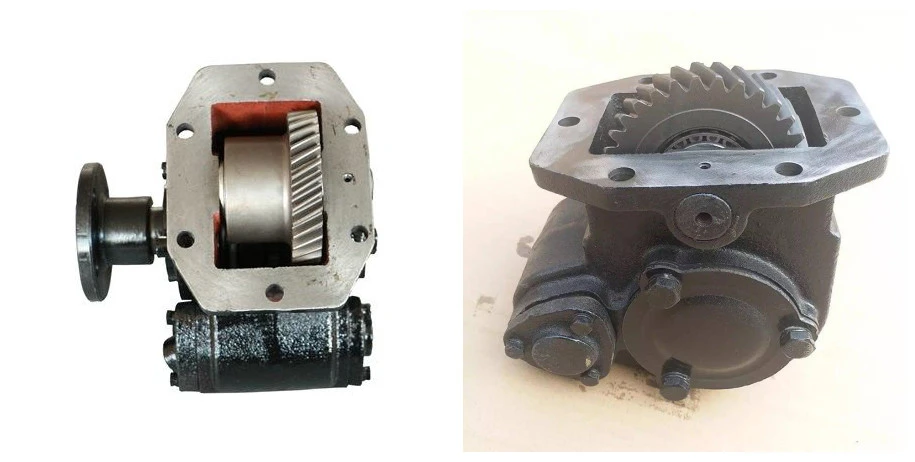

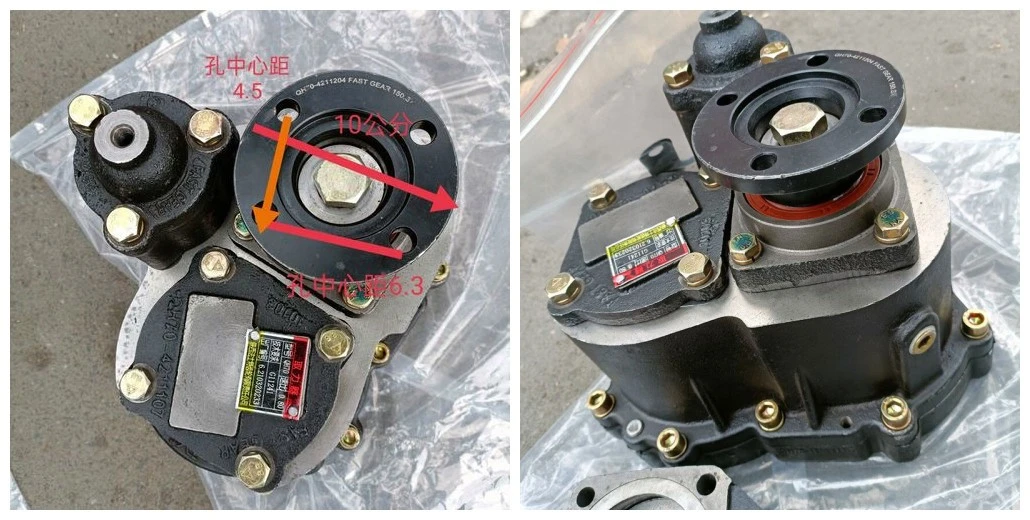

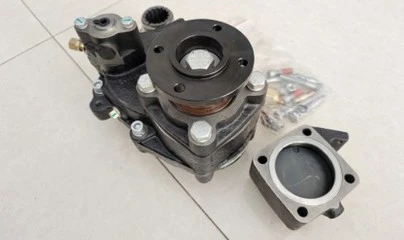

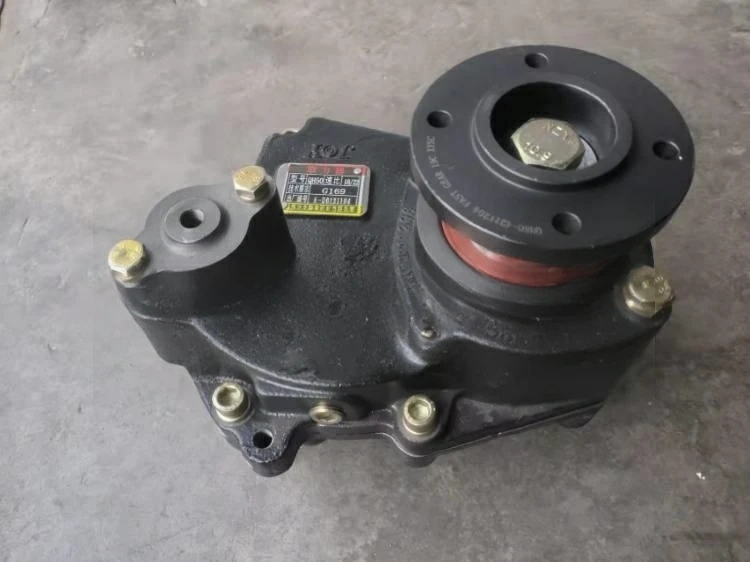

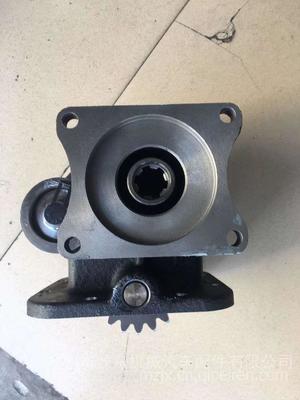

Fast Gearbox PTO power takeoff QH50

The QH50 series drive shaft is powered from the intermediate shaft of the auxiliary box of the Faiste double intermediate shaft transmission.

The QH50 series drive shaft is a one-way pneumatic-hydraulic operated gear shifting mechanism, with automatic disengagement when the air supply is cut off.

Rated output torque (N·m): 50

Overall speed ratio range: 0.76 - 2.45

Output shaft rotation direction: The same as the engine

Applicable models: The QH50 series drive shaft is a rear-mounted drive shaft specifically designed for the dual intermediate shaft series transmission. It is suitable for various special vehicles and special equipment that are paired with the dual intermediate shaft series transmission, such as dump trucks, truck cranes, fire engines, etc.

01.

Structural Characteristics

The QH50 transfer case is a rear-mounted transfer case. It is installed on the extended intermediate shaft at the rear end of the Fatashe double intermediate shaft transmission. The power is extracted from the extended intermediate shaft of the transmission through the hollow shaft of the transfer case, transmitted to the input gear through the meshing gear sleeve, and then output through the output gear shaft and output flange. This transfer case is a one-way pneumatic operated type. The combined teeth of the input gear and the meshing sleeve are both reverse conical teeth, which can play a role in preventing accidental disengagement of gears. Additionally, a support spring is installed on the hollow shaft, allowing the shift fork to remain in the middle position of the meshing sleeve's slot under the tension of the spring, without contact on both sides, reducing friction and providing assistance during gear engagement and disengagement.

02.

Driving Power Extraction

When using the vehicle's power take-off, first make the vehicle run at a low gear and at a slow speed. Then place the control lever in the low gear neutral position, open the power take-off solenoid valve, and put the power take-off in the engaged gear take-off state. Depending on the specific situation, shift the transmission to the required gear. At this point, the power take-off enters the working state, while the entire vehicle can still travel normally.

Stop the vehicle to obtain power
