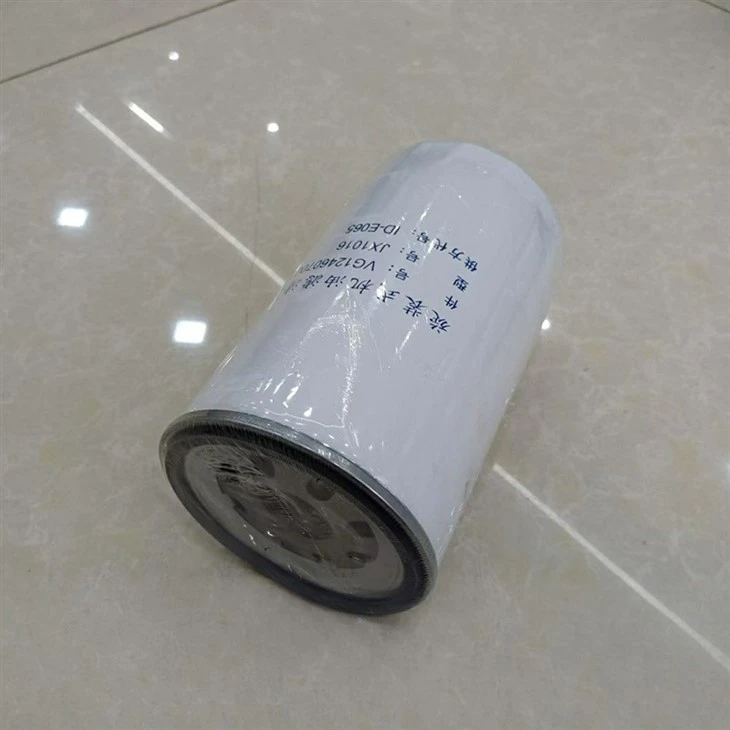

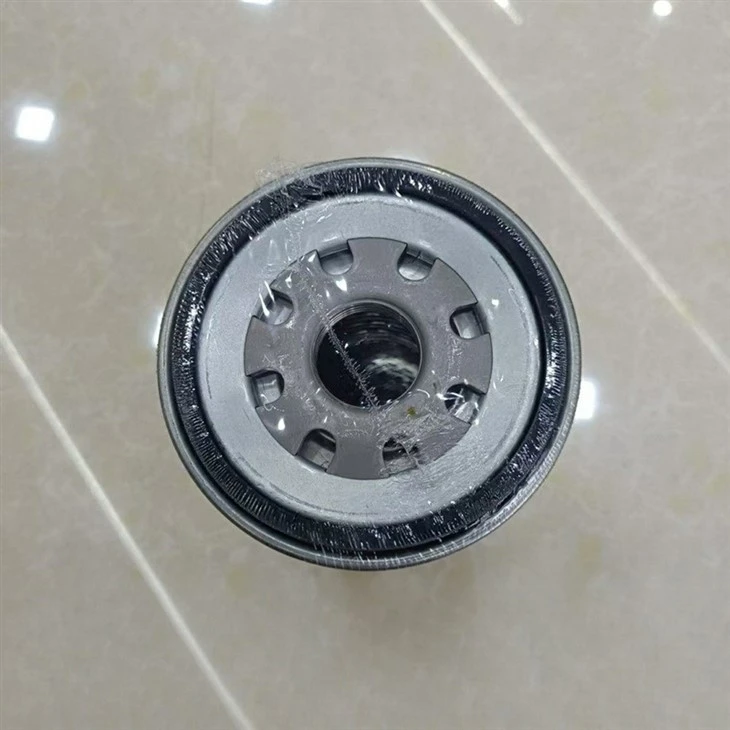

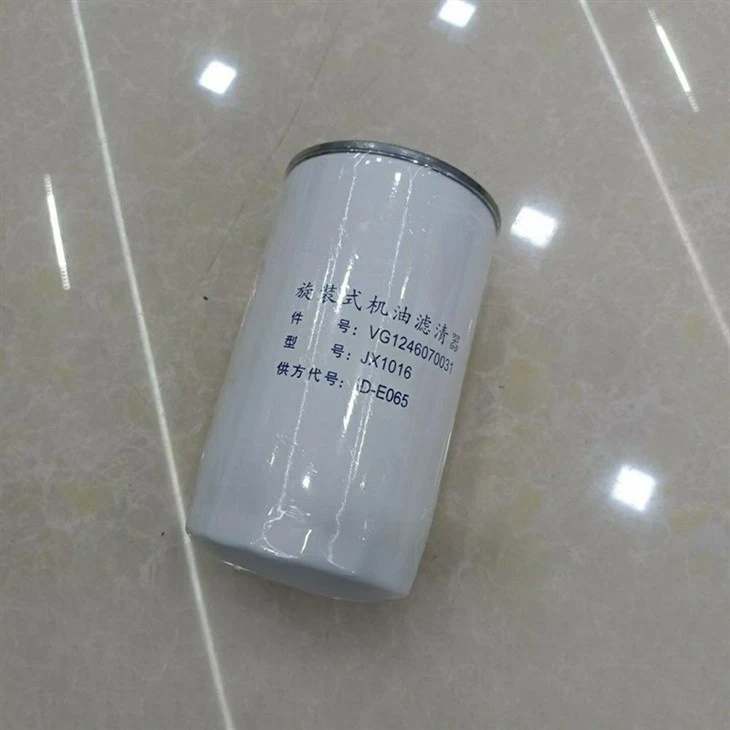

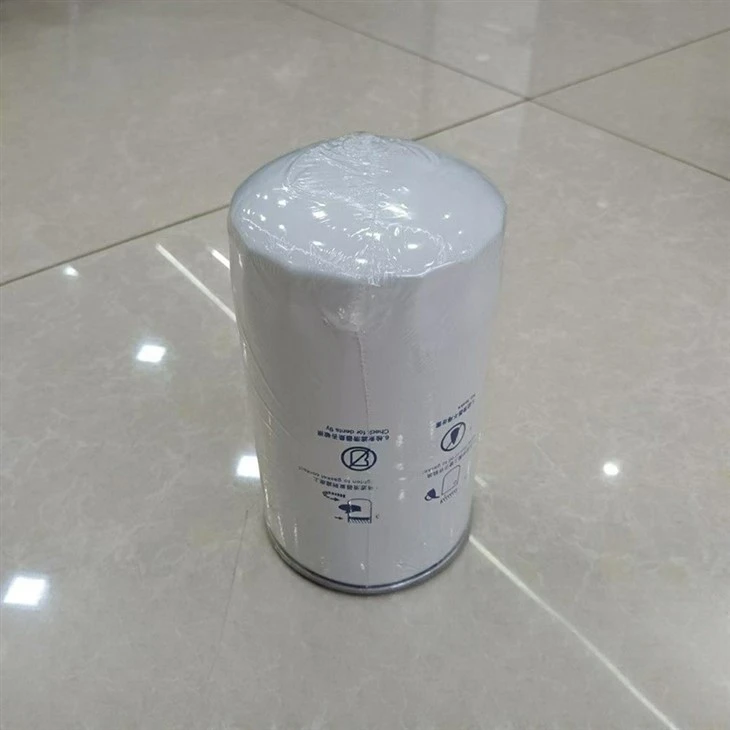

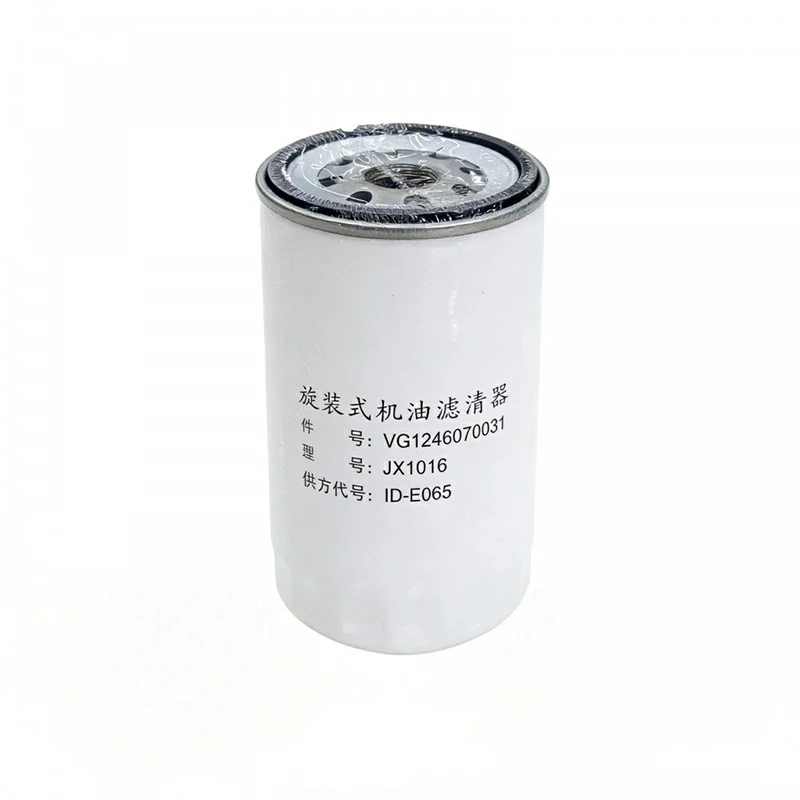

OIL FILTER (HOWO) VG1246070031

This is a screw-on type oil filter. It consists of an outer casing, a threaded cover plate and a filter assembly, a safety valve, and a spring. The filter assembly is composed of a central tube, filter paper, an upper cover and a lower cover. The safety valve is located inside the central tube.

Precisely matched for engines and vehicle models
Matching engines
Shagang WD615, WP10 series diesel engines, Haowo 375-horsepower, 380-horsepower, 420-horsepower third-generation, fourth-generation, fifth-generation diesel engines for trucks and buses.
Matching vehicles
Haowo HOWO trucks, dump trucks, tractors, concrete mixer trucks, construction waste trucks, cement pump trucks; Jinshengzi, Haoyun and other full-range engineering vehicles of Shagang, as well as a large number of matching with the same power loaders and mining engineering machinery units.

Standard structure and hardware parameters
Installation structure: Screw-type integrated oil filter element, standardized threaded interface, vertical direct screw installation, equipped with an integrated sealing rubber gasket;
Shell material: Thickened cold-rolled steel shell, high-pressure explosion-proof design, capable of withstanding normal oil pressure fluctuations of the engine lubrication system, will not bulge or crack under long-distance heavy-load, climbing conditions;
Built-in filter layer: Multi-layer gradient glass fiber + filter paper composite filtration structure, built-in central support mesh tube, check valve, bypass valve assembly;
Sealing gasket: Nitrile rubber resistant to oil and acrylonitrile rubber, does not harden or leak oil when in contact with high-temperature engine oil for a long time, suitable for engine oil working temperature of 80–125℃.

International renowned filter brand interchange codes:
Fleetguard (Fryega): LF16285, LF16333
MANN brand: W11170/12
Baldwin brand: B7383
Donaldson brand: R010077
Sakura brand: C38090
