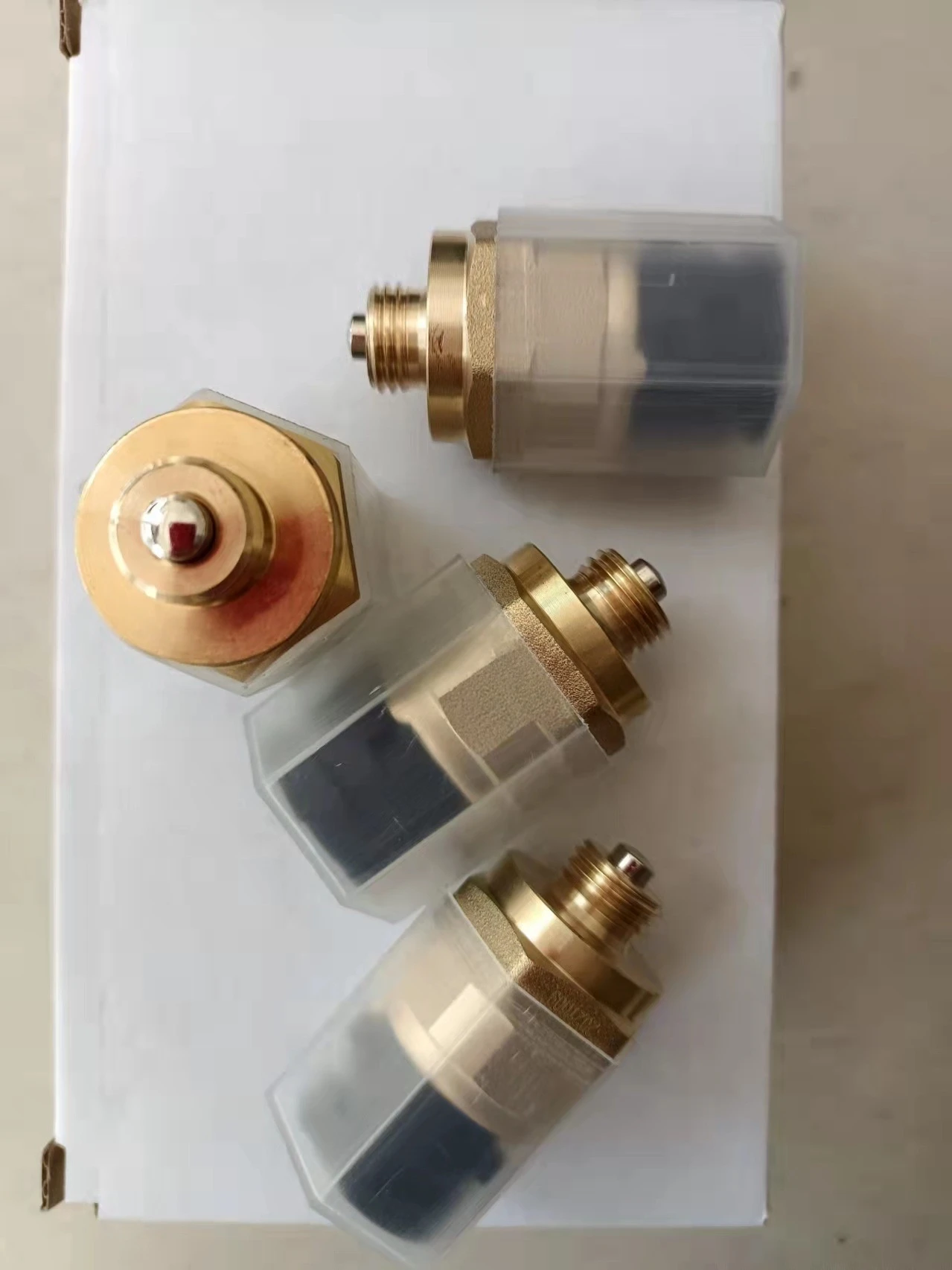

Product features
2 Plug-in type, normally open type, original factory thread specification, directly screwed into the gearbox for lossless replacement;
Mechanical top bead triggering structure, resistant to immersion in gearbox oil, suitable for continuous vibration conditions of heavy trucks;
Good sealing performance, preventing leakage of gearbox oil;
Sensitive response, conducting immediately upon shifting to reverse gear;
Compact in size, easy to install, convenient for maintenance and replacement.
Material
1. Main shell: Brass (copper alloy), with high strength, corrosion resistance and good heat conductivity;
2. Sealing components: Oil-resistant NBR rubber sealing ring, resistant to corrosion from transmission oil;
3. Internal contacts: Conductive alloy;
4. Connector housing: Black PA66 engineering plastic, resistant to oil and high temperature.
Function
1. The vehicle shifts into reverse gear, the switch contacts close, the reversing lights are connected, and the rear reversing lights are illuminated, warning the people behind the vehicle;
2. At the same time, a reverse gear signal is sent to the vehicle's ECU. For some models, the reversing buzzer alarm and reversing image signal are activated;
3. Release the reverse gear, the switch is disconnected, and the reversing lights go out.
One-stopToFactory in China
WG2209280026, Reverse Light Switch, Gearbox Reverse Switch, SINOTRUK Howo T5G, Heavy Truck Reverse Switch, 2 Pin Reverse Lamp Switch, Truck Gearbox Electrical Switch
Q: What is the function of WG2209280026?
A: This reverse light switch is mounted on the gearbox. When the truck shifts into reverse gear, the switch closes the circuit to turn on the rear reverse lamp. It also sends reverse signal to ECU for reverse buzzer or rear view camera. The circuit cuts off once gear exits reverse position.
Q: Where is this switch installed and which models fit?
A: It is screwed onto the gearbox housing. Suitable for SINOTRUK HOWO T5G and new HOWO heavy trucks. One piece per vehicle.
Q: What are the product features?
A: 1. 2-pin connector, normally open type, OEM thread size for direct replacement.
2. Mechanical plunger trigger design, resistant to continuous vibration of heavy duty truck.
3. Good sealing performance to prevent gear oil leakage.
4. Fast response when engaging reverse gear.
5. Compact size, easy installation and maintenance.
Q: What material is this reverse switch made of?
A: Main body: brass alloy for corrosion resistance. Seals: NBR oil-resistant rubber. Internal contact: conductive alloy. Connector housing: PA66 reinforced plastic, oil and heat resistant.
