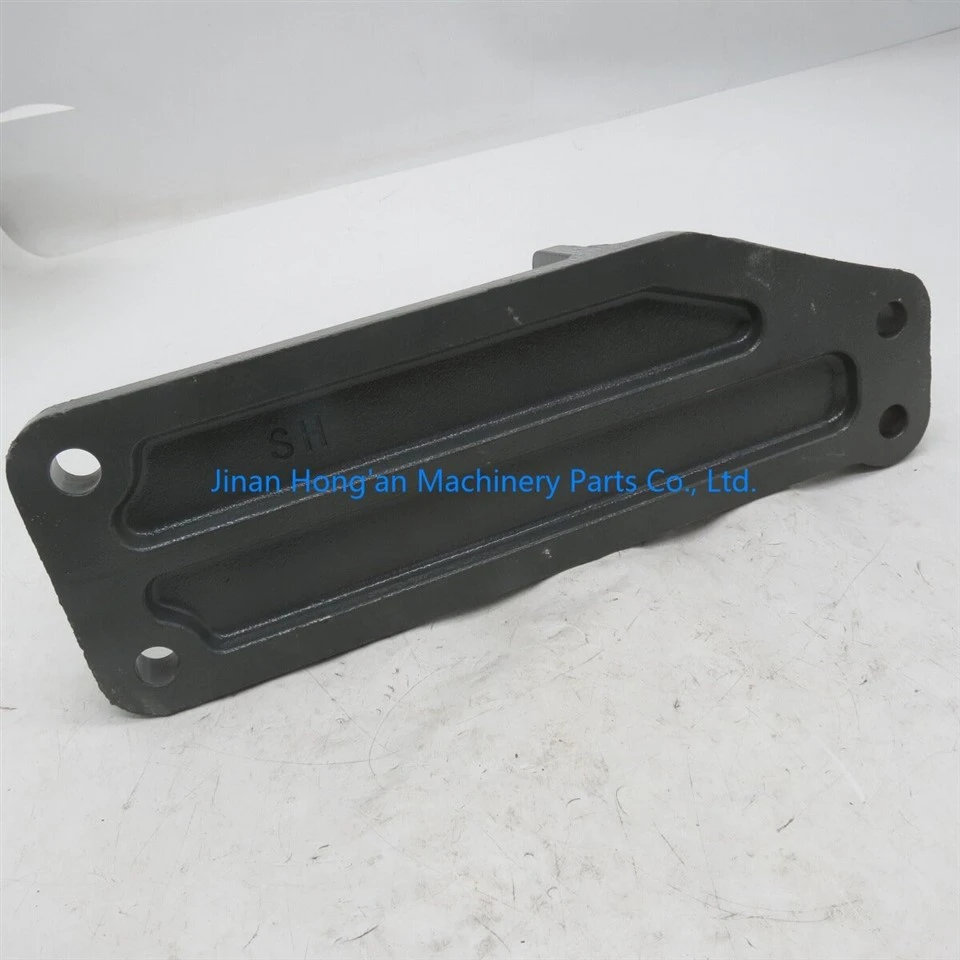

1. Material: Cast steel (forged carbon steel), fully integrated casting, coated with gray-black anti-rust primer, highly resistant to impact, capable of withstanding the huge static and vibration loads of the engine.
2. Hole layout
Upper end: 2 installation holes, fixed to the rear housing of the engine;
Lower end: 2 installation holes, fixed above the rubber shock absorber pad of the engine rear suspension;
The reinforced structure resists the torsional stress caused by bumps, sudden acceleration, and braking.
3. Weight: Approximately 5.2 - 5.5 kg per piece.
4. Function positioning: It belongs to the metal bracket of the engine suspension system, not including the rubber shock absorber block; the rubber block has its own part number WG9725590660. The bracket transmits the weight of the engine rear end to the rear suspension rubber pad, isolates the engine vibration from being transmitted to the frame, and constrains the engine displacement.
Acts as the connecting transition piece between engine flywheel housing and rear engine mounting rubber cushion.
Bears the rear‑side weight of WP10 / WP12 engine, transfers engine load to chassis frame via rubber mount cushion.
Restrains engine displacement under acceleration, braking and rough road conditions; prevents excessive engine shifting.
Cooperates with rear mounting rubber cushion to isolate engine vibration, avoid vibration transferring to truck frame and cab.
Maintains correct alignment between engine and transmission, protects peripheral pipelines and components from collision damage.
Note: This is metal bracket only, rubber cushion (WG9725590660) is NOT included.
Surface treatment: Anti‑rust primer coating, resist mud, salt‑spray and corrosion for heavy‑duty working environment.
Precision machined mounting holes, perfect bolt position, direct replacement for OEM part, no modification needed.
Matched OE pair: Right WG9725593028; Left WG9725593027. Cannot interchange left and right.
Weight: approx 5.3kg / pc.
Application: SINOTRUK HOWO‑T7H, HOWO‑TX, HOHAN, SITRAK C7H for Weichai WP10 WP12 engine (dump truck, tractor, mixer truck).
FAQ
Q: What is OE number for this engine rear bracket?
A: OE NO. WG9725593028 (Right side). Matching left side OE: WG9725593027. One truck needs 1pc left +1pc right.
Q: Which trucks & engines does it fit?
A: Fits SINOTRUK HOWO T7H, TX, HOHAN, SITRAK C7H, matched with Weichai WP10, WP12 engine. Suitable for dump truck, tractor, cement mixer truck.
Q: What are the failure symptoms of this bracket?
A: Visible crack or deformation on bracket, heavy engine vibration, abnormal shaking, rubber cushion damaged quickly, abnormal knocking noise while accelerating or braking. Must replace broken bracket immediately.
Q: What is your MOQ and lead time?
A: MOQ 1 piece. Goods in stock can ship within 2‑5 working days.
