It is a safety fastening component for drum brakes; a hollow copper tube rivet, used to firmly rivet the brake friction pads (brake pads) onto the brake shoe. It is a key safety component for heavy truck braking. If the rivet breaks, the brake pads may come off, causing a significant risk of brake failure. Therefore, it is essential to carefully identify and purchase the original rivets. Do not be tempted by low prices.

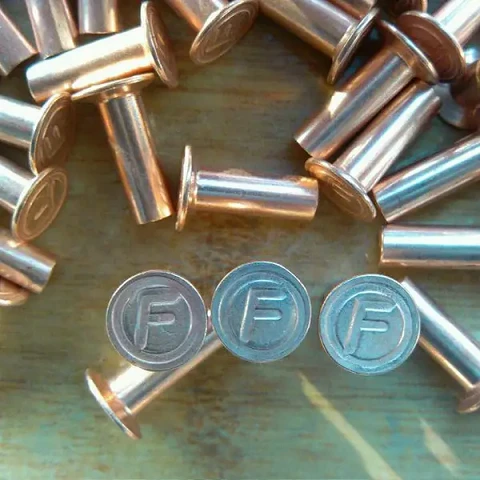

Original Factory: Purple copper (red copper / pure copper hollow rivets), with high copper purity, good toughness, and high heat resistance; the rivets will not crack even under repeated high-temperature braking; they can be easily uniformly flanged during riveting without cracking; resistant to brake thermal shock, anti-vibration fatigue, and in line with the original factory braking standards of Shagang.
Product Functions
1. Mechanical Fastening: Firmly fixes the brake friction pads onto the brake shoe body, capable of withstanding the huge shear force during braking.
2. Heat Resistance and Vibration Resistance: During the operation of the brake, it generates high temperatures and the vehicle experiences vibrations. The rivets must not break or loosen to prevent the brake pad from falling off.
3. Riveting Deformation: Hollow tubular structure. After the riveting tool strikes, the tail part uniformly outward bends to form a lock head, locking the brake pad and the shoe together.
Features

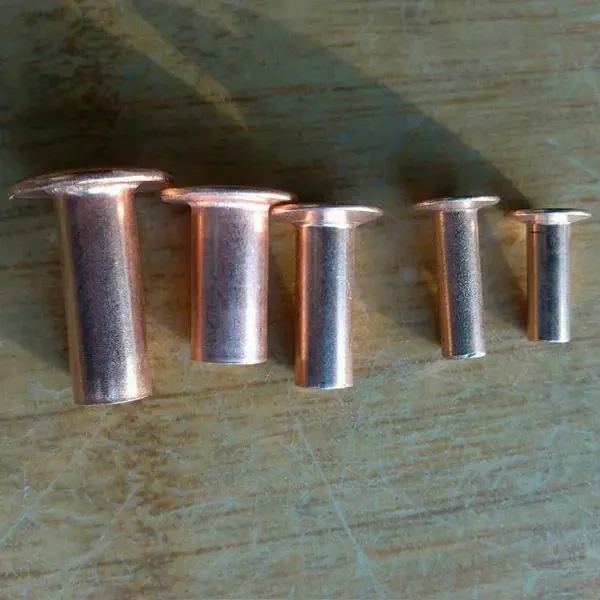

1. Dimension standard: Outer diameter 10mm, length 22mm, flange round head, hollow tubular structure, common hole position standard.
2. Original factory copper material: High toughness, high temperature resistance, anti-thermal fatigue, suitable for heavy truck high-strength braking conditions.
3. Strict dimensional tolerance, matching riveting hole diameter, riveting operation is not prone to cracking.
Compatible with truck models
All drum axle models of Sinotruk (China Heavy Industry):
HOWO, HOWO-T7H, HOWO-TX, HOWO A7, T5G, HOHAN, SITRAK C7H/C9H;
Coverage: Tractors, Dump Trucks, Mixers, Sand and Gravel Heavy Trucks, compatible with drum drive axles of AC16, MCY13, etc.
Suitable for Sinotruk drum axle brake pads for 10-ton, 13-ton, and 16-ton trucks (drum brakes)
• Brake pad for AC16 axle
• Drum brake shoe for MCY13 axle
• Drum rear axle brake pad for HOWO TX/T7H
The diameter of the rivet hole must be 10mm to use WG9231340068; the hole size must match the rivet to ensure it can be inserted.
Note: Each brake shoe requires 8-12 rivets, and a set of axles (4 brake shoes) requires a large number of rivets.

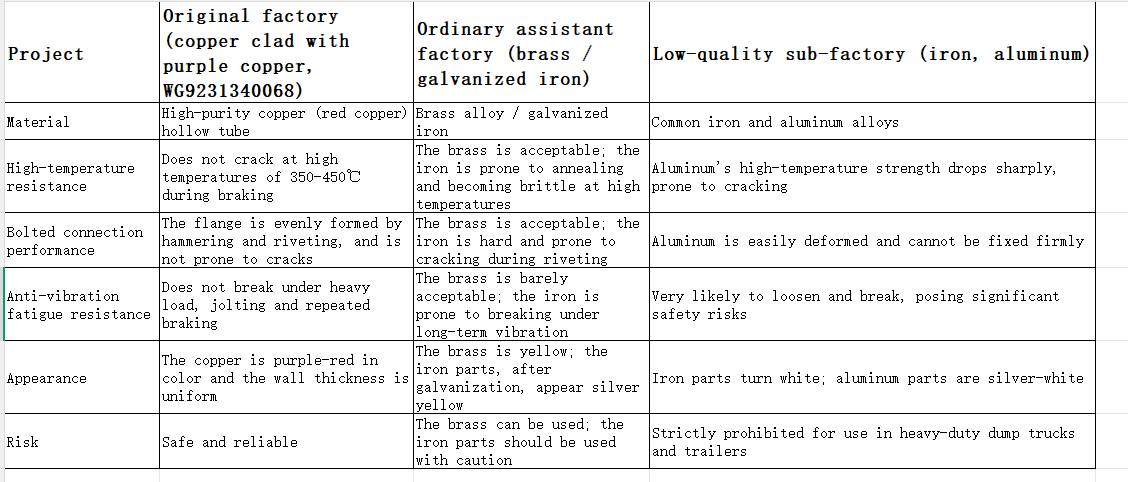

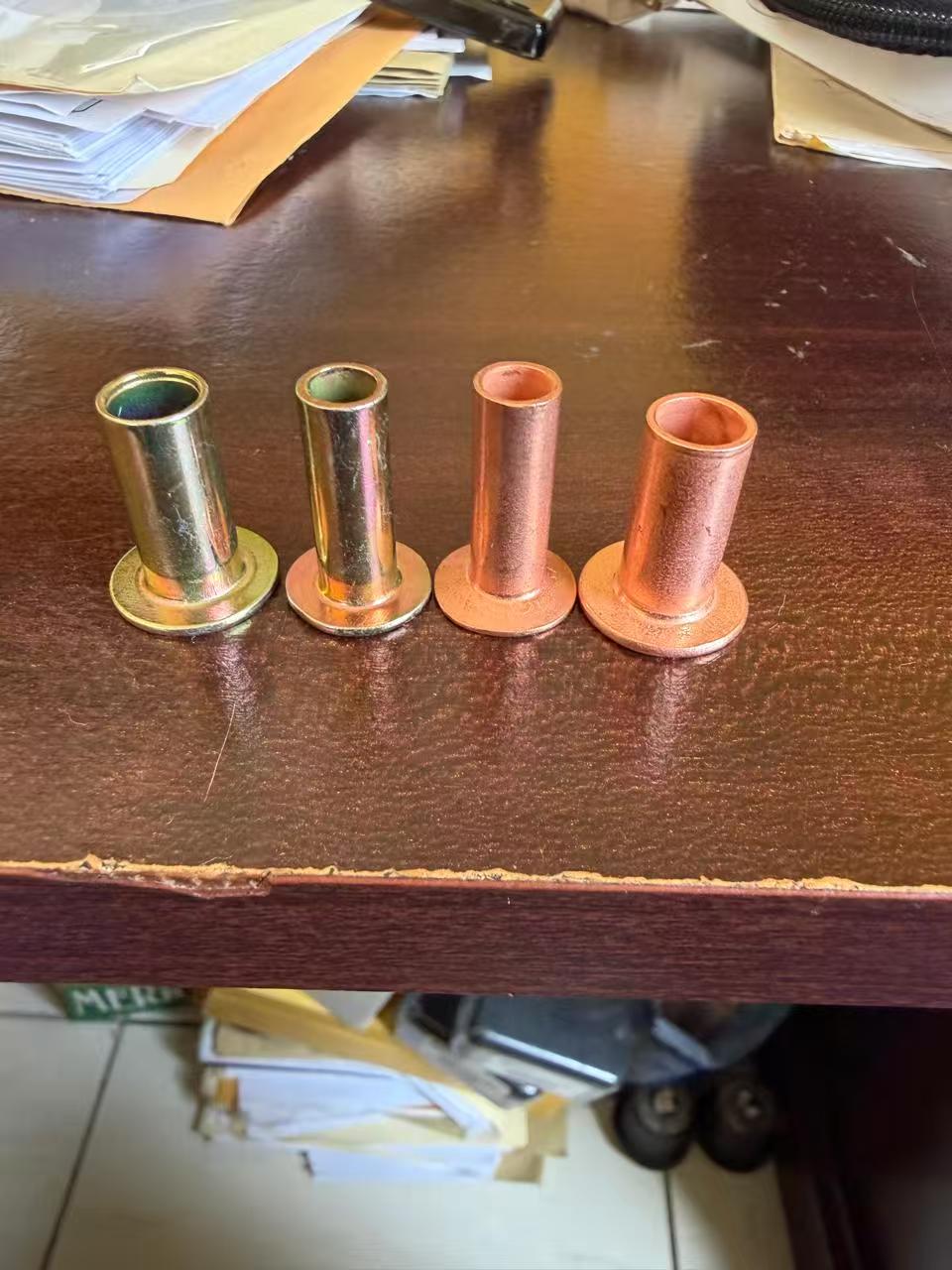

Comparison of different material rivets:
FAQ
Q: What material is original?
A: Original is pure copper (red copper). Some aftermarket items use brass, steel or aluminum. Steel / aluminum rivets are not recommended for heavy‑load truck.
Q: Which truck fits?
A: Fits SINOTRUK Howo, T7H, TX, A7, T5G, HOHAN, SITRAK C7H with drum brake axle (AC16, MCY13). Only for drum brake shoe lining, NOT for disc brake.
Q: Can I reuse old rivets?
A: No. Must use new rivets every time you replace brake lining. Old rivets get fatigue after heat and vibration.
Q: What risk if using poor‑quality rivets?
A: Low‑quality steel/aluminum rivets may crack under high braking temperature. Brake lining may fall off, cause brake failure, very dangerous.
