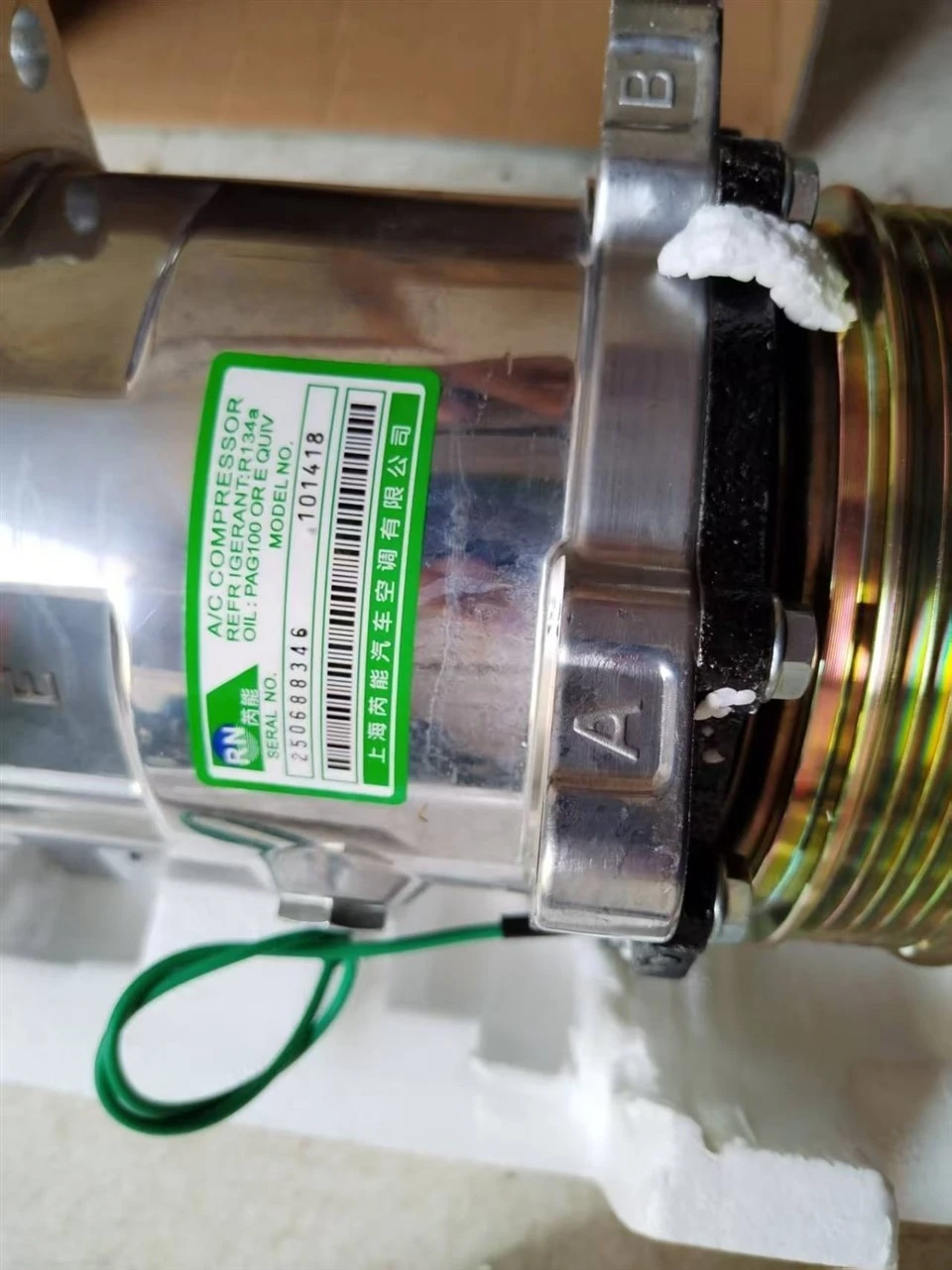

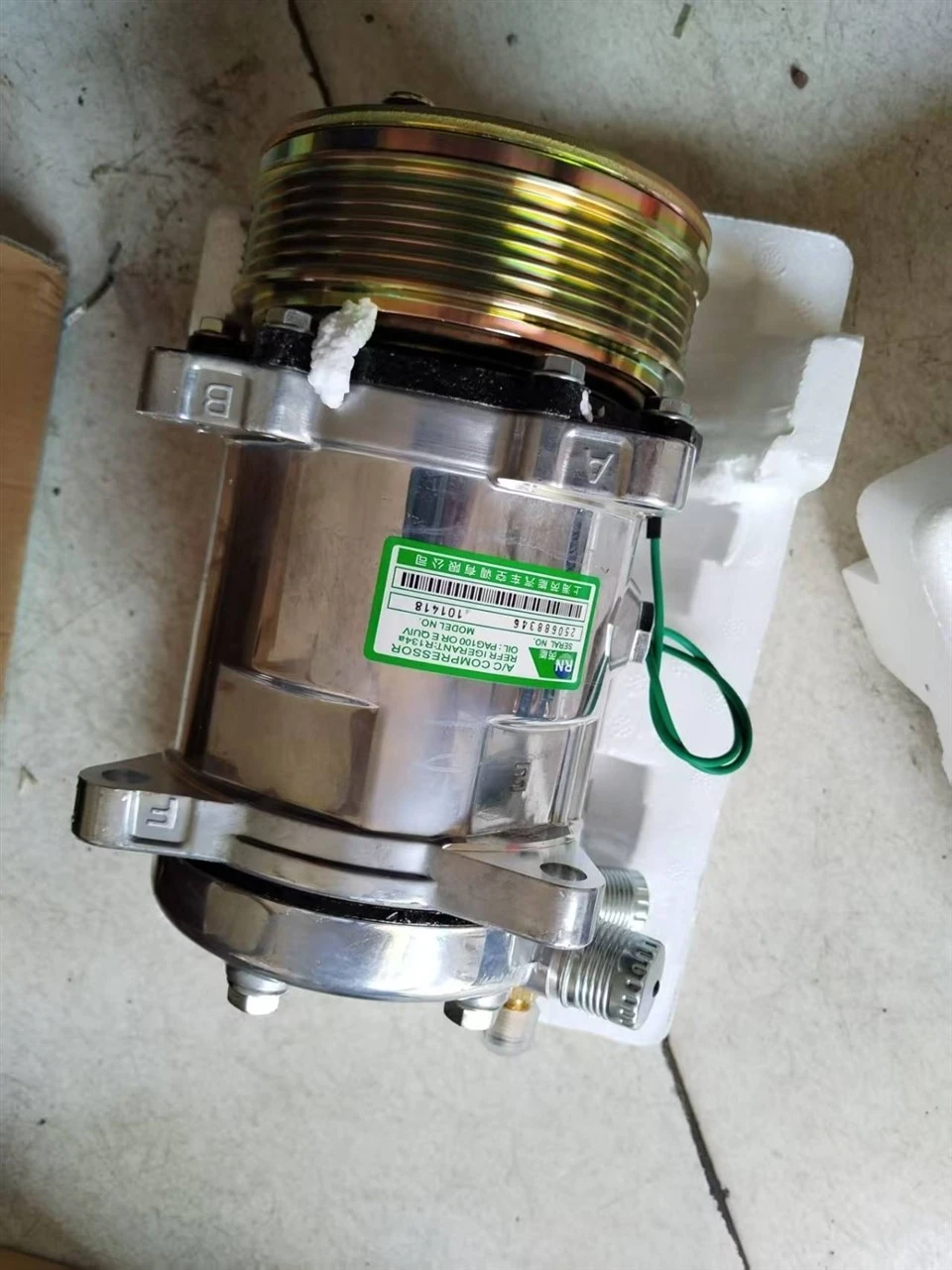

Shanghai RENENG RN Model 101418 Air Conditioning Compressor (SE508 / 508 series, 6PK, 24V)
Original Equipment Manufacturer (OEM) part number (Foton original part number)
1. WG1500139016
2. Exchange of OE: WG1500139006, WG1500139009. These three OE parts can be directly interchanged for installation.
Model: SE508 (508), 6PK pulley, 24V electromagnetic clutch, single green magnetic suction control cable
• Refrigerant: R-134a
• Refrigeration oil: PAG-100

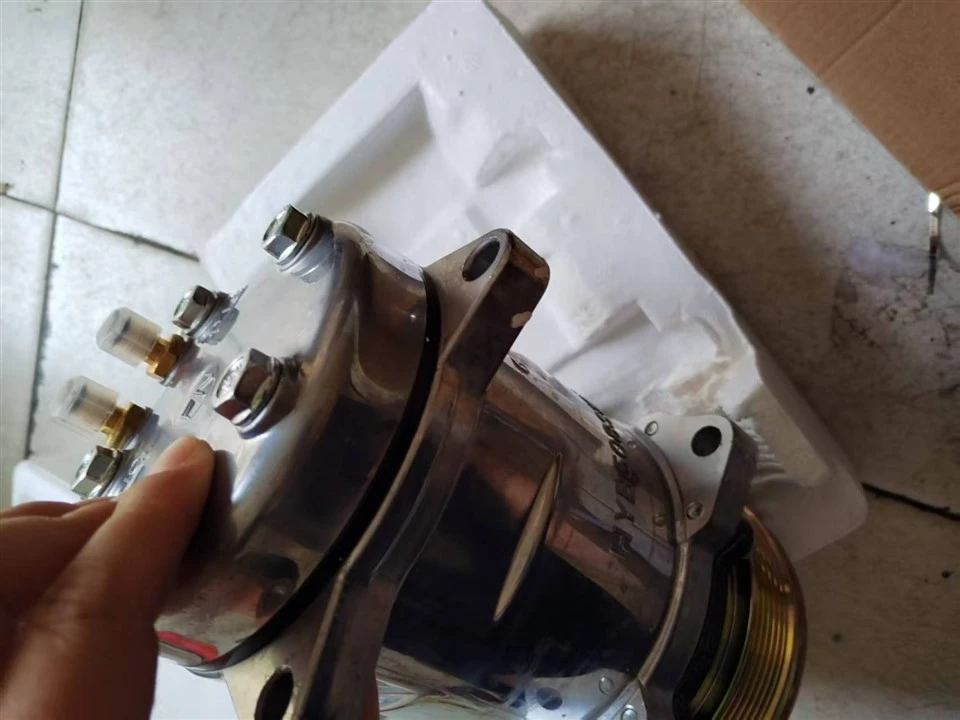

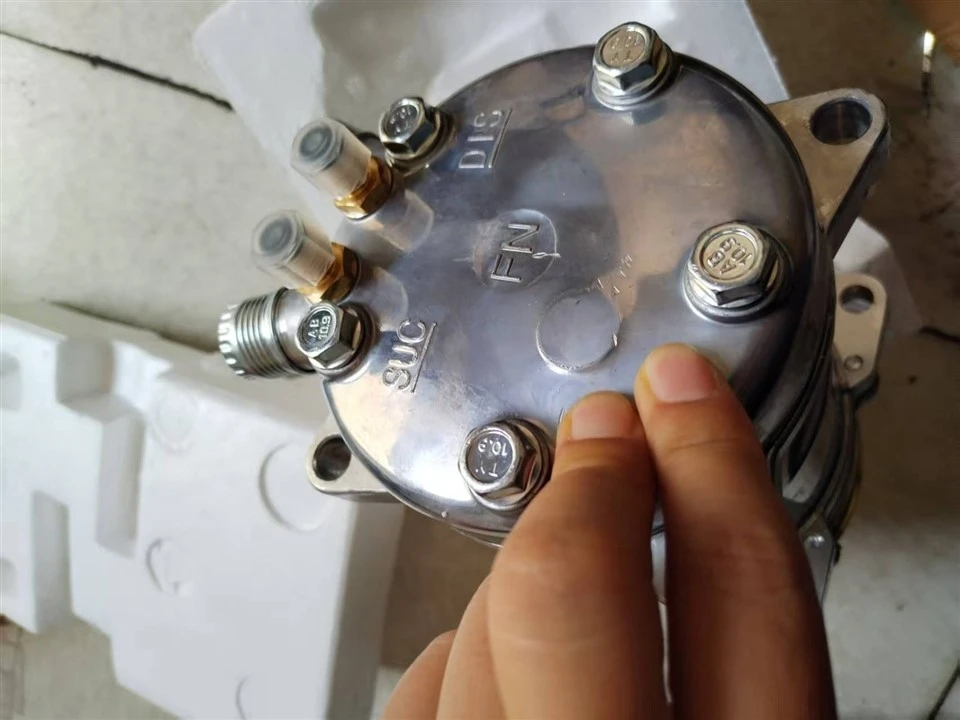

• Interfaces: A/B high and low pressure interfaces, standard 508 compressor interface position
Common Faults
1. No Cooling: Electromagnetic clutch coil burned out (internal breakage of the green lead wire)
2. Refrigerant Leakage: Shaft seal aging, leakage at high and low pressure interface seals
3. Strange Noise and Shaking: Internal valve plate worn out, lack of refrigerant oil
Installation Instructions
1. When installing the new machine, make sure to add PAG100 refrigerating oil; for the old system, the pipes must be cleaned and the drying bottles replaced.
2. Voltage confirmation: This model is 24V; do not use it on 12V vehicles.
3. After vacuuming, add R134a refrigerant.
FAQ
Q: Which truck does this compressor fit?
A: Fit for Sinotruk HOWO old‑series 336,380,440 and Golden Prince heavy‑duty truck (tractor, dump truck, mixer truck). 24V, 6PK pulley. Not for Howo T7H / T5H new model.
Q: What are interchangeable OE numbers?
A: Main OE number: WG1500139016. Interchangeable OE: WG1500139006, WG1500139009. Note: 101418 is internal factory model, not truck OEM part number.
Q: What are the technical specifications?
A: Model SE508, 24V electromagnetic clutch,6PK pulley. Refrigerant R‑134a, requires PAG‑100 compressor oil. Single green wire for clutch control.
Q: Warranty policy?
A: 3‑month warranty for non‑artificial damage. Warranty void for wrong voltage, lack of oil, contaminated refrigerant and man‑made damage.
