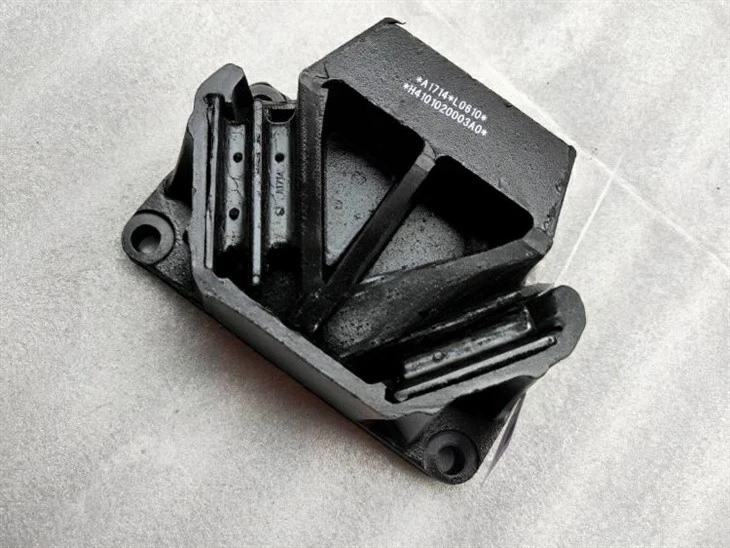

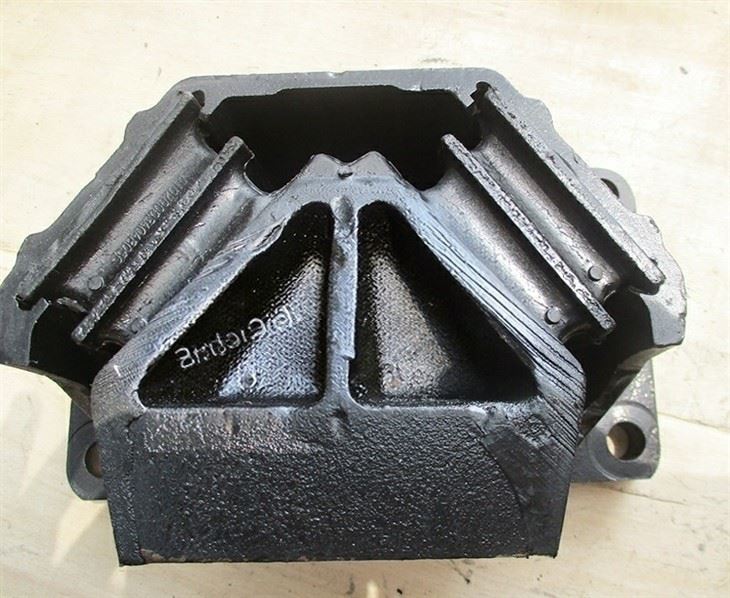

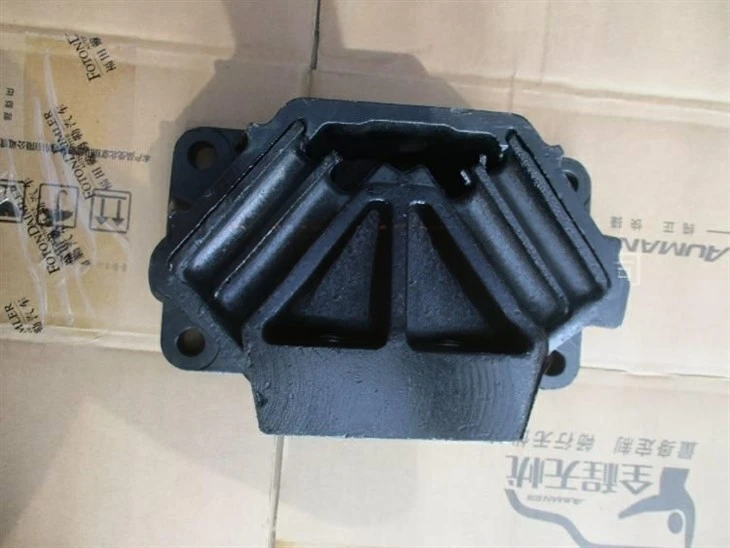

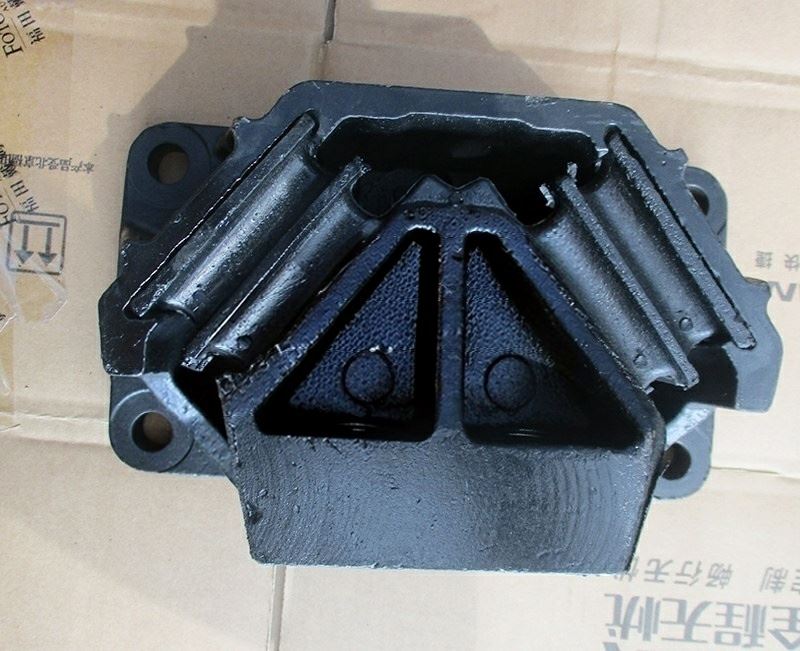

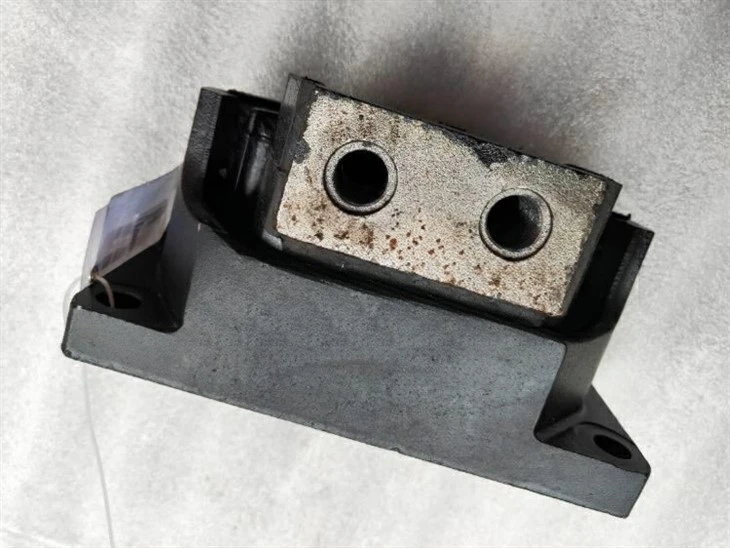

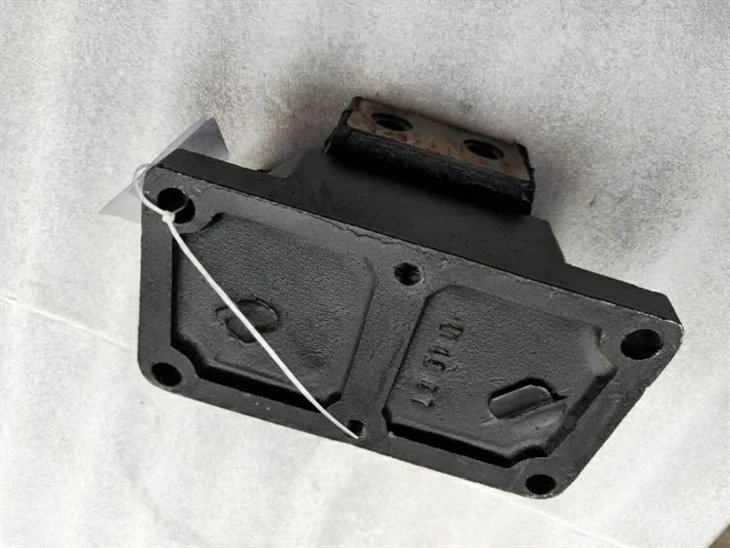

ENGINE MOUNT H4101020003A0

The main function of the engine support frame is to support and position the engine. By installing the engine on the vehicle body, the support frame ensures its stable position to prevent the engine from moving during driving. Common support methods include three-point support and four-point support. In three-point support, the front support is fixed to the frame through the crankcase, and the rear support is fixed through the transmission housing; in four-point support, the front support is also fixed through the crankcase, and the rear support is fixed through the flywheel housing.

Secondly, the support frame can effectively alleviate the vibrations and noises generated during the operation of the engine. When the engine is running, it will produce vibrations. Without the support frame, the excessive vibrations will affect the stability of the vehicle's operation. The rubber material inside the support frame has a good shock absorption effect and can significantly reduce vibrations and noises.

The support frame can also control the vibration of the engine. For instance, some systems that use four-point support and have torsion bars can effectively reduce the engine's vibration and the vibration at idle speed, making the engine operate more stably.

In addition, the support frame can also balance the torque generated during engine startup. Through the engine support pad, the load can be effectively distributed, preventing concentrated torque from causing damage to the engine.

The longitudinal tie rods on the support frame can also prevent the engine from experiencing longitudinal displacement due to the deformation of the elastic elements when the vehicle is braking or accelerating. This ensures that the engine remains stable under various driving conditions.

A well-made support frame will not transfer vibrations to the vehicle body, which helps to improve the vehicle's handling and steering feel, and enhance the driving experience. If the support frame is damaged, the engine will shake violently and may produce abnormal noises, which will affect the normal operation of the vehicle.

The function of the engine support frame is to support and position the engine. The engine support usually supports the engine together with the vehicle frame through the transmission housing and the flywheel housing. The common support methods include three-point support and four-point support. The front support of three-point support is supported on the vehicle frame through the crankcase, and the rear support is supported on the vehicle frame through the transmission.
