Foton Water Pump 3698067/3698688

Engine compatibility: Foton Cummins ISG11/ISG12/ISG13, X11/X12/X13, Euro V/Euro VI diesel engines
Vehicle compatibility: Foton Ouman GTL, EST, ETX full series of heavy truck tractors, dump trucks, cargo trucks, mixer trucks
Basic physical parameters
V-belt pulley: 10PK multi-slot V-belt pulley
Material: Pump body die-cast aluminum alloy, anti-corrosion nylon / stainless steel impeller, silicon carbide water seal
Net weight per unit: approximately 2kg

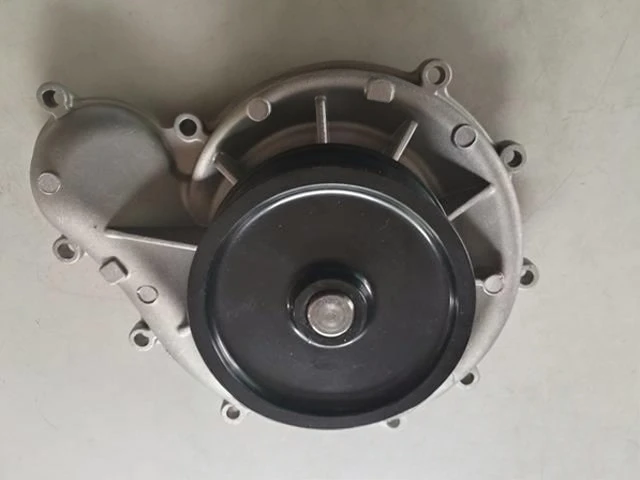

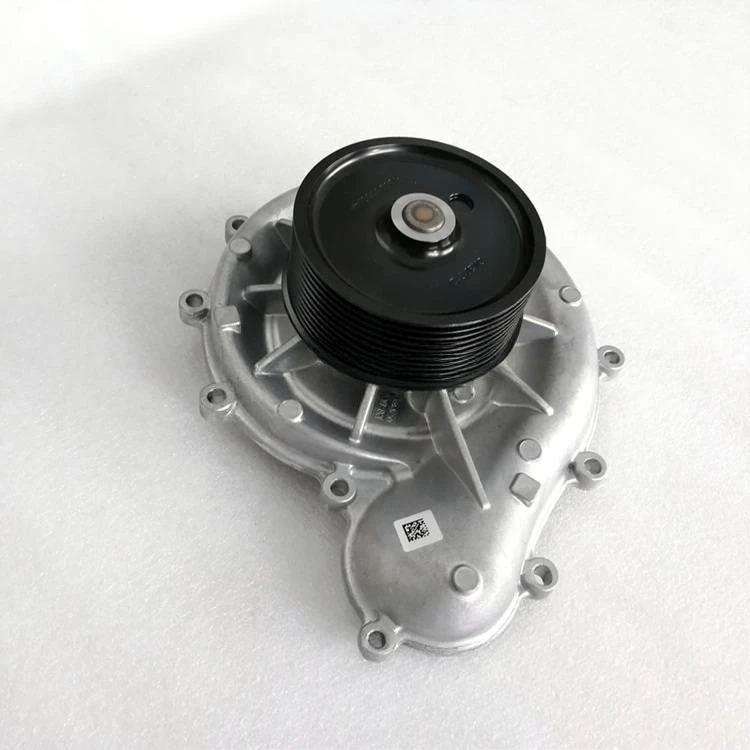

External aluminum alloy pump housing
Special-shaped volute flow channel, significantly increasing water capacity, 10 fixed bolt holes, directly fitting into the engine cylinder block cooling water channel; the side arc expansion cavity optimizes water flow and reduces high-temperature air resistance.

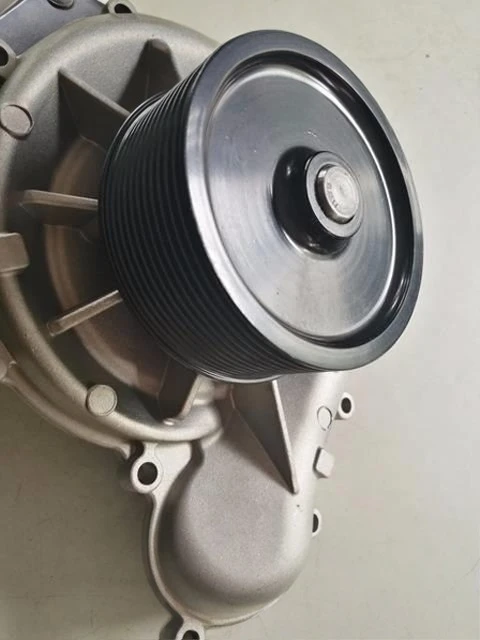

10 belt-driven pulleys
Synchronous drive of engine crankshaft belt pulley to rotate the internal main shaft, all ISG models have uniform belt slots, no need to distinguish power segments.
Internal cooling mechanism

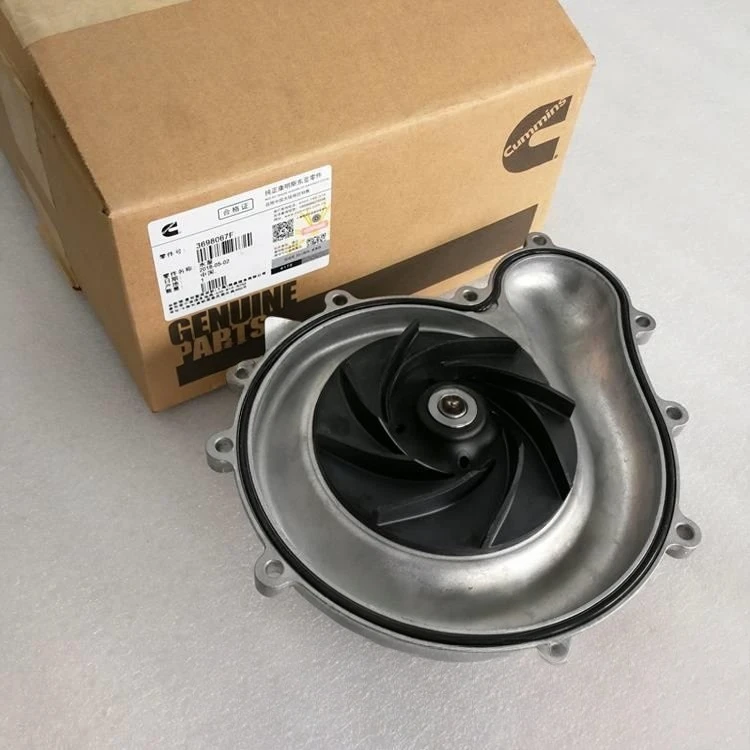

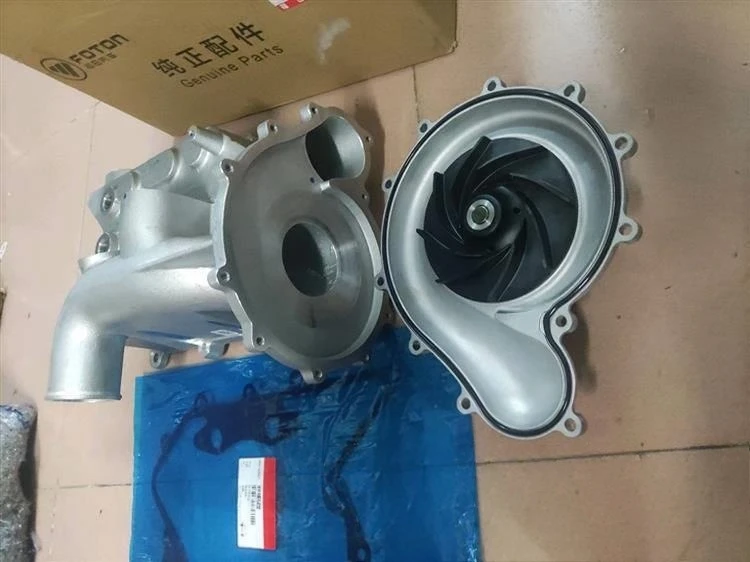

7-blade large-flow centrifugal impeller, enhancing the circulation flow of coolant;
Double-layer composite water seal + graphite bearing, resistant to high temperatures and anti-corrosion of antifreeze;
Built-in water drainage observation hole, when water leaks, it can directly determine the failure of the water pump.
Function: Forced circulation of engine antifreeze, removing heat from the cylinder block, cylinder cover, EGR cooler, controlling the working water temperature of the entire machine, is the core component of the ISG engine cooling system.
