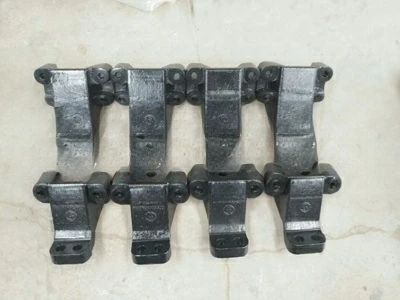

Front right engine bracket DZ9112590186

The function of the engine bracket is to support and position the engine. The engine bracket usually supports the engine together with the vehicle frame through the transmission housing and the flywheel housing. The common supporting methods include three-point support and four-point support. The front support of the three-point support is supported on the vehicle frame through the crankcase, and the rear support is supported on the vehicle frame through the transmission.

The suspension system serves as a component that connects the powertrain and the vehicle body. Its main function is to support the powertrain, reduce the impact of the powertrain vibrations on the entire vehicle, and limit the vibration amplitude of the powertrain. It plays a very significant role in the NVH performance of the entire vehicle. Now, let the editor of Electric Power Company introduce to you in more detail the functions of the engine suspension. What is the suspension system?

The function of the engine mount, what is the suspension system? -- The reason is that the engine itself is an inherent vibration source, and it is also subject to various external vibration disturbances, which can cause damage to components and discomfort for the passengers. Therefore, a suspension system is set up to minimize the vibration transmitted from the engine to the support system to the lowest extent.

Generally speaking, the following requirements should be met for the engine mounting system:

1. It should be able to withstand both dynamic and static loads under all operating conditions, and ensure that the displacement of the engine assembly in all directions remains within an acceptable range, without interfering with other components on the chassis. Additionally, no component damage should occur before the engine overhaul.

2. It should effectively isolate the vibration generated by the engine from being transmitted to the frame and the driver's cab, thereby reducing vibration noise.

3. It should effectively isolate the vibration transmitted to the engine through the suspension due to uneven road surfaces, thereby reducing vibration noise.

4. The bending moment at the connection surface between the engine block and the flywheel housing should not exceed the allowable value specified by the engine manufacturer.
