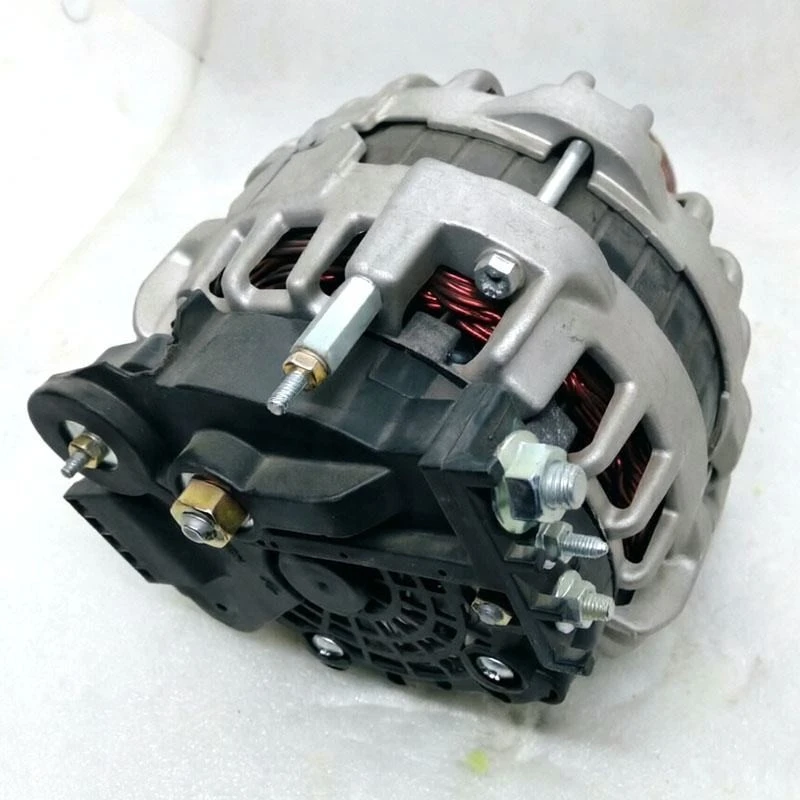

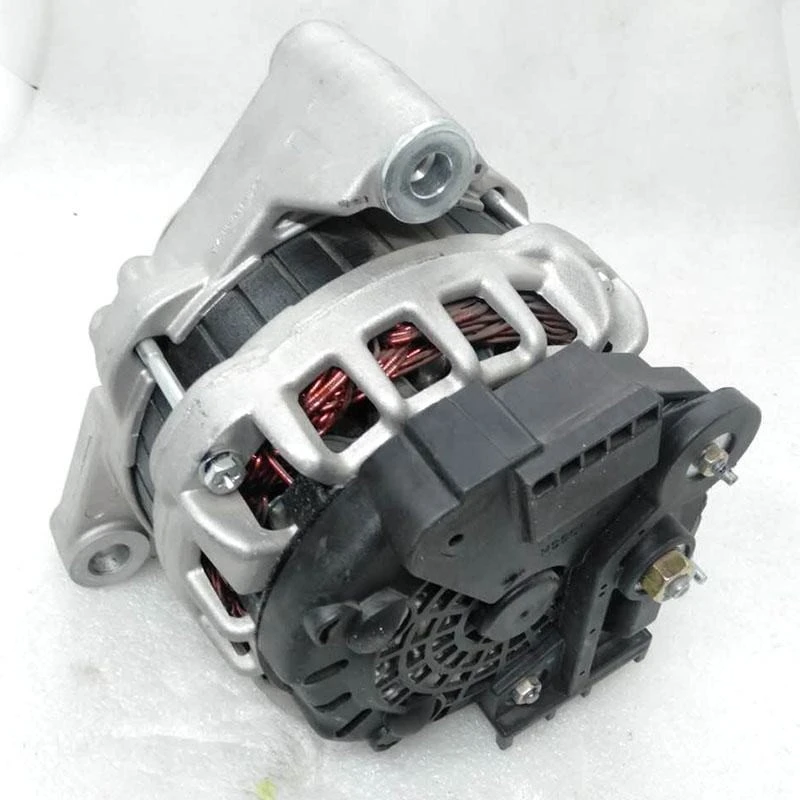

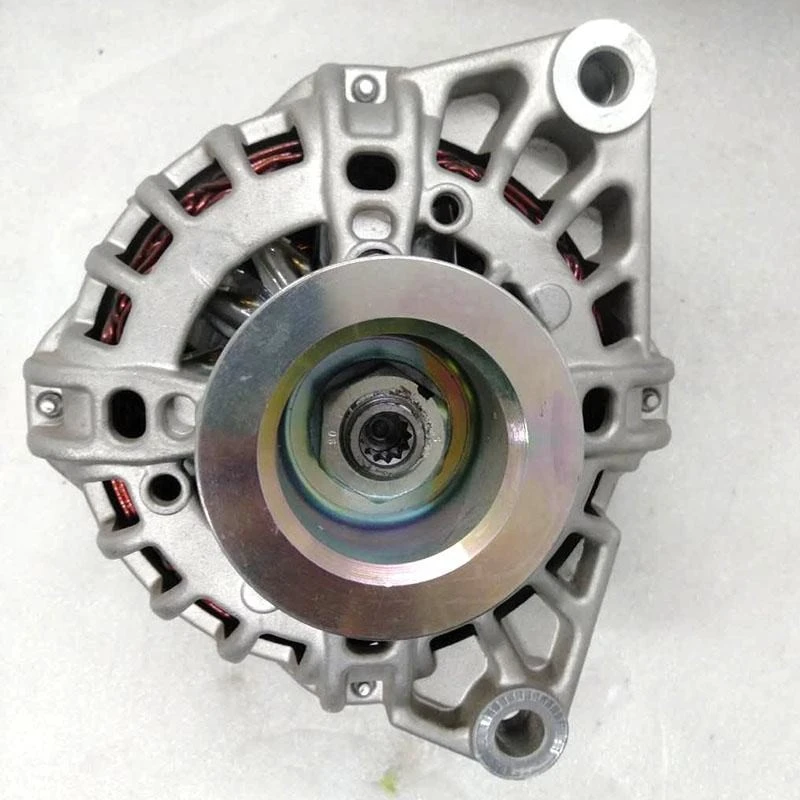

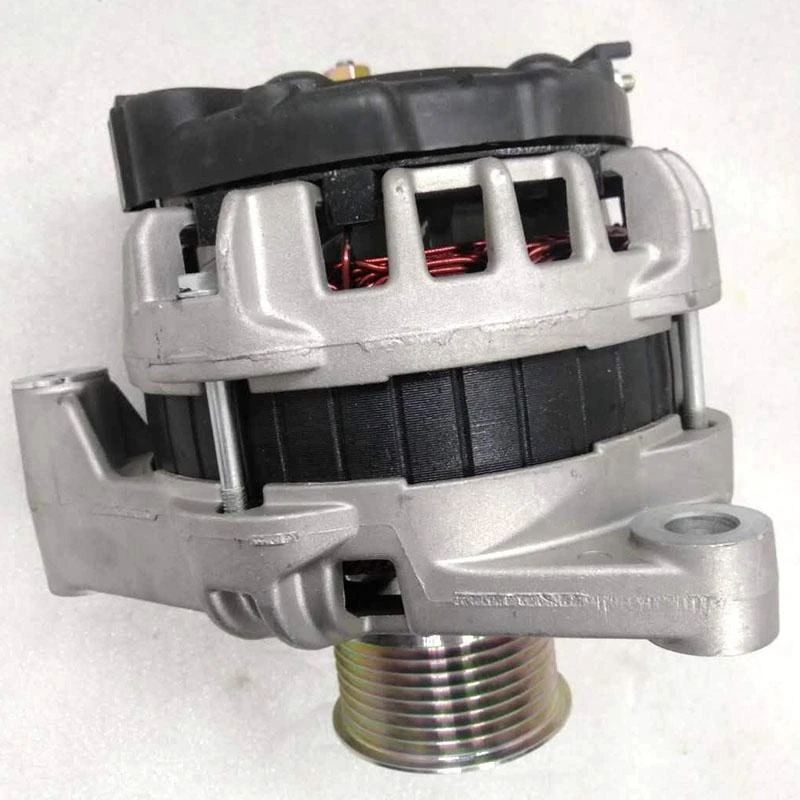

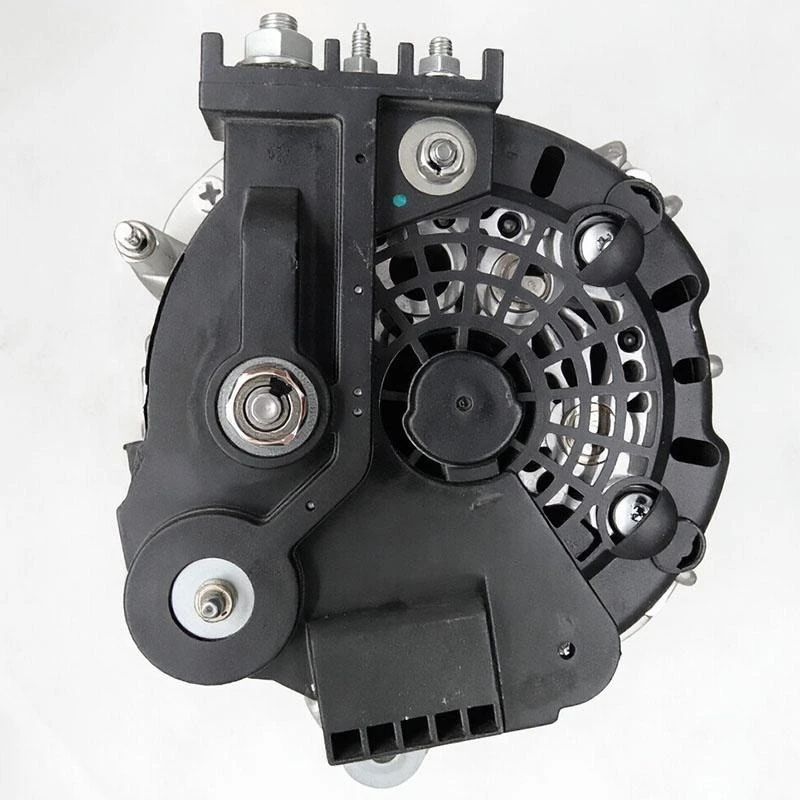

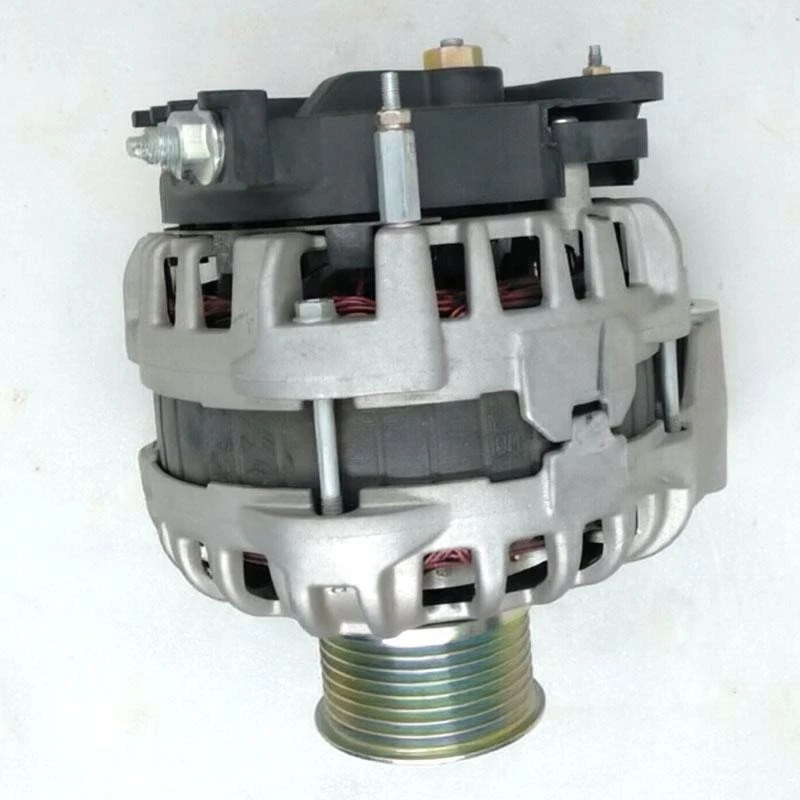

Alternating Current Generator 612600090816 F000BL07D2 F000BL071F

Rated Voltage: 28V (24V for commercial vehicle system)
Rated Output Current: 80A, Idle Output 34A, battery charging requirements
Rated Power： Approximately 2240W
Excitation Method： Built-in integrated circuit voltage regulator (IC voltage stabilization, stabilization accuracy ±0.5V)
Winding Material： Original factory pure copper wire coil, high temperature resistant, less likely to burn the coil
V-belt Pulley： 8PK multi-slot V-belt pulley, compatible with Weichai WP10 engine 8PK fan belt
Installation Structure： Single mounting corner fixation, 2-hole installation bracket, Weichai WP10 dedicated installation position

Heat dissipation structure: Dual centrifugal fans at the front and rear, open cooling air duct, less prone to overheating and demagnetization during heavy load and long downhill driving
Dust-proof and waterproof: The rear cover is equipped with a dust-proof grille, suitable for harsh working conditions in construction sites and dump trucks
Wiring terminals: B + main output terminal, D + excitation indicator terminal, standard Wuxi engine wiring plug Advantages
Original Bosch regulator, ensuring stable voltage, does not burn the bulb or charge the battery
80A high current, suitable for installing air conditioners, parking heater, vehicle monitoring, inverters and other high-power electrical appliances
The original installation size is fully compatible, and direct replacement is possible without modifying the bracket or belt
Distinguishing differences from aftermarket: aftermarket has multiple aluminum-wound windings, the regulator is prone to failure, and the idle power generation is insufficient, and it is prone to battery depletion during long-distance travel
