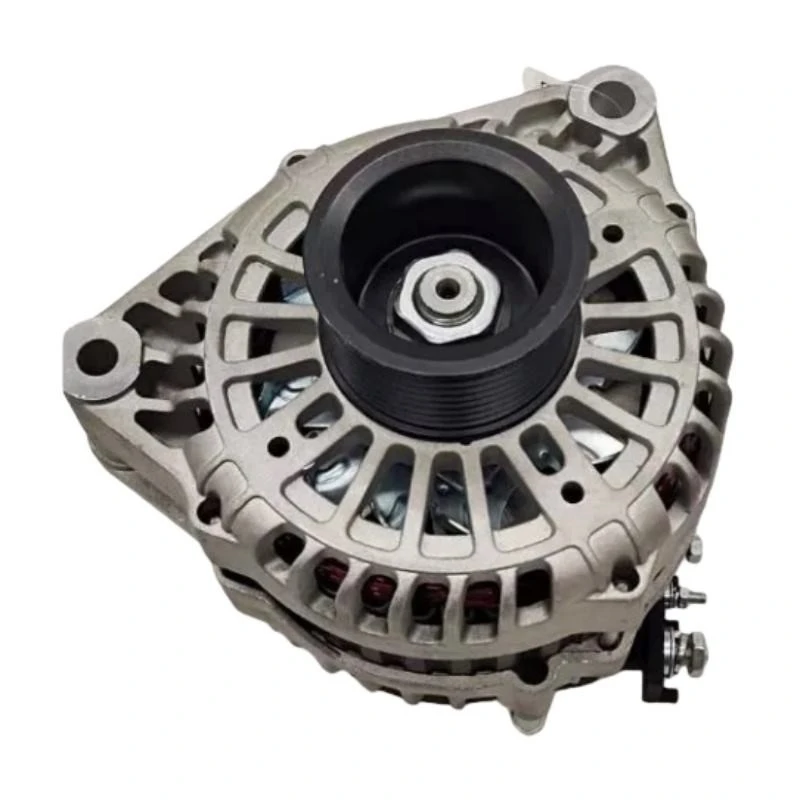

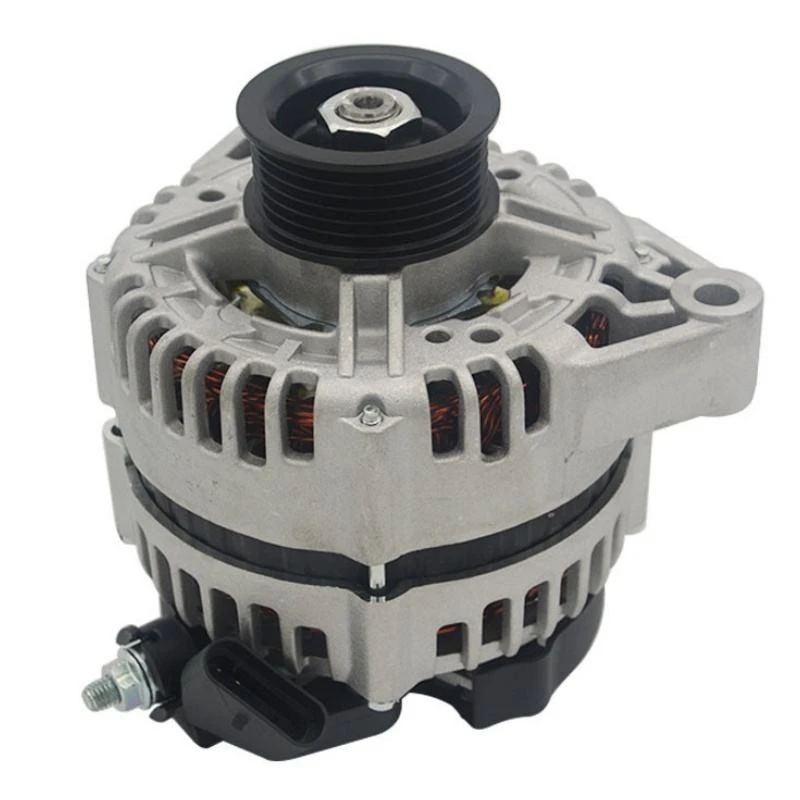

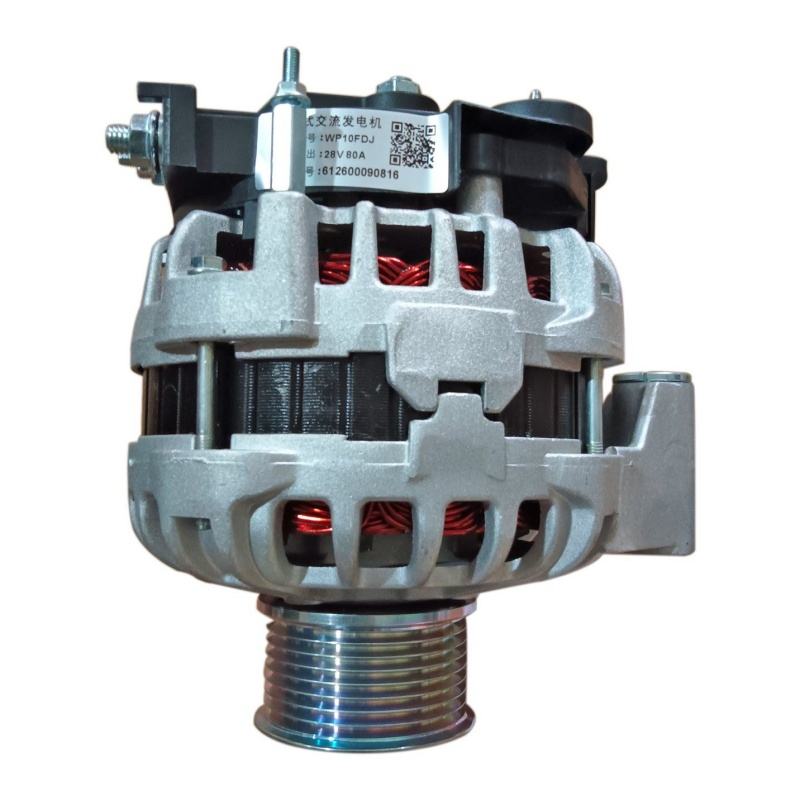

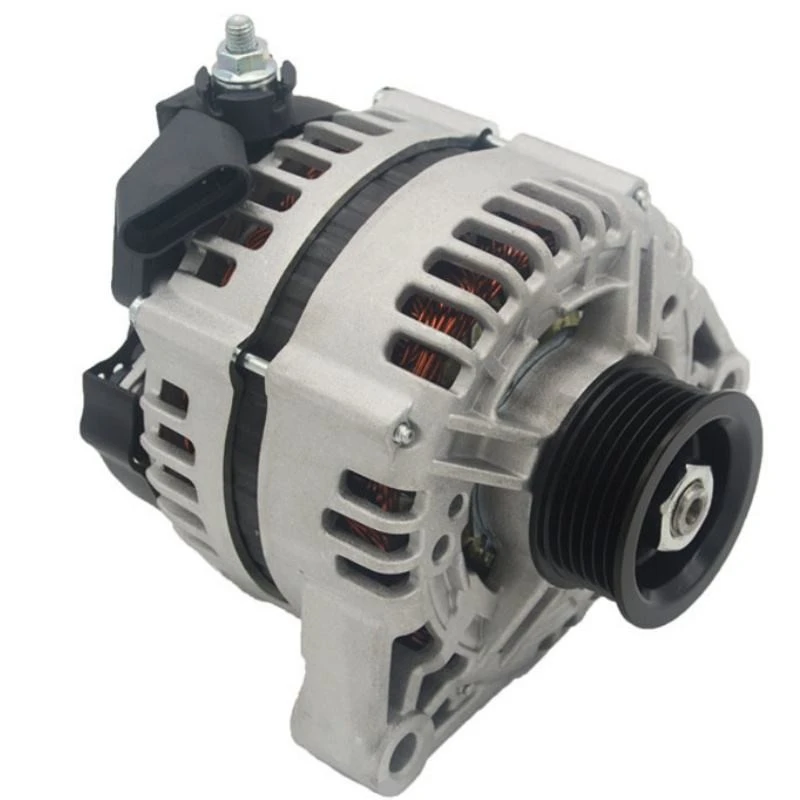

Engine Part Number: 612600090816 (Vehicle manufacturer's installed component number)
Bosch SEG Original Internal Part Number: 1000179901 (Motor body serial number, engraved on the motor housing)
Matching Bosch Model: F000BL0723, F000BL07D2
These are exactly the same generator model. They have the same size, parameters, and installation, and can be directly interchanged; only the numbering system is different: Wuxi uses 612600090816 externally, while Bosch uses 1000179901 for the body coding.
Machine type: Three-phase AC built-in stabilized silicon rectifier generator JFZ280-1600
System voltage: 28V (24V for heavy truck battery system)
Rated output: 80A, rated power 2240W
Idle output: ≥34A, no power loss at idle, suitable for parking air conditioning
Stabilization range: 27.8–28.5V, integrated IC regulator in one unit, cannot be separately disassembled and replaced
Winding: Original factory pure copper stator coils, H-level high-temperature resistant insulation
Rectification structure: 6-tube full-wave rectifier bridge, aluminum heat sink body
Compatible engines
Weichai WP10, WD615, WP10 Euro III/Euro IV/Euro V diesel 6-cylinder 10L engines
Mainstream heavy truck models
Shanzhou: Delong F3000, X3000, M3000, Aolong
Shagang: Haowo, Haohan, Jinsheng, Steyr
Foton: Ouman ETX, GTL, EST
Construction vehicles: Sany, Huali, Jianghuai Gelefeng concrete mixer trucks, construction waste trucks, mining machinery
