Official Name: Integrated Alternator
Original Part Number: 1001828445, Matched Internal Model: JFZ2716D-VPP (Petrella matching model)
Compatible Power: Weichai WP10, WD615, WP6 series diesel engines
Compatible Vehicles / Equipment
Haowo, Haohan, Beiben matching WP10 trucks;
Sany, XCMG, Linke, etc. WP10 loaders, dust trucks, construction machinery;
Alternative Picture Numbers: VG1246090005, 612600090259, etc. Weichai original factory generators

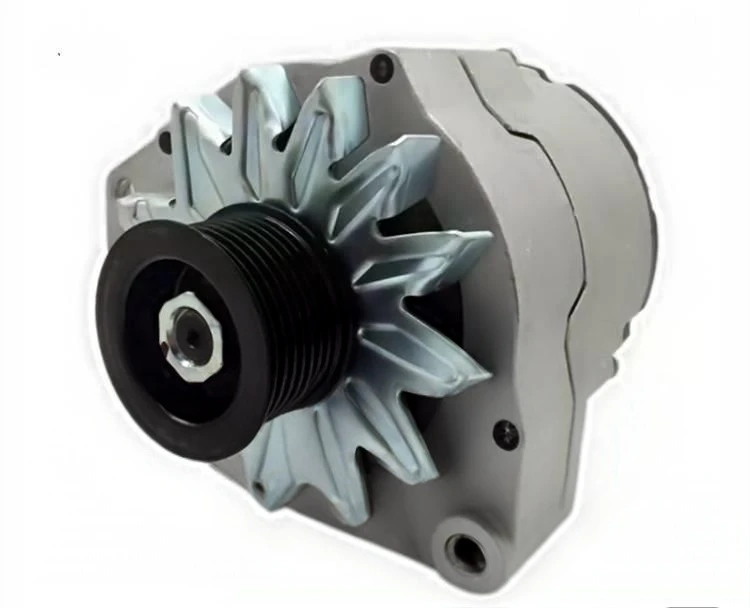

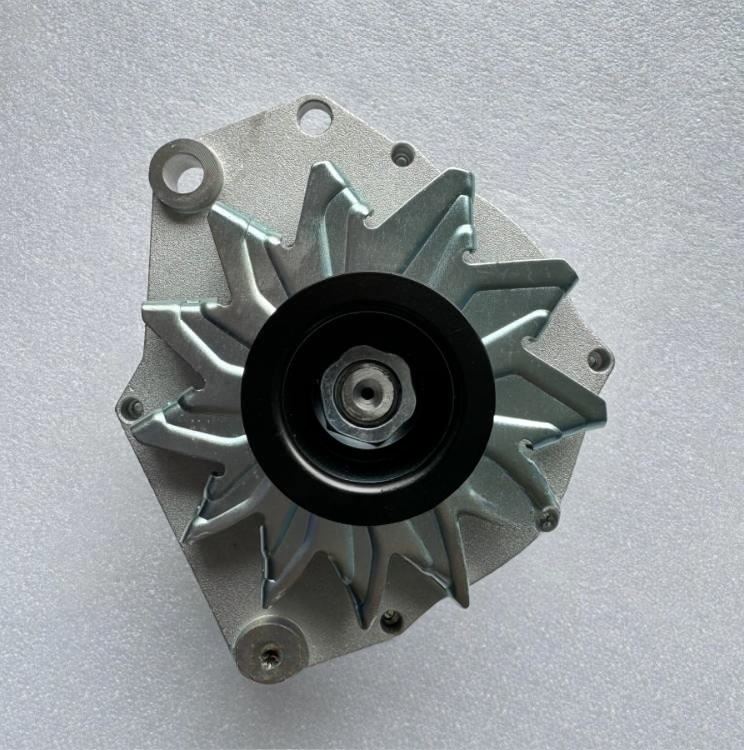

Front end assembly
Double-slot pulley (8PK multi-wedge belt adapter), driven by engine crankshaft pulley;
Aluminum alloy cooling fan blades, high-speed rotating for air cooling;
Inclined angle fixed mounting ears, two bolts fixed on the side bracket of the engine, direct installation without modification.
Central power generation body
Cast aluminum front and rear shells, internal pure copper stator coil and excitation rotor;
High-precision bearings, resistant to high temperatures and able to withstand dust and vibration in construction sites;
The shell has multiple groups of cooling louvers, suitable for heavy-load continuous operation without excessive temperature demagnetization.

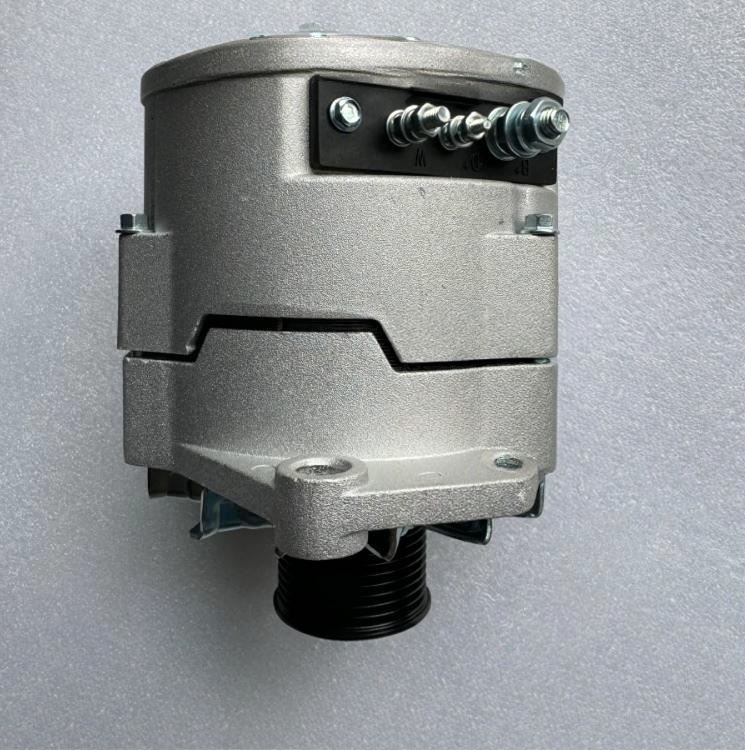

Rear end electrical end cover
Built-in integrated rectifier bridge + voltage regulator (integrated structure, no need for external regulator);
Two connection terminals: B + main power output terminal (connected to the positive terminal of the battery), D + excitation indicator light connection terminal;
Plastic dust-proof rear cover, preventing erosion of rectifier diodes by mud, water, and dust.
The working principle of the entire vehicle
When the engine is running, the belt drives the rotor of the generator to rotate, cutting the magnetic lines of force to generate alternating current;
The internal rectifier bridge converts the alternating current into 28V direct current;
The built-in voltage regulation module maintains a constant output voltage and simultaneously charges the 24V battery of the entire vehicle;
All the electrical appliances in the vehicle (headlights, air conditioning, wipers, post-treatment electronic control, driver's cabin electrical appliances) are all powered by this generator;
After the engine is turned off, the battery stores electricity. When starting, the starter supplies power, and after starting, the generator takes over all the vehicle's power supply.
