WIPER BLADE W25002.08101.01C-2
WIPER BLADE W25002.08101.01C-2
WIPER BLADE W25002.08101.01C-2

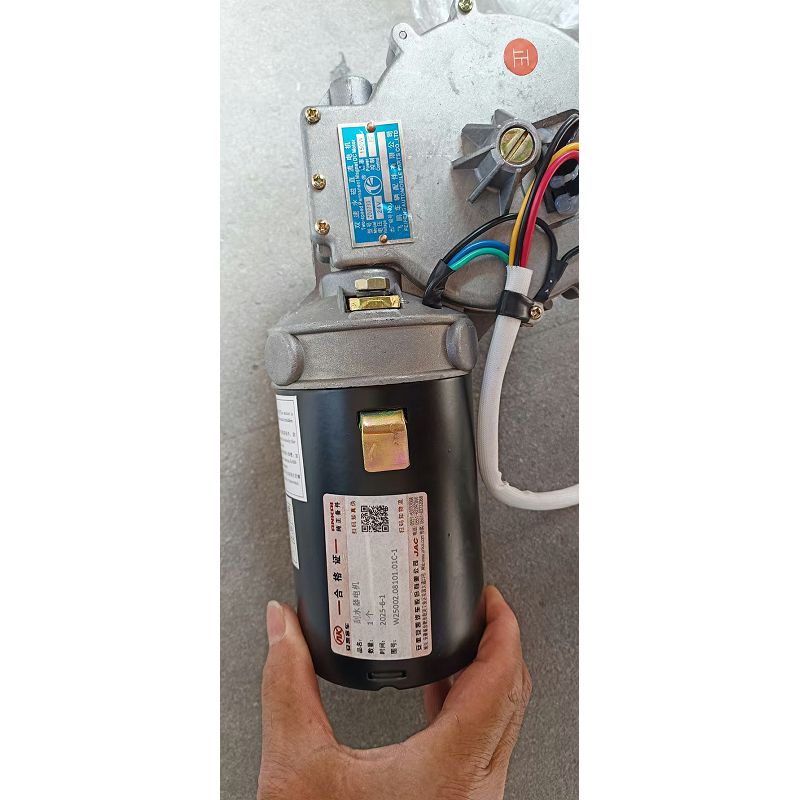

The windshield wiper motor is the power core component of the car's wiper system. It drives the turbine worm gear reduction mechanism through an internal permanent magnet motor, converting the rotational motion of the armature into the reciprocating swing of the wiper arm to achieve the wiper function. This device adopts a three-electrode brush structure to regulate the current intensity, and realizes variable speed control of low speed, high speed and intermittent gears by changing the number of series coils. Its mechanical structure includes a gear reducer, a four-bar linkage mechanism and a reset device. The output shaft is driven by a shift fork and is controlled by a spring reset mechanism to ensure the precise swing trajectory of the wiper arm.
The main components include:
Electromagnetic drive unit: The stator permanent magnets generate a fixed magnetic field, and the rotor windings are energized through the brush frame to form a rotating magnetic field.
Deceleration transmission module: The worm drives the copper-based powder metallurgy worm gear to achieve a reduction ratio of 18:1 to 35:1, and the output shaft is connected to the crank through a conical serrated connection.
Motion conversion mechanism: The output arm drives the four-bar linkage system, and the swing rod ratio is 1:3 to 1:5 to ensure the effective stroke of the scraping arm.
Reset device: The copper ring contacts and reset switch are included. When in the closed position, it automatically returns to the lower edge of the windshield.
Wound type: A magnetic field is generated by the excitation winding, and the magnetic field strength can be adjusted.
Permanent magnet type: Uses neodymium iron boron permanent magnets, which account for the majority of the market share.
Quality inspection includes:
Dynamic torque test: Rotational speed stability under a standard load of 0.6 - 3.5 N·m
Insulation withstand voltage test: 500V/1mA insulation resistance test
Armature balance degree: The dynamic balance quantity is ≤ 15g·mm
Factory Workshop
Our Service
- WE guarantee that we will reply your inquiry/email ASAP.
- WE guarantee that you will get higher-quality products from us.
- WE guarantee that Samples will be sent to you at the earliest.
- WE guarantee that you will be served professionally and efficiently.
- WE guarantee that the products will be delivered ASAP.
- WE guarantee that customized requirements will be accepted.
Why Choose Us?
1. 13years experience.
2. Perfect workmanship. Always committed to research and development.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5. We will reply you within 24 hours.
6. Provide warm and friendly service and after-sale service.
7. Guaranteed the good quality and best service, as you buy from local supplier.
8. Assorted designs, colors, styles, patterns and sizes are available.
9. Customized specifications are welcome.
FAQ
Q: What's the delivery time?
A: Within 3 days for delivery 1*40'HQ container after PO confirmed on both sides.
Q: What's the payment terms?
A: T/T 30% deposit 70% against BL copy ; L/C
Q: Are you factory or trading company?
A: We're factory, and can do exporting ourselves and trading others if you want LCL.
Q: How's your capacity in your workshop?
A: We have 6 production lines in our workshop, can ship 60 *40'HQ containers of PP Corrugated Sheet within 1 month.
Packing & Shipping
Hot Tags: wiper blade w25002.08101.01c-2, China wiper blade w25002.08101.01c-2 manufacturers, suppliers, factory
