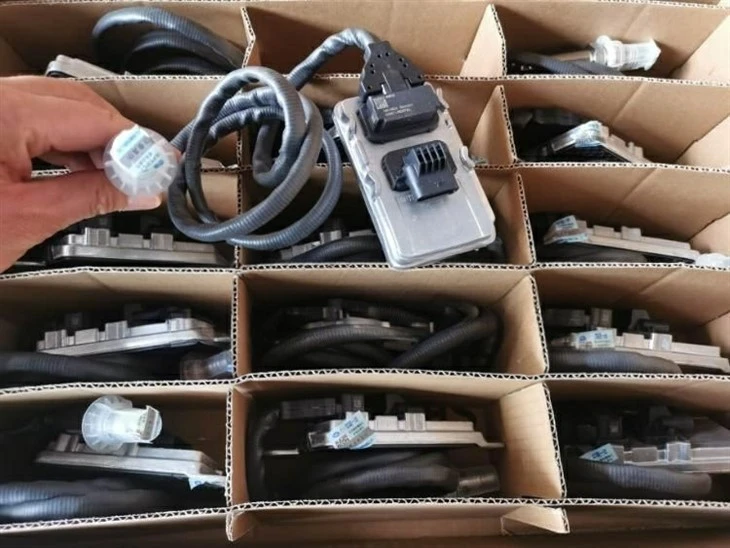

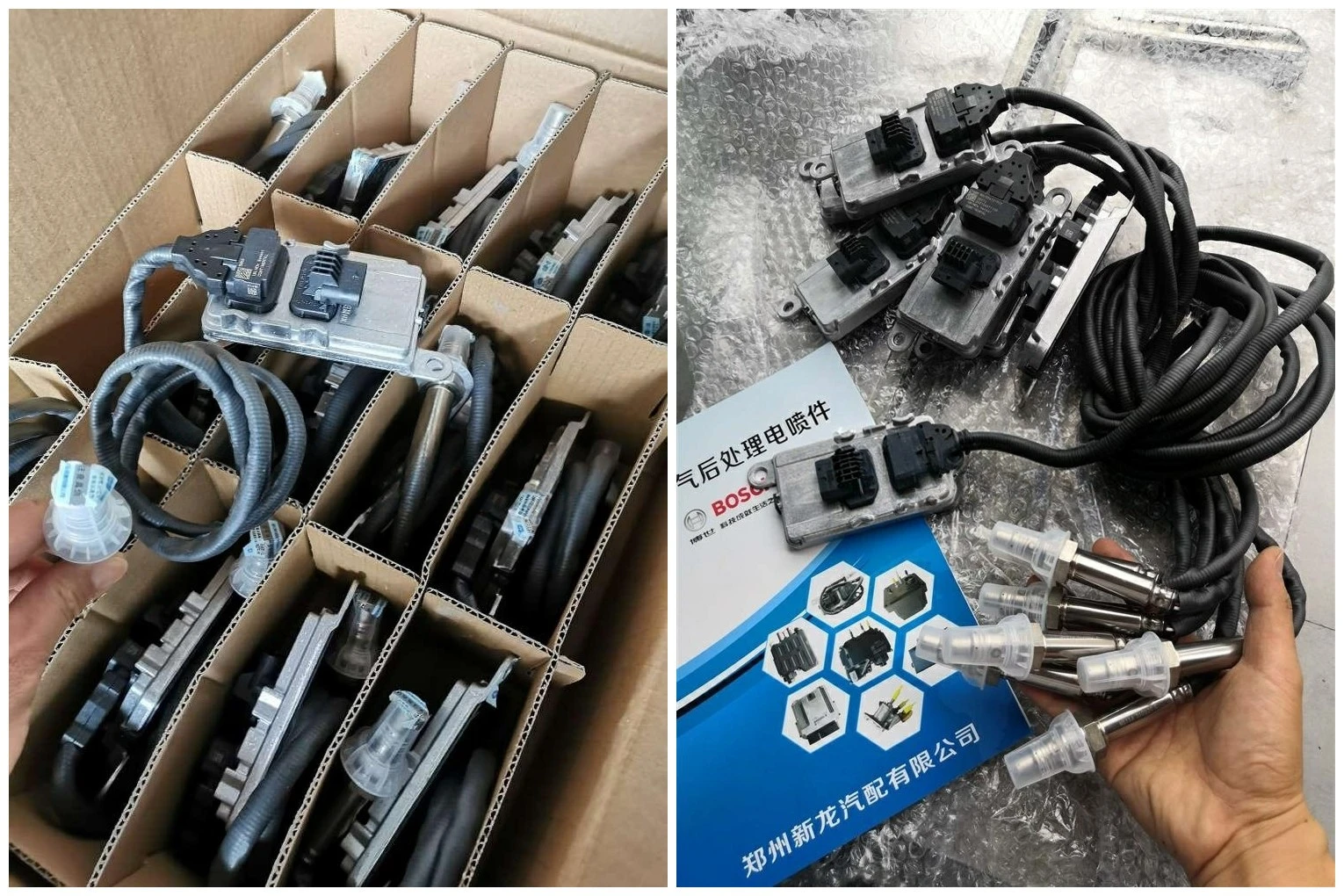

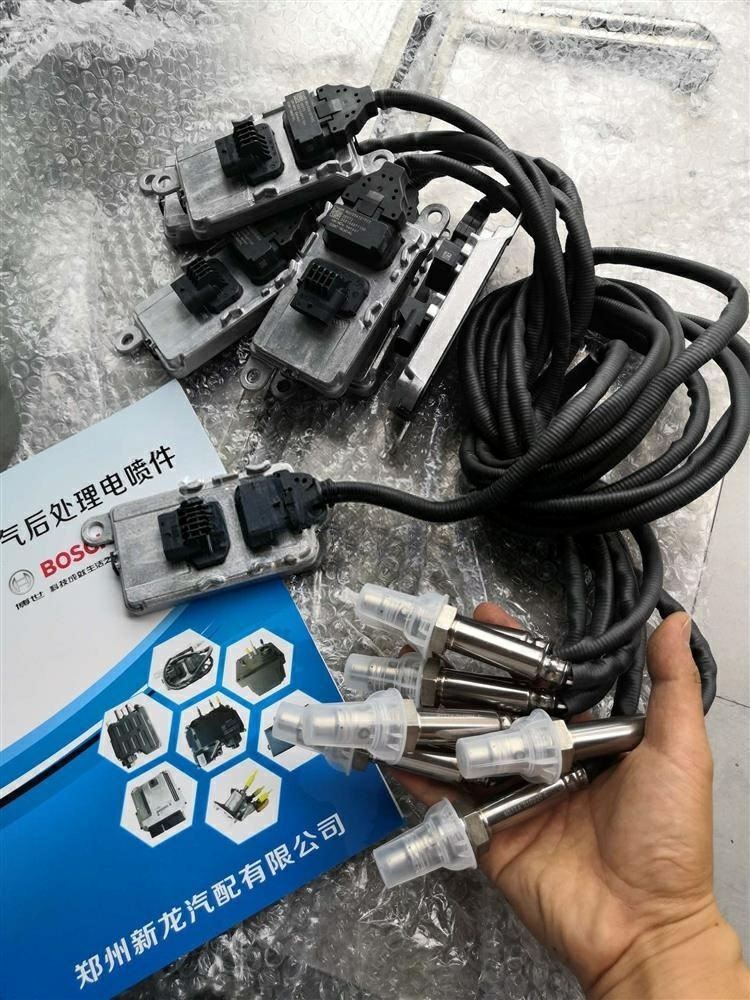

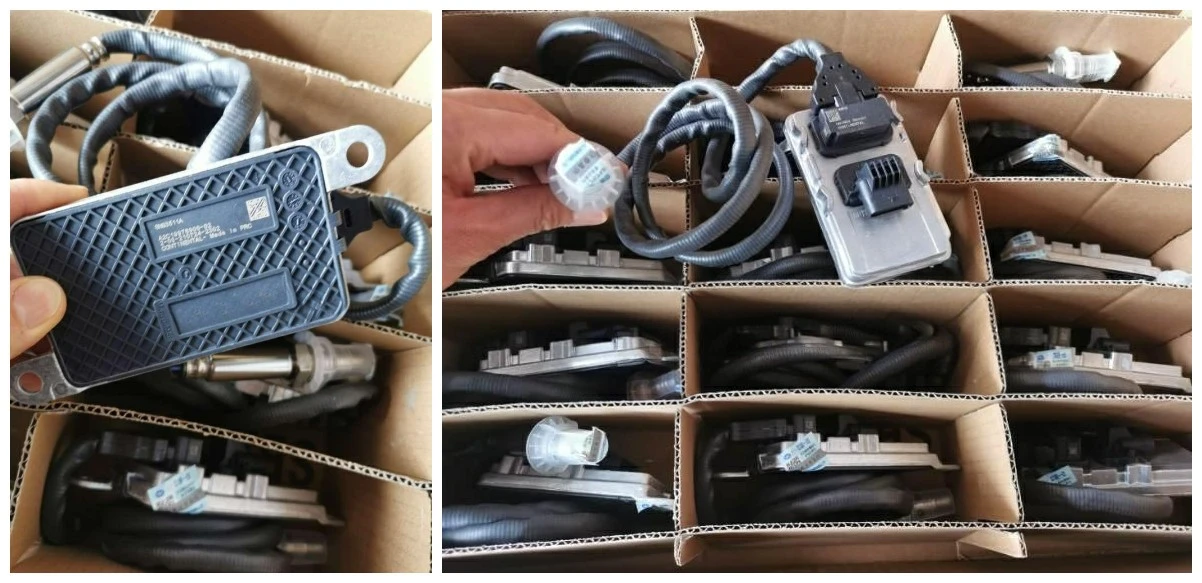

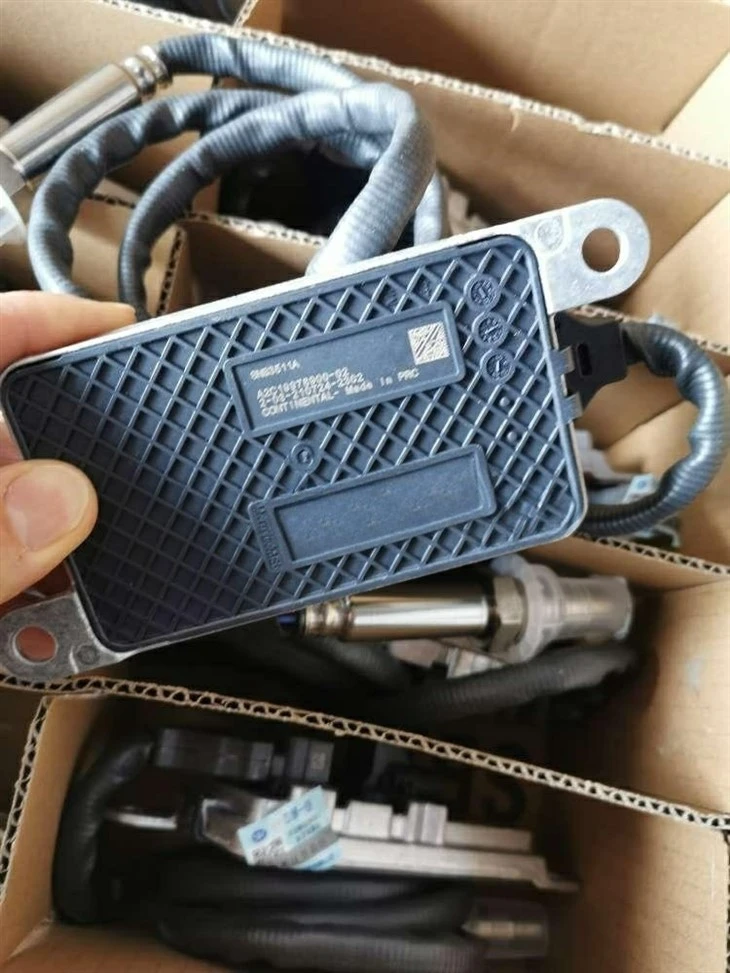

Nitrogen-oxygen sensor 3602510-518/0

The working principle of nitrogen oxide sensors mainly relies on electrochemical reactions or optical absorption mechanisms. The electrochemical type sensor detects the concentration of nitrogen oxides by generating an electric current signal proportional to the concentration through the oxidation-reduction reaction of NOx on the electrode surface. The optical type sensor utilizes the absorption characteristics of NOx to specific wavelengths of light, such as non-dispersive infrared method or ultraviolet fluorescence method, to measure the absorption and calculate the concentration. The main types of sensors include electrochemical type and optical type, which are respectively suitable for different application scenarios.

The nitrogen oxide sensor, as a crucial component in the after-treatment system of diesel light trucks, is responsible for monitoring the nitrogen oxide content in the exhaust gas. Its accuracy directly affects the emission performance and fuel economy of the engine. By understanding the working principle and installation location of the nitrogen oxide sensor, we can better grasp the operation status of the after-treatment system of diesel light trucks, thereby ensuring that the vehicles operate in an environmentally friendly and efficient manner.

When understanding the working principles of the front and rear nitrogen oxides sensors, we inevitably have to come into contact with their circuits. These two sensors have significant differences in their circuits, which determine their different functions and characteristics in the system.

Both the front and rear nitrogen oxides sensors have five pins. They are: two wires for CAN communication, one power wire, one grounding wire, and one wire responsible for the up-down switch (or address selection switch). These sensors transmit information to the ECU through the CAN bus, where CANH and CANL represent the positive and negative poles of the communication wire.
