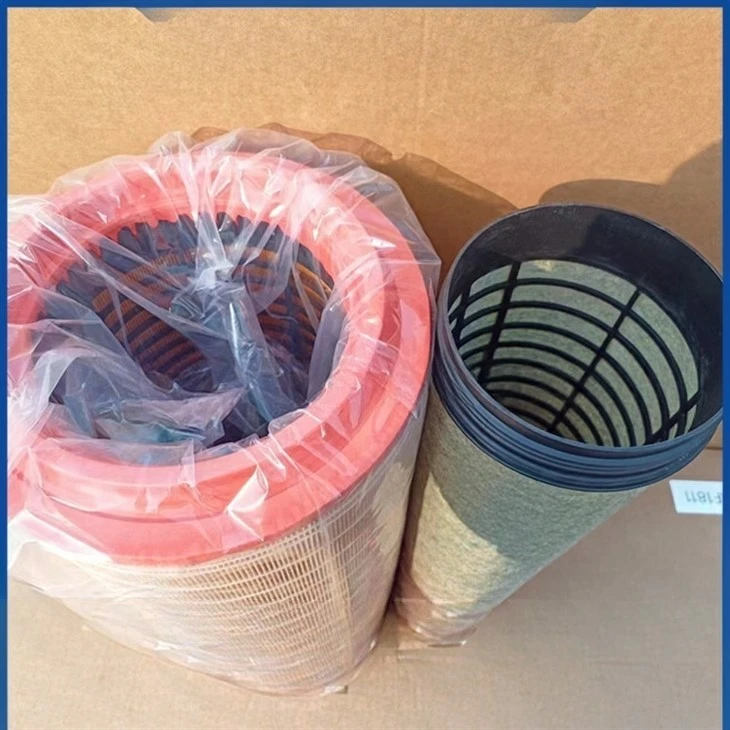

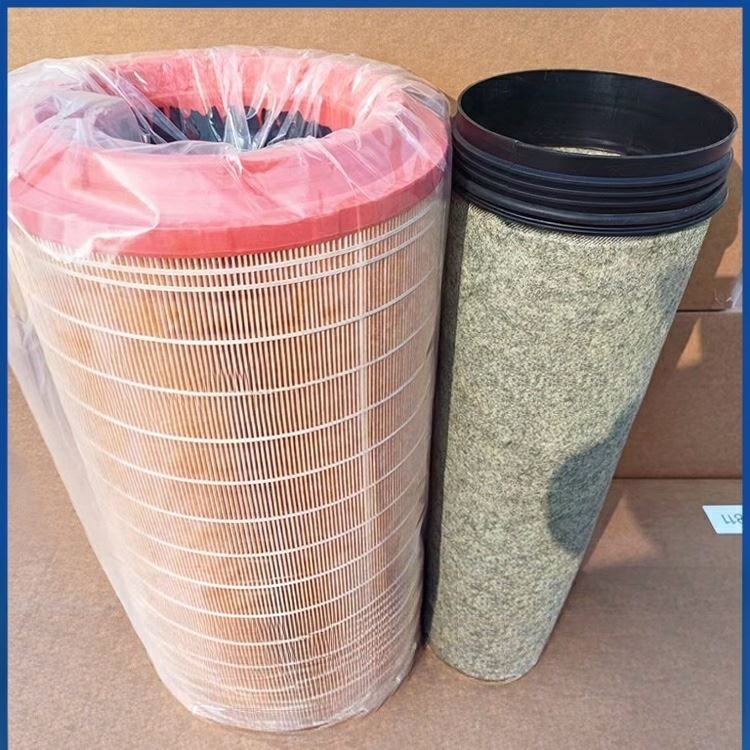

Air Filter 1109070-1856-C00/A

The compressed air imported from the outside is introduced into the deflector plate. The deflector plate is equipped with evenly distributed inclined teeth similar to fan blades, which force the high-speed flowing compressed air to generate intense rotation along the tangent direction of the teeth. The liquid water oil and larger impurities mixed in the air are separated under the strong centrifugal force and are discharged onto the inner wall of the water cup and to the bottom of the cup. The compressed air that has removed the liquid water oil and larger impurities is further filtered by the filter element to remove tiny solid particles. Then, it is output as clean compressed air through the outlet. The umbrella-shaped water-diverting plate (5) divides the water cup into two parts, with the lower part maintaining a pressure static zone, which can prevent the high-speed rotating airflow from sucking up the water oil at the bottom of the cup. The water oil accumulated at the bottom of the cup is discharged through the drainage valve, and the air filter must be installed vertically downward towards the water cup.

Features

[1] The inner cavity of the filter housing is treated with anodizing, while the outer shell is coated with epoxy resin dry powder.

[2] The fibers in the equipment have a small diameter and a smooth surface.

[3] The filter element employs a special leak-proof technology to ensure the filtration effect.

[4] It can effectively filter solid impurities and oil mist, and quickly remove the oil mist.

[5] The filter element is made of imported borosilicate glass fibers.
