OE Part Number: 1108917200022
• Part Name: Gear-select Cable / Selective Shift Cable
• Manufacturer: FOTON (Original Equipment of Foton)
• Applicable Vehicle Models: Foton Oumaokai, Oling Jitun TX/CTX/CTS light trucks, compatible with Wanliyang 5/6-speed automatic transmission
• Complementary Components:
Shift Selection: 1108917200022 (Left and Right Swing for Selecting Shift Position)
Shift Engagement: 1108917200021 (Push-Pull for Engaging Shift Position)
Manual Transmission for Light Trucks, two cables must be replaced in pairs. Replacing only one cable is likely to cause difficulty in shifting gears and gear disengagement.
Structural and physical parameters:
• Core: Galvanized steel strand, outer layer of PVC wear-resistant sheath, internal lubricating liner to reduce pulling resistance

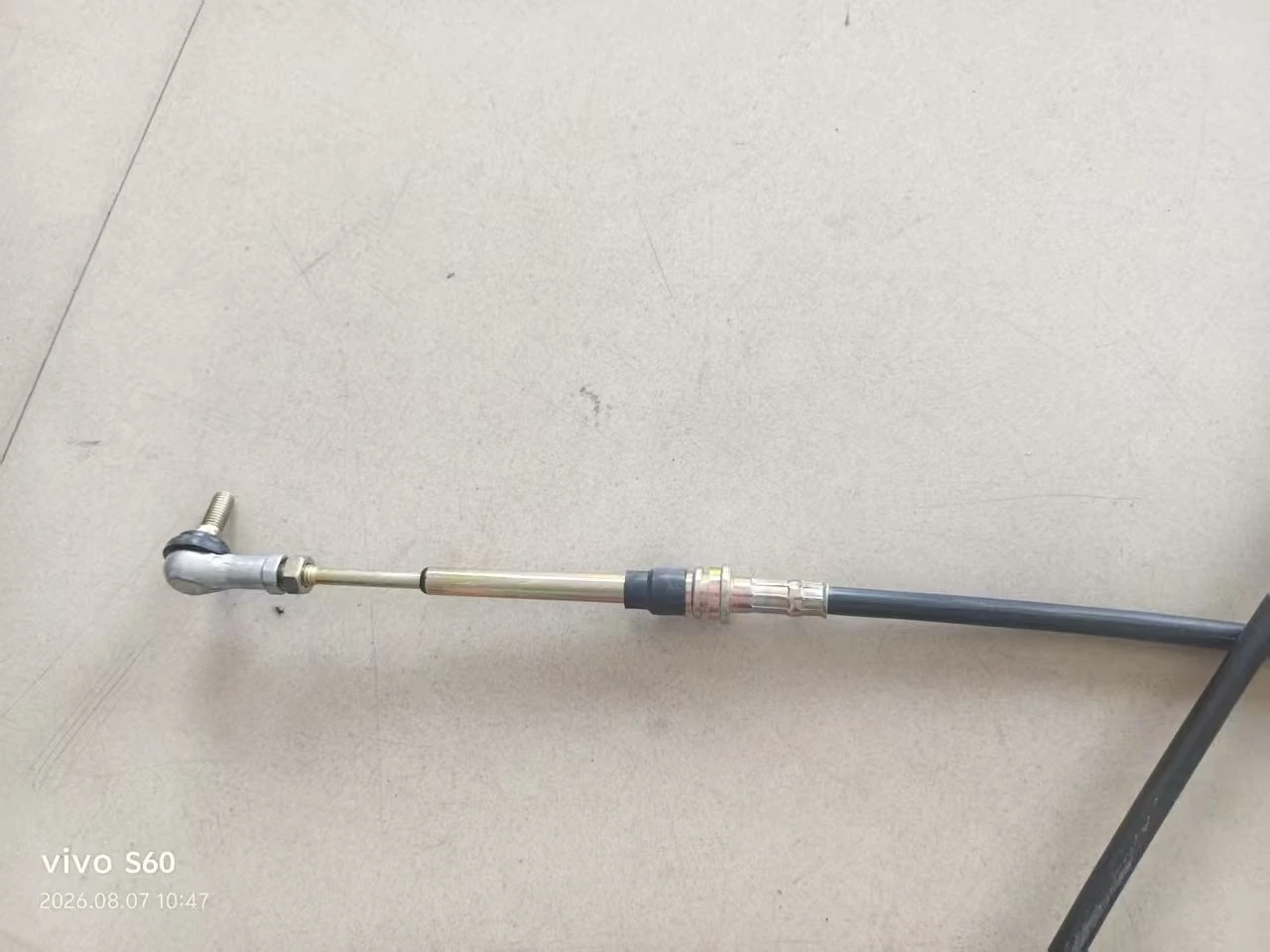

• End connections: One end is ball jointed, the other end is a adjustable threaded joint with a regulating nut, allowing for fine adjustment of the stroke
• Total length: Approximately 2250 - 2300mm
• Net weight per single strand: Approximately 0.75 - 0.85kg
• Operating temperature: -40℃ to +100℃
• Failure phenomena: Clutch engagement jamming, inability to select gears, broken pull wire, erratic gear shifting
One-stop Factory in China
Gear‑select Cable, OE NO.:1108917200022, For Foton Aumark / Ollin light truck, match WLY manual gearbox. Pair with shift cable OE 1108917200021.
FAQ
Q: What is the structure and material?
A: Galvanized steel wire inner core + high wear-resistant PVC outer sheath, built-in lubricating lining, flexible operation, anti-aging, high and low temperature resistant. With adjustable thread joint for precise stroke calibration.
Q: What are the common failure symptoms of old cable?
A: Gear selection stuck, unable to find gear position, loose gear lever, difficult shifting, cable jamming or fracture.
Q: Is it recommended to replace one or two cables together?
A: Suggest replacing select cable and shift cable as a set. Old and new cables have different stroke resistance, single replacement easily causes unsmooth shifting and gear deviation.
Q: Does this cable need adjustment after installation?
A: Yes. It comes with adjusting nuts. Fine-tune the stroke after installation to ensure accurate gear selection and smooth shifting.
