Working voltage: DC24V (suitable for diesel heavy trucks)
Rated speed: 3100 ± 200 r/min
Overall net weight: approximately 2.5kg
Air outlet form: Dual air duct symmetrical air supply, covering the front windshield + air outlets on both sides of the cab
Applicable environment: -40℃ to +85℃, resistant to dust in construction sites and humid environments along the coast
The cab control panel activates the fan speed setting, and 24V current is transmitted to the intermediate drive motor;

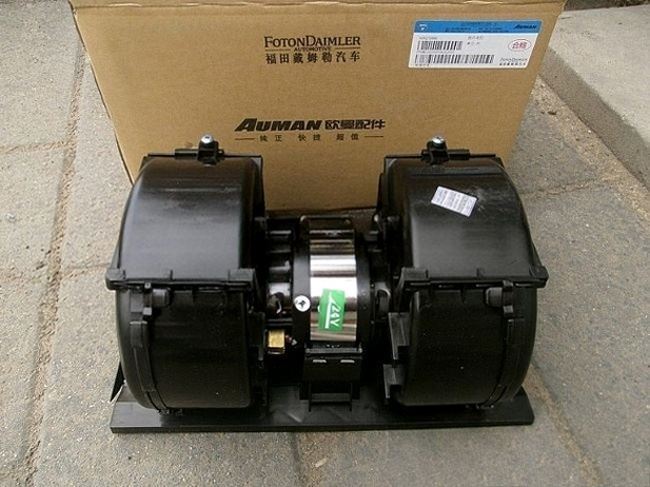

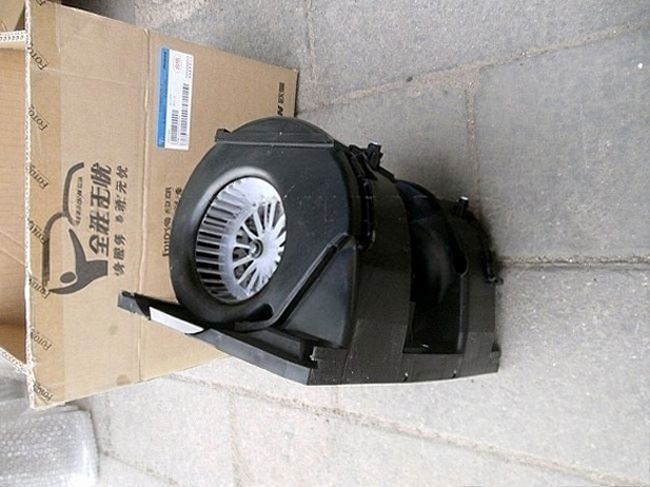

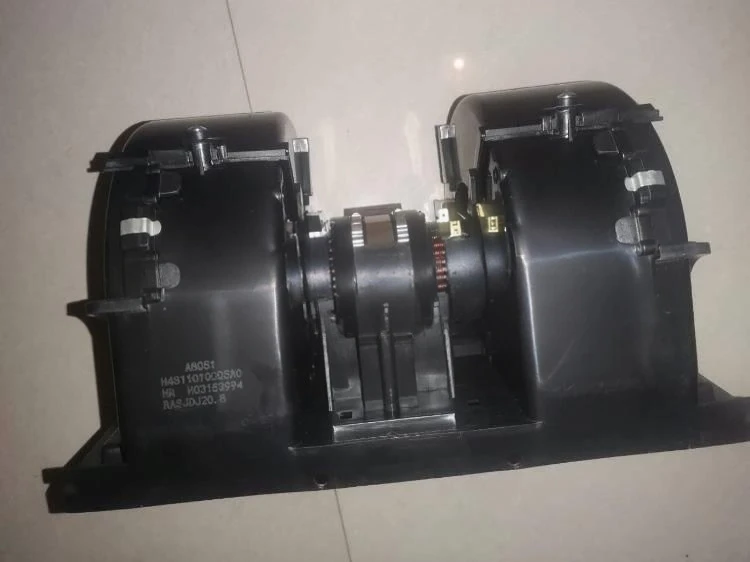

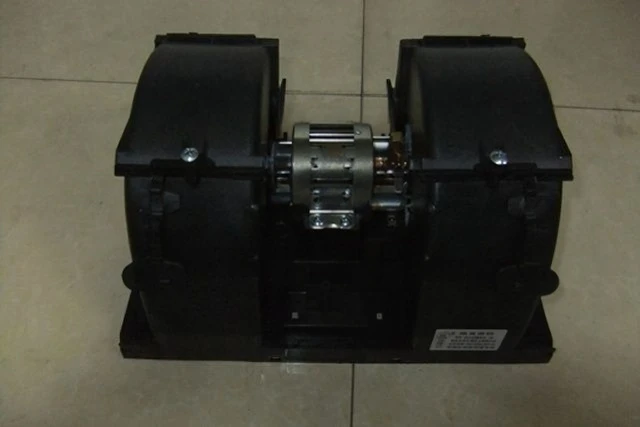

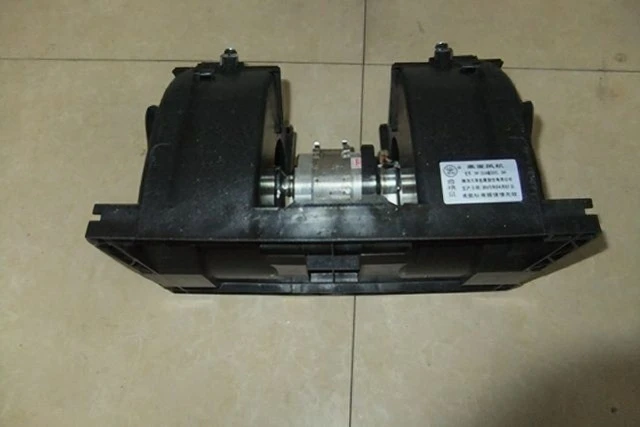

The motor synchronously drives the centrifugal impellers on both the left and right sides to rotate at high speed, drawing in air from inside or outside the vehicle;
The airflow passes through the heating water tank (for heating) or the evaporator (for cooling) to complete the temperature exchange;
The volute gathers the cold and hot air, and distributes it through the ducts to the front windshield defogger outlet, and the left and right side blowing outlets;
The speed control resistor changes the current size of the circuit to control the motor speed, achieving four-speed air volume adjustment.
Powerful Solutions For Business Growth
Compatible vehicle models: Foton Ouman GTL, EST, annual model ETX towing, dump, box-type cargo trucks
Engine: Weichai WP10/WP12/WP13, Cummins X12/X13 full series of models for both China V and China VI standards
Installation location: Inside the driver's cabin dashboard, below the evaporation box, between the front and rear seats
Material: ABS flame-retardant plastic, galvanized metal, PP plastic impeller, copper coil
Purpose: Drive the air to flow through the hot and cold water tanks, achieving ventilation, heating, cooling and defogging of the front windshield in the cab.
