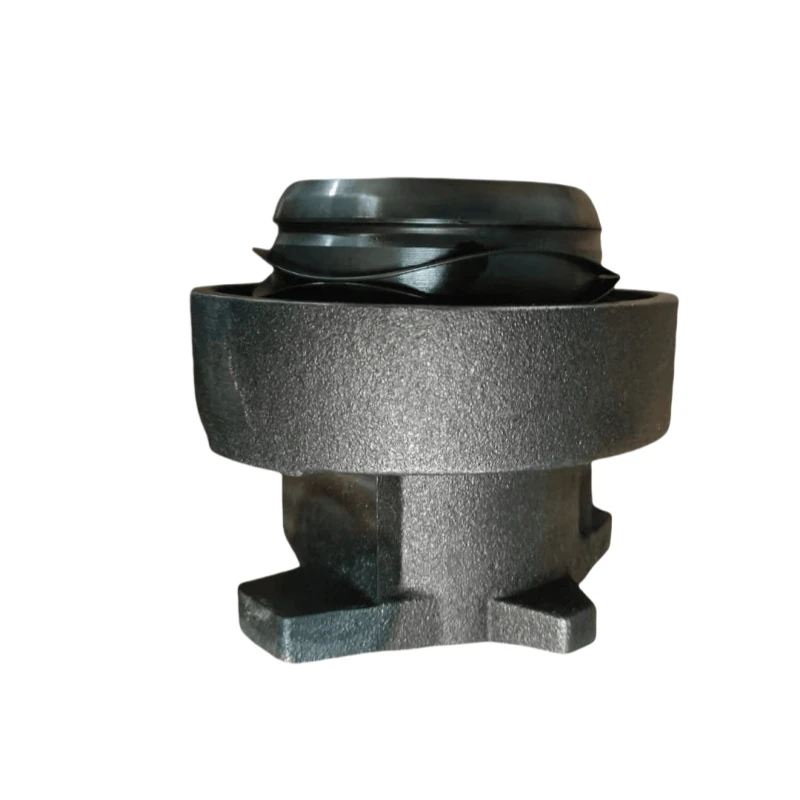

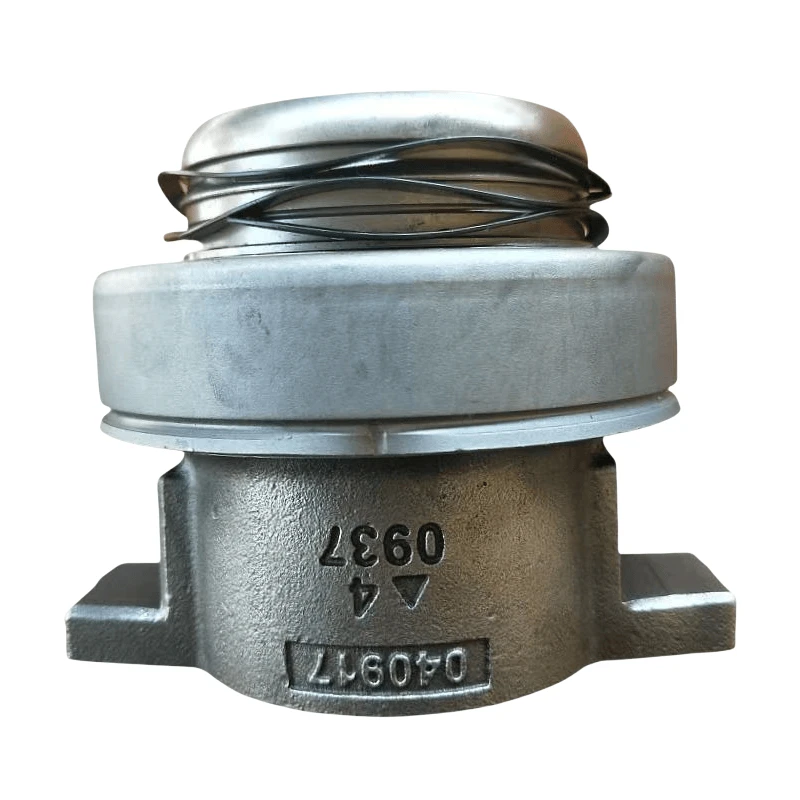

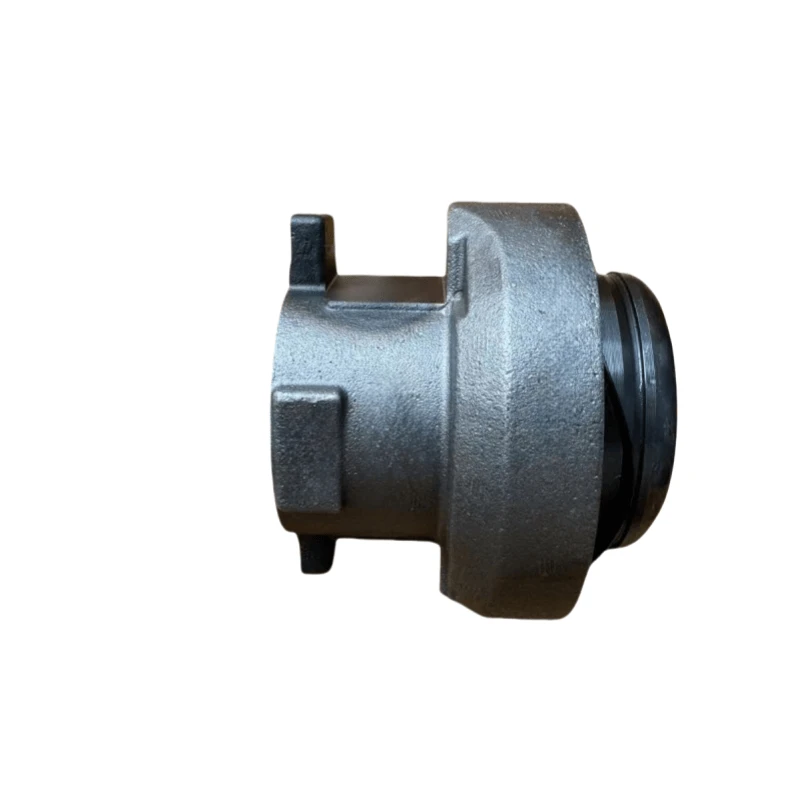

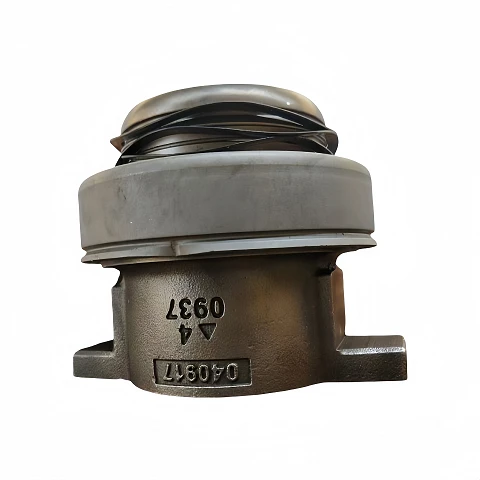

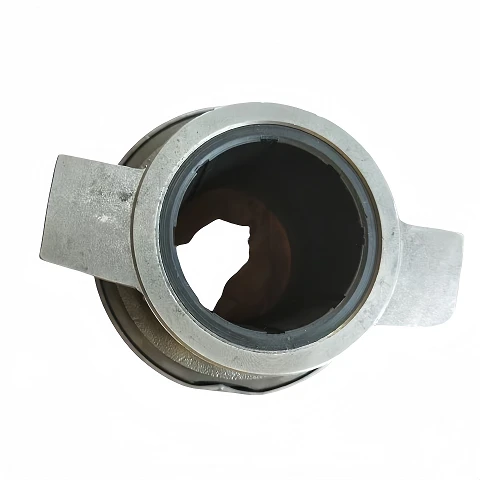

Clutch Release Bearing Assembly H0161060104A0

Clutch Release Bearing Assembly H0161060104A0

Pressure plate: H0161020108A0 (430 pull-type diaphragm pressure plate)
Clutch disc: H0161030118A0 (430 three-stage shock-absorbing driven disc)
Clutch booster: 1425316200002 (配套 430 pull-type pneumatic booster)
Separation bearing: H0161060104A0

Rolling unit of the bearing
Material: GCr15 bearing steel, hardened and wear-resistant angular contact ball bearing;
Double-layer high-temperature resistant skeleton oil seal, with long-lasting high-temperature lubricating grease inside, suitable for high-temperature conditions of the clutch;
Outer ring rotating structure, adhering to the separation finger of the pressure plate, with no frictional jamming during rotation.
Self-aligning wave-shaped spring (inner side of the bearing outer ring)
Multi-layer wave-shaped elastic steel sheet, automatically compensating for the deviation of the non-coincidence of the transmission shaft and the pressure plate, avoiding unilateral wear and significantly extending the service life of the bearing.
Cast iron sliding seat body (middle black housing)
Cast iron integrated casting, surface sandblasted for rust prevention; inner hole with wear-resistant composite liner, can smoothly slide on the reciprocating shaft sleeve of the transmission shaft.
Double-ear push-pull bracket (prominent ear blocks on both sides of the base)
Two symmetrical force-bearing ears, directly inserted into the slot of the push rod of the clutch booster, the booster pulls the ears forward and backward, driving the entire bearing to move axially.
