Original part number: 3697750 (Alternative part number 3696424, universal interchange)
Standard name: Exhaust Manifold Sealing Gasket
Applicable vehicle models: Foton Cummins ISG11, ISG12, QSG12, X11/X12 heavy-duty diesel engines
Matching complete vehicles: O-MAN GTL/EST heavy trucks, Foton Daimler full range of ISG powertrain models, and also compatible with some engineering generator sets simultaneously

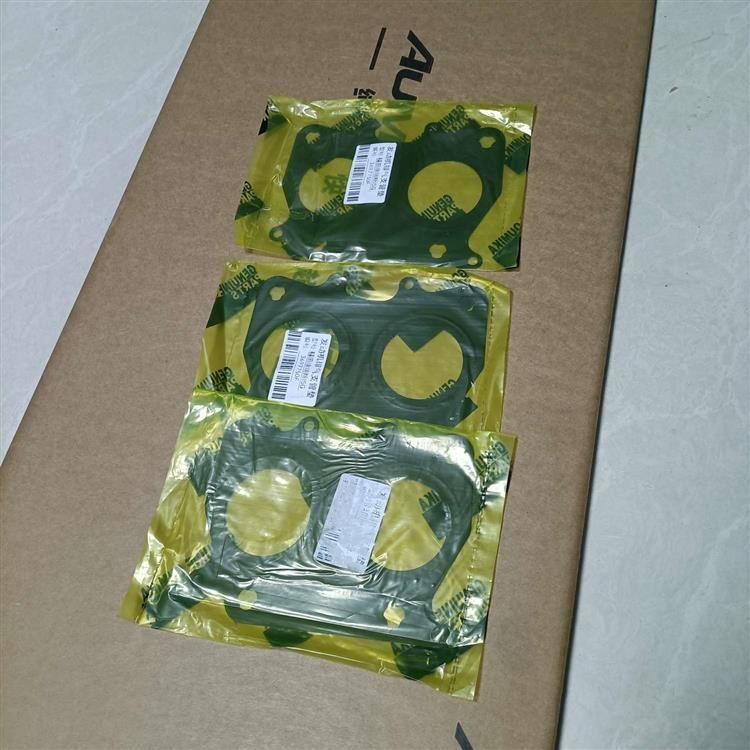

Net weight: Approximately 27g, single piece in independent packaging

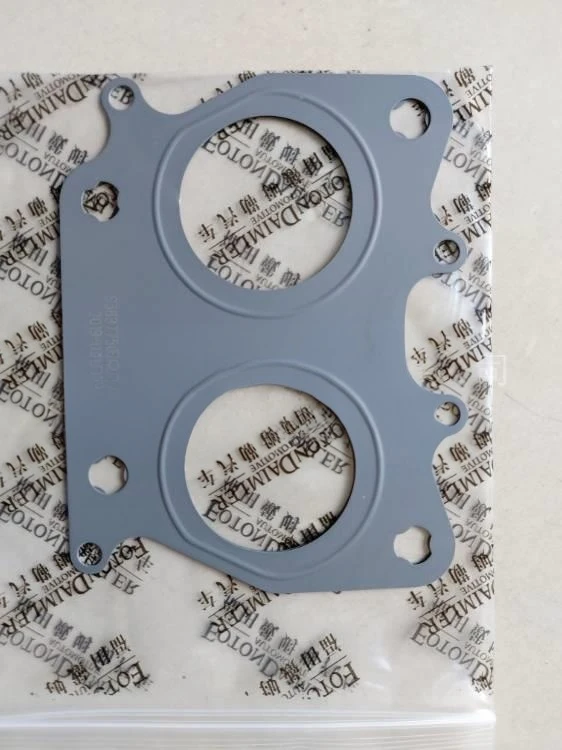

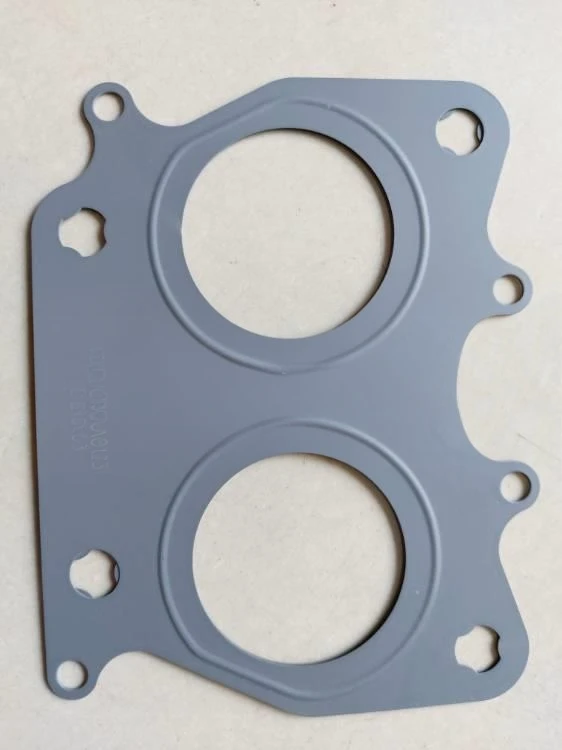

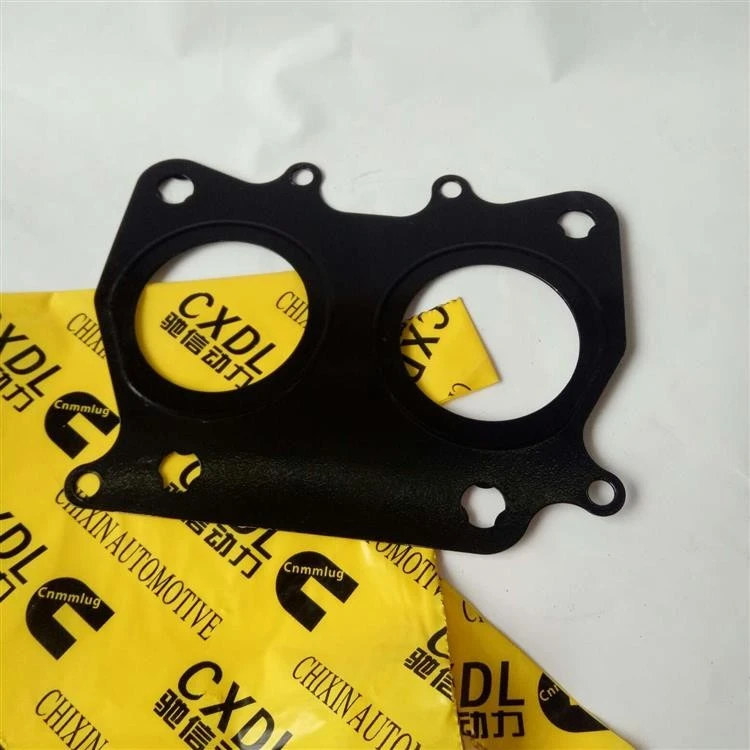

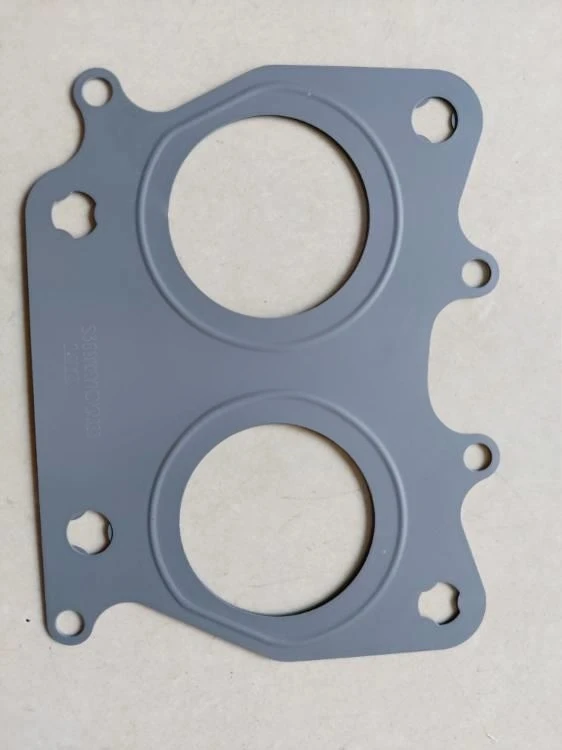

Panel outline: Irregular polygon, two large circular exhaust holes on both sides that are symmetrical, corresponding to the exhaust channels of the two cylinders of the engine
Installation holes: A total of 8 bolt-fixed holes (large round holes at the four corners + auxiliary positioning holes on the side), the hole positions precisely match the installation surface of the ISG exhaust manifold flange
Thickness: Standard 0.8mm multi-layer composite structure, the surface is flat and has high flatness, without warping or deformation
Marking: The body of the gasket is stamped and engraved with the part number 3697750, facilitating sorting and identification
One-stop Cosmetic Tube Factory in China
Buffer the thermal deformation caused by high temperatures, eliminate air leakage and abnormal noises resulting from hard metal contact
Isolate the exhaust heat, protect the surrounding wiring harnesses and pipelines, and reduce the risk of high-temperature in the engine compartment
