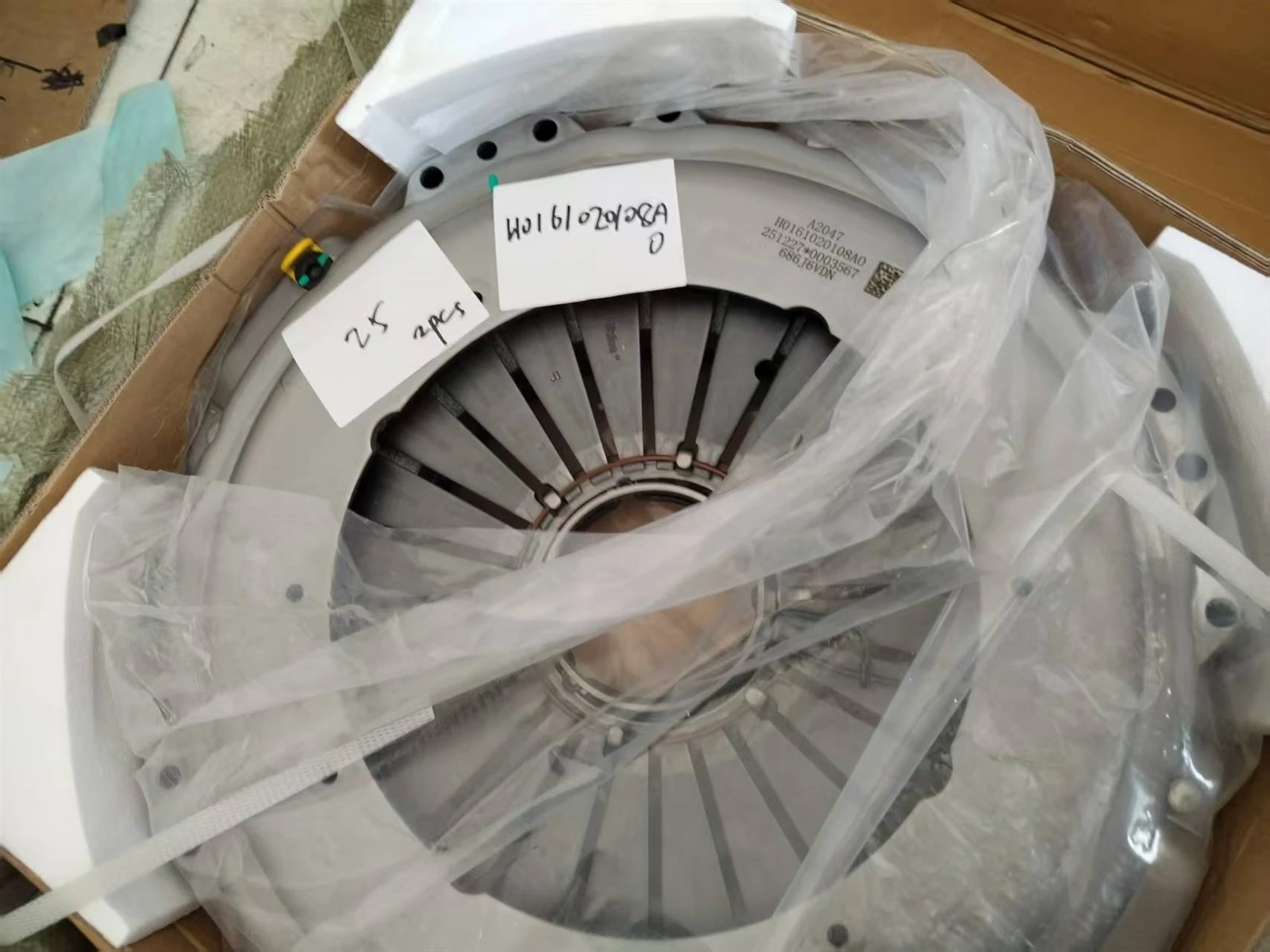

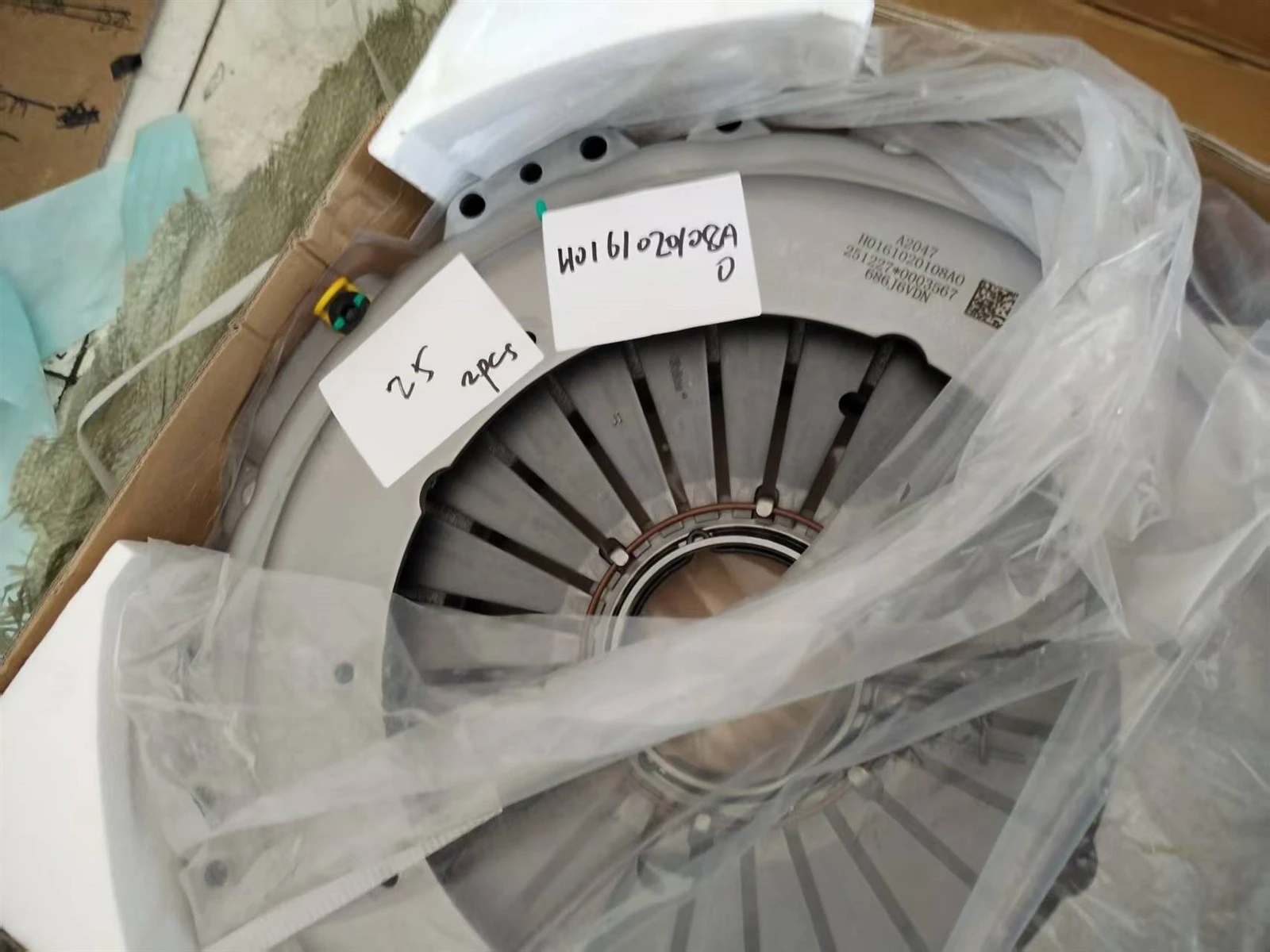

Foton Auman Parts Heavy Truck Spare Parts Transmission Parts H0161020108A0 Clutch Pressure Plate

Basic parameters
1. Friction outer diameter: Φ430 mm, pull-type diaphragm spring structure
2. Flywheel mounting holes: 12 fixed bolt holes
3. Net weight: Approximately 32-34 kg, gross weight approximately 37 kg
4. Maximum transmission torque: 2200 N·m, designed for heavy load and climbing conditions
5. Installation: Bolt fixed on the end face of the engine flywheel; pull-type disengagement, matched with pull-type disengagement bearing, cannot be used for push-type clutch housing

Component composition:
1. Clutch cover assembly (cast iron housing)
2. Diaphragm spring (separation lever): When depressing the clutch, the separation bearing pulls the diaphragm spring to achieve separation
3. Pressure plate body (wear-resistant cast iron friction working surface)
4. Transmission plate: Connects the clutch cover and the pressure plate, transmitting torque
The assembly cannot be disassembled for maintenance; if the diaphragm spring is worn out or the working surface of the pressure plate is abraded, the entire assembly should be replaced directly.

Part Function
The diaphragm spring provides the clamping force, clamping the clutch driven disc, and transmitting the engine torque to the gearbox; when depressing the clutch, the pull-type release bearing pulls the diaphragm spring backward, releasing the pressure plate and cutting off the power, thus enabling gear shifting.
