Matching pressure plate: H0161020108A0
Matching clutch booster: 1425316200002

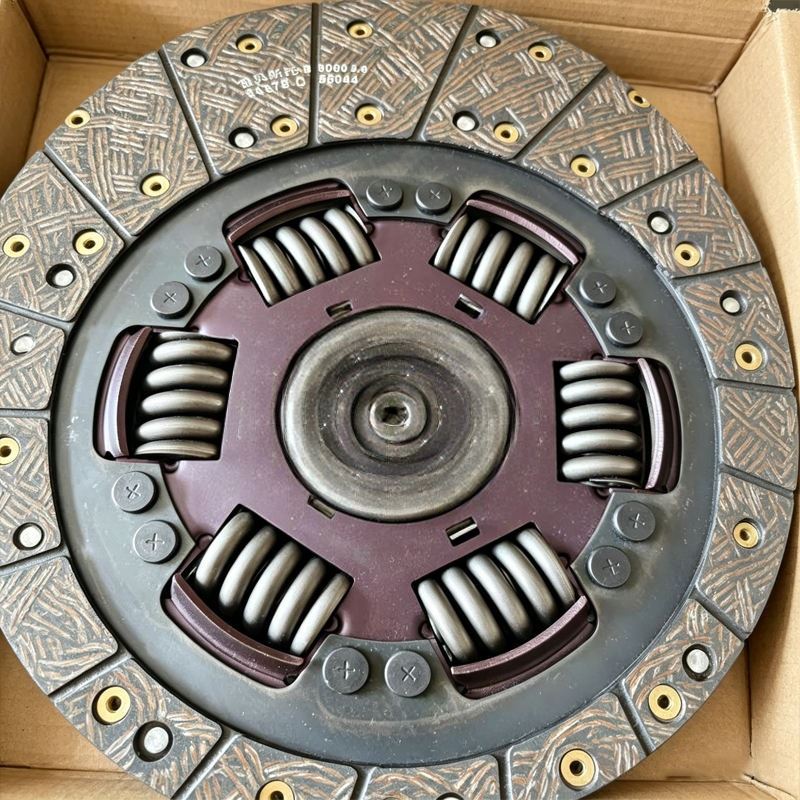

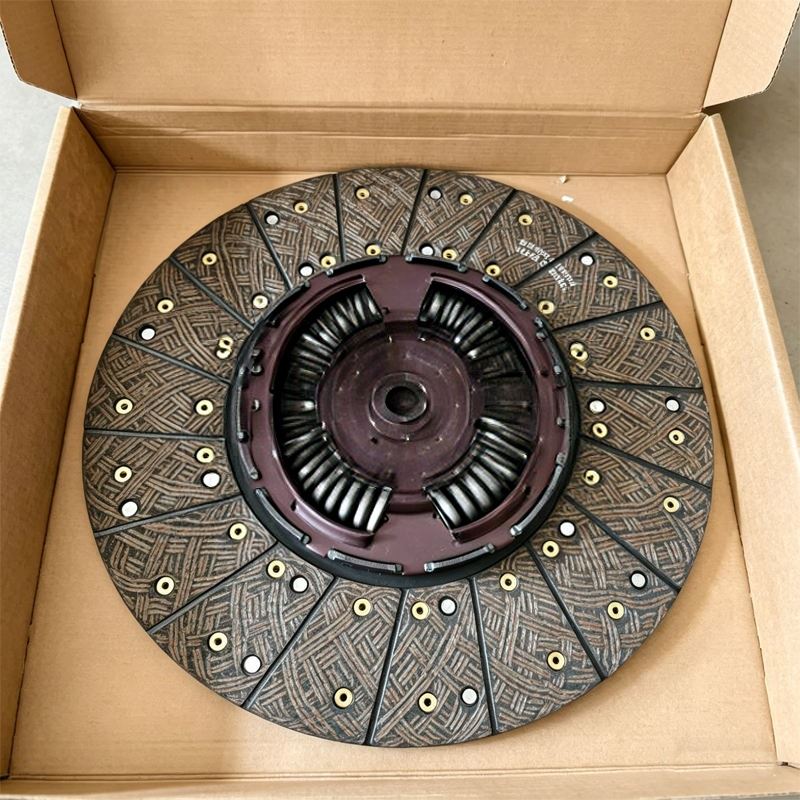

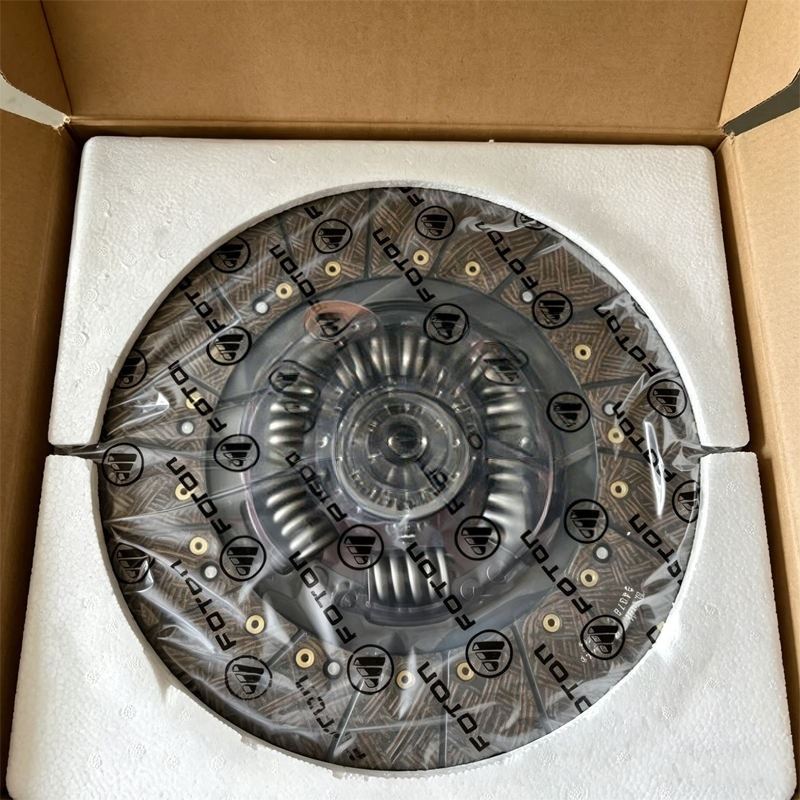

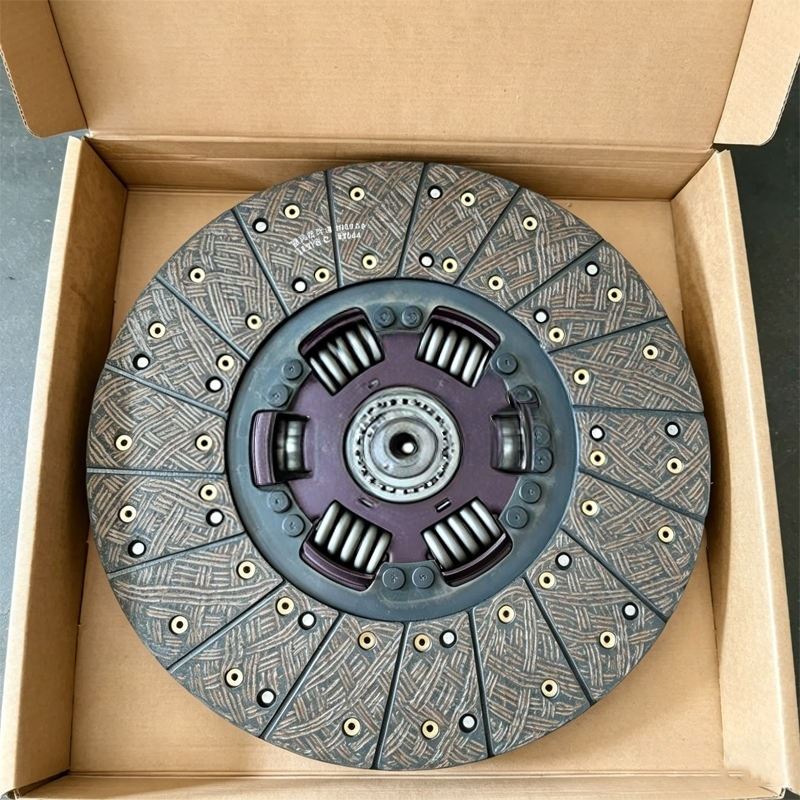

Official standard name: 430mm pull-type three-stage shock-absorbing clutch driven disc assembly
Outer diameter of friction plate: Φ430mm (commonly referred to as 430 clutch plate in the industry)

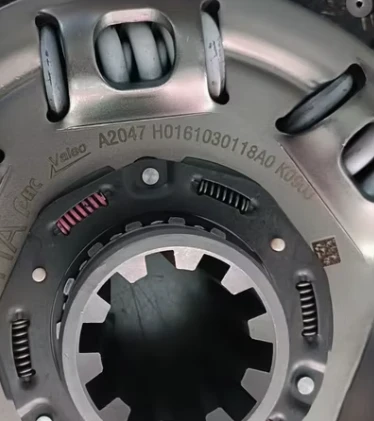

Keyway specification: 50.8mm large diameter, 10 teeth (standard large keyway for Faserte 12-speed transmission)
Thickness of friction plate: 8.5mm on one side, total thickness of wear-resistant layer on both sides is 17mm
Shock absorption structure: six spring three-level shock absorption (main shock absorption + pre-shock absorption)
Adapting pressure plate form: push-type diaphragm spring pressure plate
Rated transmission torque: 2200N・m, suitable for 400–510 horsepower high-torque engines
Net weight of single plate: approximately 13.2kg
Non-asbestos friction pads (double-sided)
Material: Imported high-maintenance non-asbestos composite material, friction coefficient 0.42
Characteristics: High temperature resistance, not prone to slipping, less likely to burn the pads during braking/climbing, specially designed for heavy-load and standard load applications
Surface with grooves for heat dissipation, faster heat dissipation in frequent conditions, prolongs service life
Symmetrical arrangement on both sides, respectively fitting the working surfaces of the engine flywheel and clutch pressure plate
Six thickened and shock-absorbing springs are divided into three levels for segmented buffering:
Level 1 pre-shock absorption: Absorbs minor vibrations from the engine at idle and low speeds, with no shaking inside the vehicle;
Level 2 main shock absorption: Buffers speed fluctuations during normal driving;
Level 3 heavy-load shock absorption: Buffers large torque impacts during climbing and heavy-load starting;
Foton Auman GTL, EST, Galaxy Traction / Dump / Cargo Trucks
Engine horsepower: 400/430/460/490/510 horsepower
Weichai WP13, Cummins X13 large-displacement engines
Matching transmission: Fatas 12JSDX240T full series of 12-speed manual transmissions
Final drive compatibility: 457 final drive, MAN 13-ton final drive for standard towing vehicles
