Clutch Pressure Plate Assembly / 430mm Pull Type Clutch Cover
Clutch Pressure Plate Assembly / 430mm Pull Type Clutch Cover
Clutch Pressure Plate Assembly / 430mm Pull Type Clutch Cover
Original factory main body: Foton brand genuine parts from BAIC Foton, specifically for Oumann GTL/EST trucks

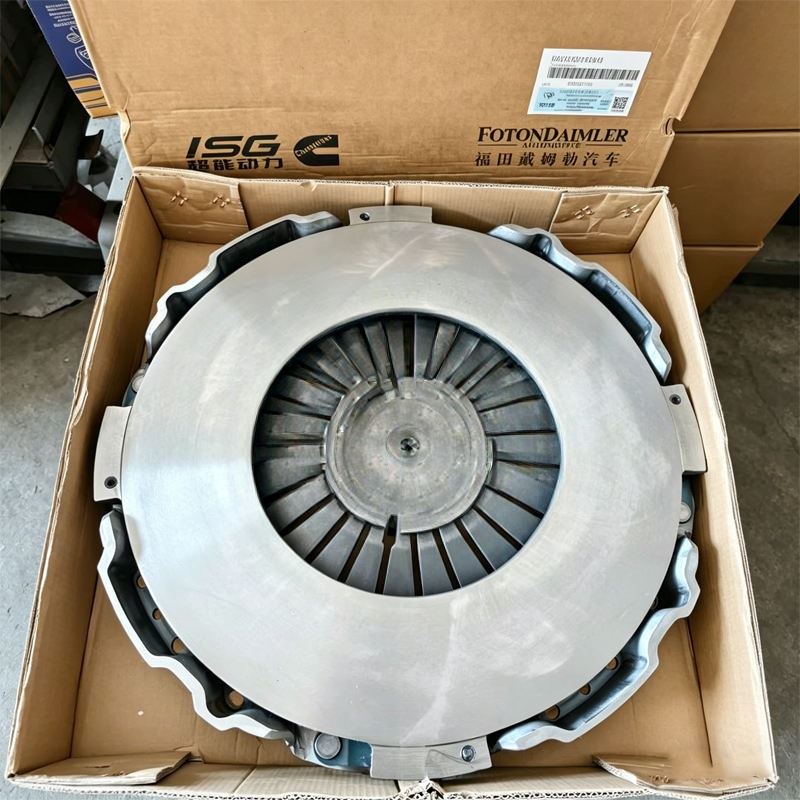

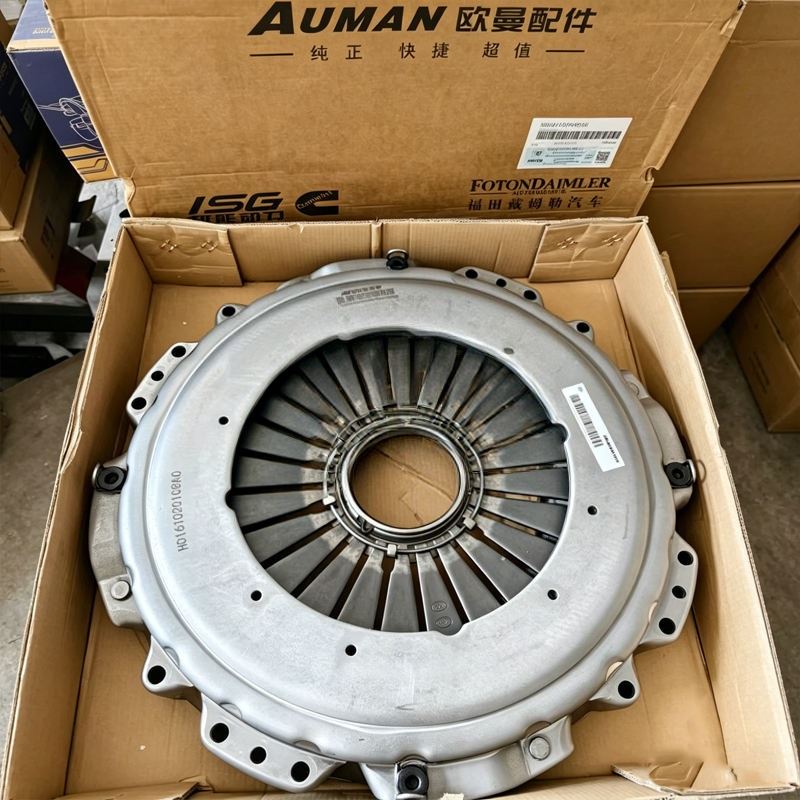

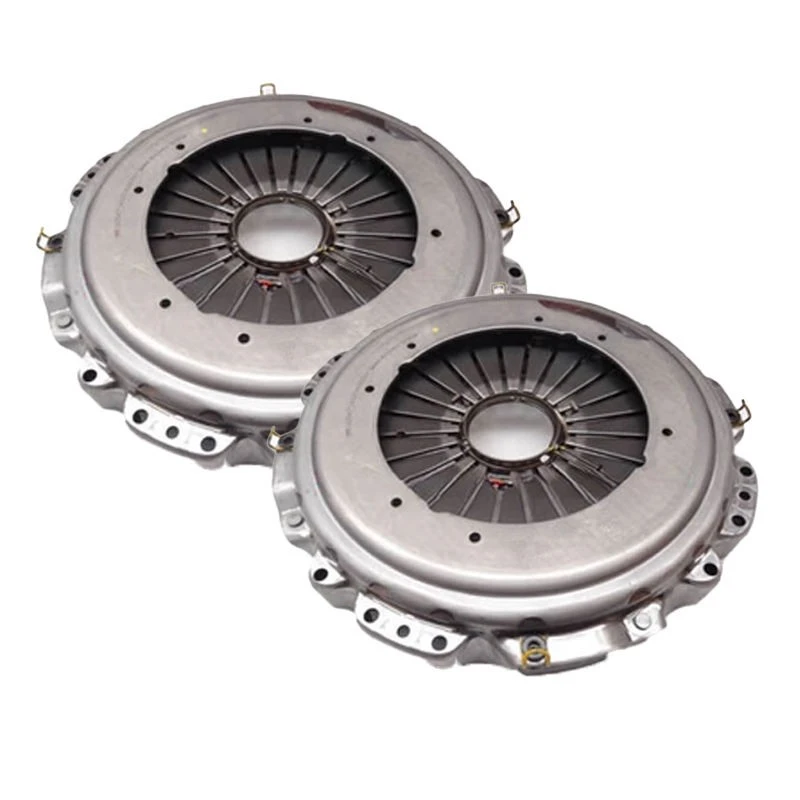

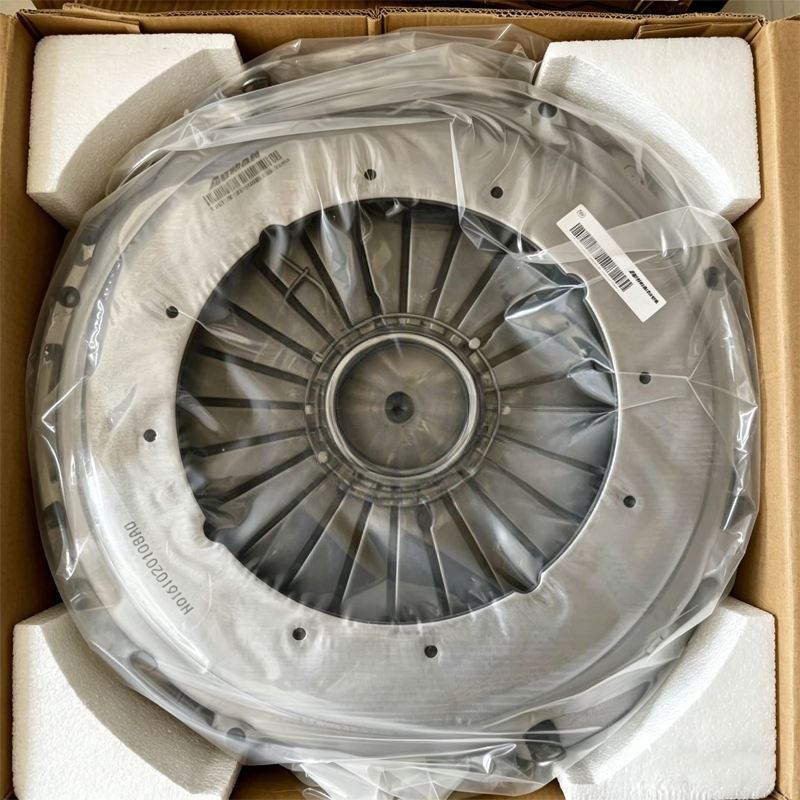

Full official name: Clutch cover and pressure plate assembly (430 pull-type diaphragm spring pressure plate)
Matching corresponding part number
Matching clutch plate: H0161030118A0 (the same set of original three-piece kit)
Series distinction: H0161020107A0 is the old short-stroke type, H0161020108A0 is the new long-stroke type for Euro V/Euro VI standards
Outer diameter of the friction disc: Φ430mm (commonly known in the industry as 430 pressure disc)
Drive method: Pull-type separation (the separation bearing pulls the diaphragm claw inward, compatible with Faiste 12-speed manual transmission)
Diaphragm spring: Integrated high-strength conical diaphragm, 36 separation finger claws, soft pedal operation resistance
Installation fixation: 12 M11 installation bolts on the outer ring, flange outer diameter Φ475mm
Driven disc compatibility: Matching spline 50.8 large hole, 10 teeth three-stage shock-absorbing clutch plate
Powerful Solutions For Business Growth
Operating state (normal driving)
The diaphragm spring expands outward, pressing the cast iron pressure plate tightly against the clutch disc. The clutch disc is sandwiched between the flywheel and the pressure plate. The engine power is transmitted to the gearbox through friction.
Disengaged state (pressing the clutch to shift gears)
The clutch actuator pushes the release bearing to pull the inner claw of the diaphragm spring inward. The spring pivot flips and the pressure plate retreats, releasing the clutch disc. The engine and gearbox power are disconnected, allowing for smooth gear shifting.
Compatible vehicles: Foton Auman GTL, EST, Galaxy series of trailers / dump trucks / cargo trucks
Horsepower range: 400–510 horsepower (Weichai WP13, Cummins X13 engines)
Matching transmission: Fatastar 12JSDX240T, 12-speed full series manual transmission
